We're professional automatic pomegranate peeler manufacturers and suppliers in China, to buy or wholesale pomegranate peeling machine from our factory. For quotation or if you have any questions, contact us now for customized machine to peel pomegranate and price.

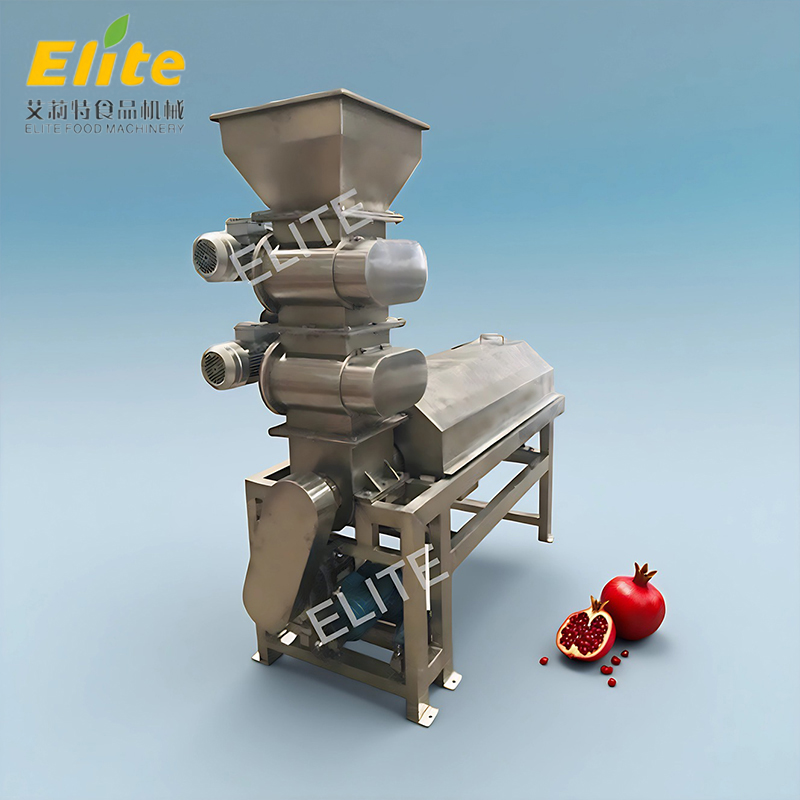

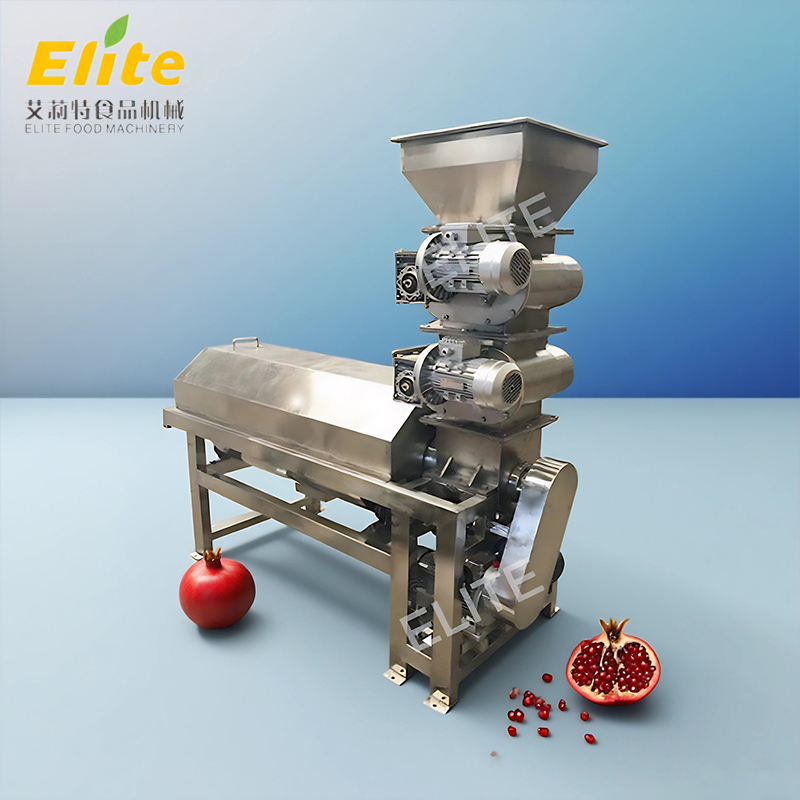

Pomegranate Peeling And Separating Machine enters the upper crushing device from the feed hopper. The upper crushing device squeezes the pomegranate open, and the lower crushing device squeezes the pomegranate again. The pomegranate after the two-stage squeezing has basically separated the skin and seeds, and falls into the separation device. The seeds fall from the sieve hole, the skin is discharged from the tail, and the seeds and juice are pumped to the next process with a separate screw pump.
The material enters the cavity through the crushing device, scraper and sieve mesh are used to achieve the separation effect of pomegranate pulp and skin.

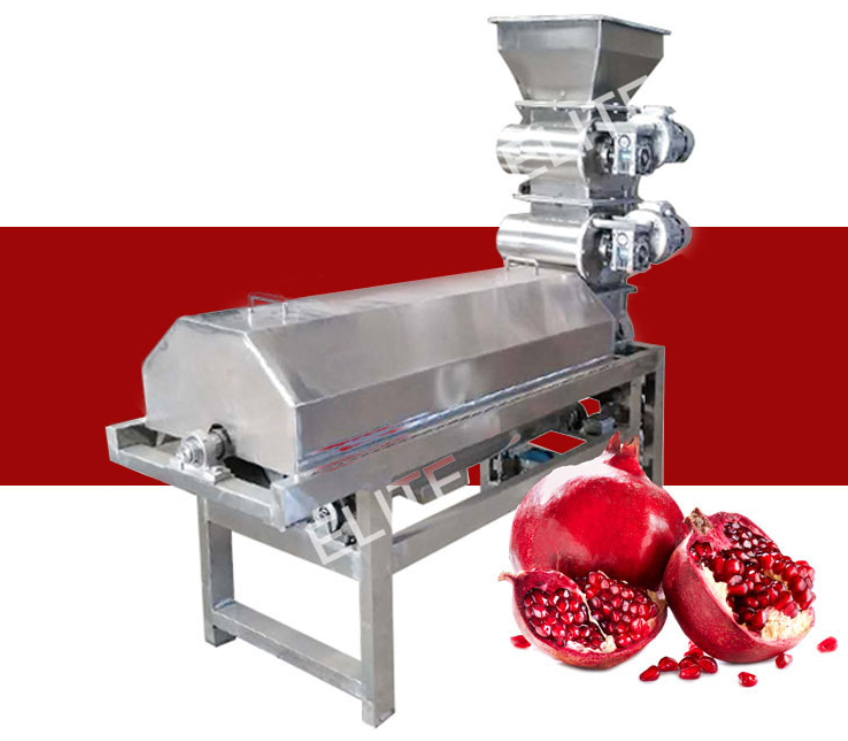

Pomegranate peeling and separating machine is a pomegranate peeling and separating machine designed and manufactured by our company with the introduction of foreign advanced technology. It has the characteristics of novel structure, high efficiency, energy saving and high production efficiency. Pomegranate Peeling Machine Skin & Seed Separator can be used for breaking and separating hard fruits such as pomegranate and passion fruit.
Model | Capacity(kg/h) | Power (kw) | Dimension(mm) |
BFJ-2 | 1-2 | 2.24 | 2100×850x1900 |
BFJ-5 | 4-6 | 12.2 | 3000×1100×2300 |

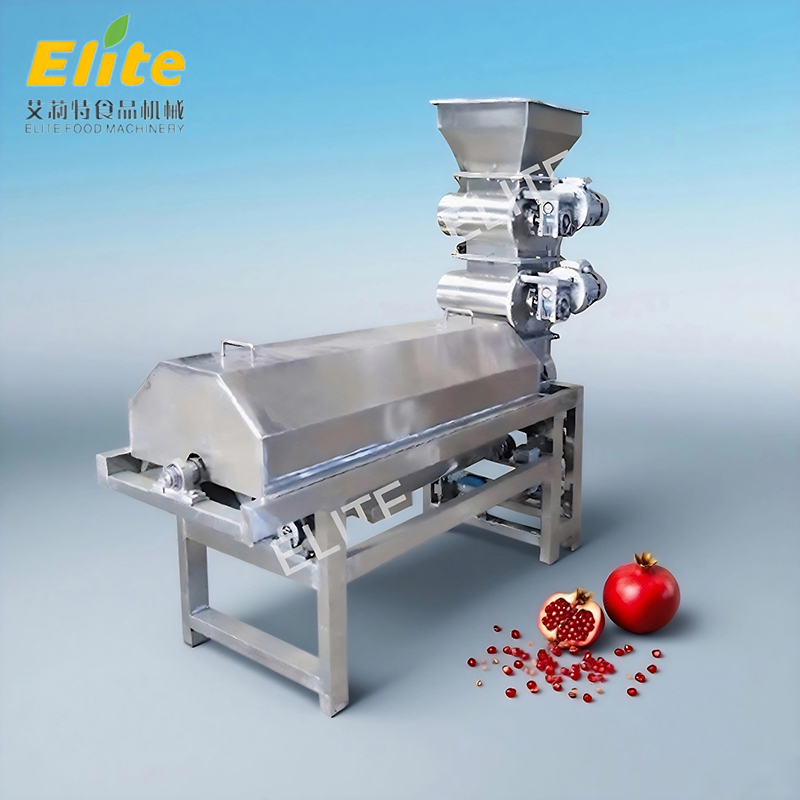

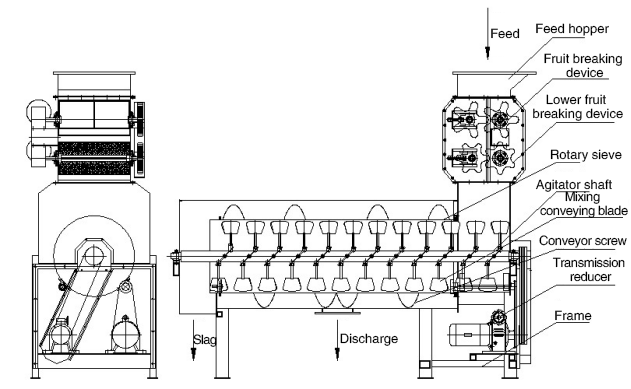

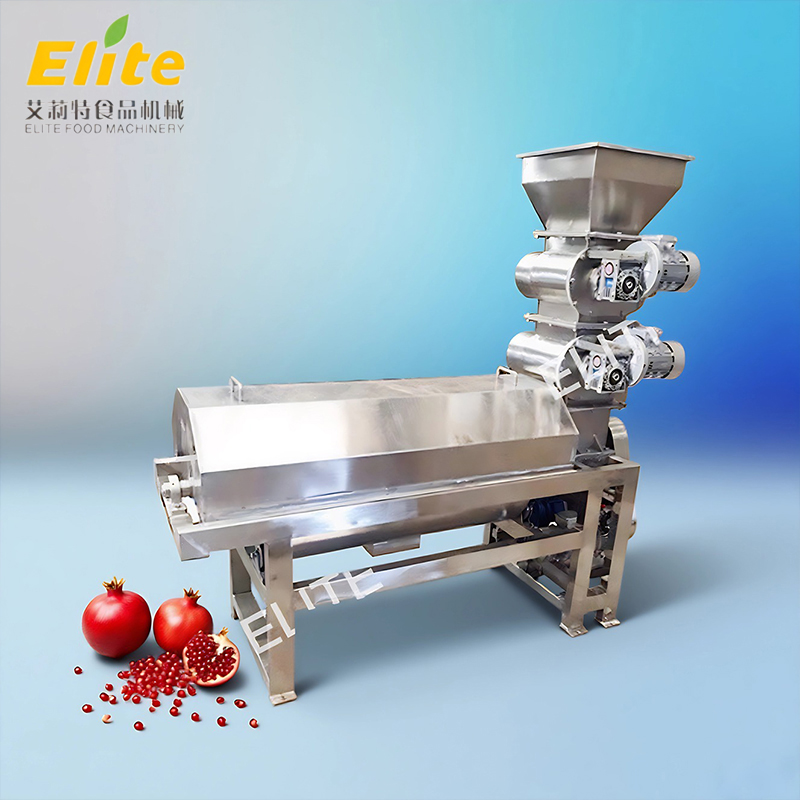

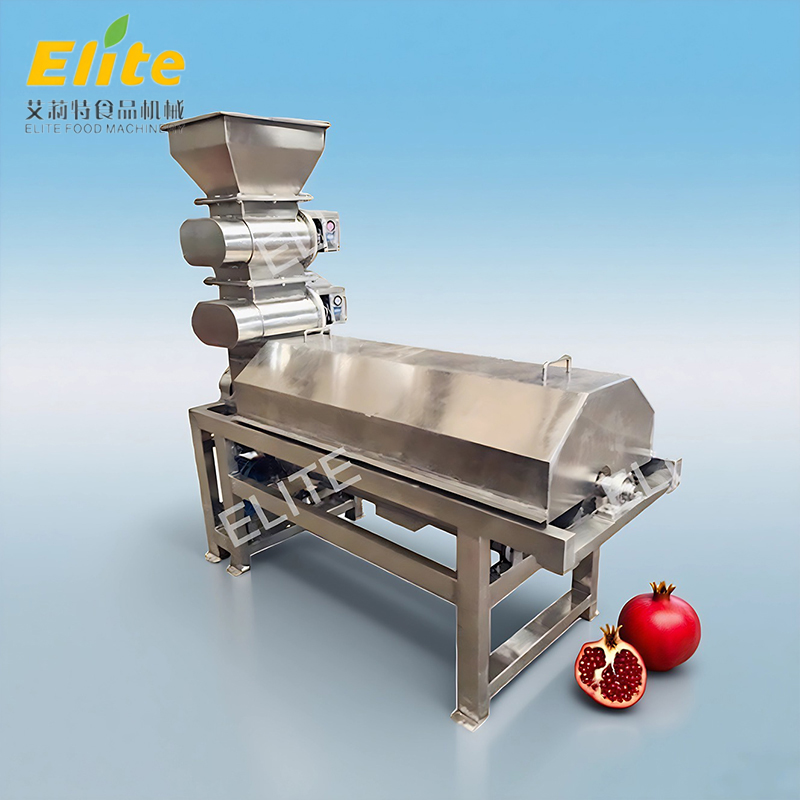

The pomegranate peeling and separating machine is mainly composed of the feed hopper, the upper fruit breaking device, the lower fruit breaking device, the rotating screen, the mixing shaft, the conveying screw, and the machine Frame and other components. Pomegranate Peeling Machine is made of stainless steel except for the transmission part, and the stirring shaft is steplessly adjustable.
Working principle: The pomegranate enters the upper fruit breaking device from the feeding hopper, and is pressed open and coarsely broken under the action of the opposing pressure between the two pressure rollers The fruit then enters the lower fruit breaking device, and the lower fruit breaking device squeezes the pomegranate again. At this time, the pomegranate that has undergone two-stage squeezing has basically separated its shell and flesh and falls into the separating device. The upper and lower fruit breaking rollers are of elastic structure, and the gap is adjustable. Under the action of the mixing and conveying blades on the mixing shaft, the broken pomegranate pulp drops from the sieve holes and is sent to the discharge port under the action of the spiral outside the rotating sieve, while the pomegranate skins are discharged from the tail under the action of the mixing and conveying blades. The pomegranate pulp and juice from this machine can be transported to the next process with a screw pump.
Mainly used to separate and peel the Pomegranate peel. Seperate the peel and the Pomegranate seeds. Then, the seeds can be used to make the juice, beverage,etc.
Best Selling Pomegranate Aril Seeds Removing Separator Peeling Peeler Machine Pomegranate
Processing Machine
If you want to get intact pomegranate seeds, About our this model machine, I have to tell there will be 25% breakage rate. But, if you want to make juice, beverage, this machine is the most suitable and have high separate efficiency.

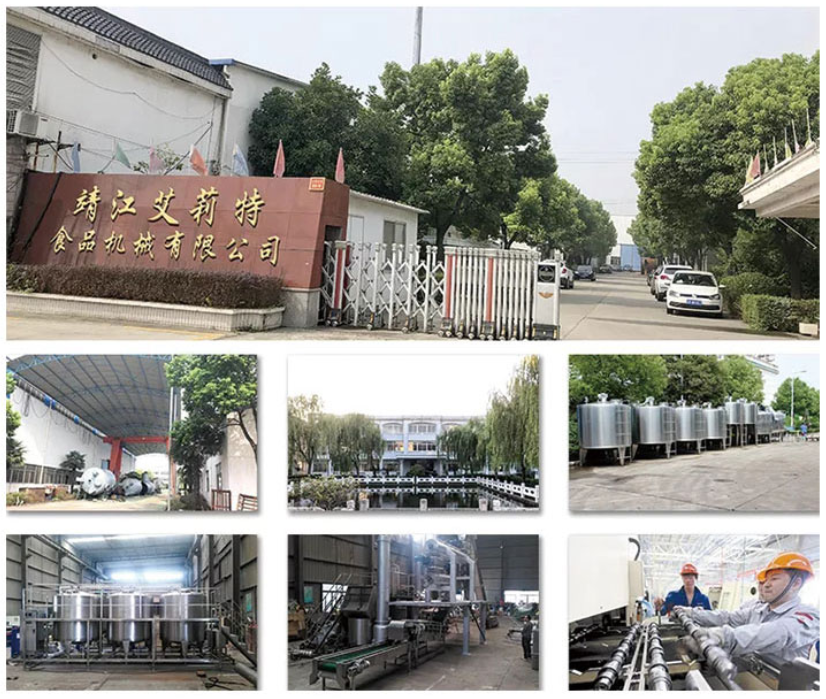

The fruit and vegetable pharmaceutical processing equipment produced by Jingjiang Elite Food Machinery Co., Ltd. integrates a simple, durable, and practical design style, adheres to excellent processing and manufacturing techniques, and combines our years of industry experience to gather experts in food technology, pharmaceutical technology, plant extraction technology, and mechanical equipment engineers. We have successively introduced advanced fruit and vegetable processing machinery technology from abroad, adhered to the concept of rapid introduction, multiple improvements, and continuous innovation in technology, and used new technologies and processes to optimize the combination of machinery with excellent industrial technology data, making the equipment layout more reasonable. We have provided a full line of equipment and complete turnkey green product solutions for several domestic and foreign fruit and vegetable processing, pharmaceutical processing, and plant extraction processing enterprises, and formed a unique market.
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about automatic pomegranate peeler, pomegranate peeling machine, machine to peel pomegranate, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
