We're professional tomato paste processing line manufacturers and suppliers in China, to buy or wholesale tomato paste production line from our factory. For quotation or if you have any questions, contact us now for customized tomato paste production lines and price.

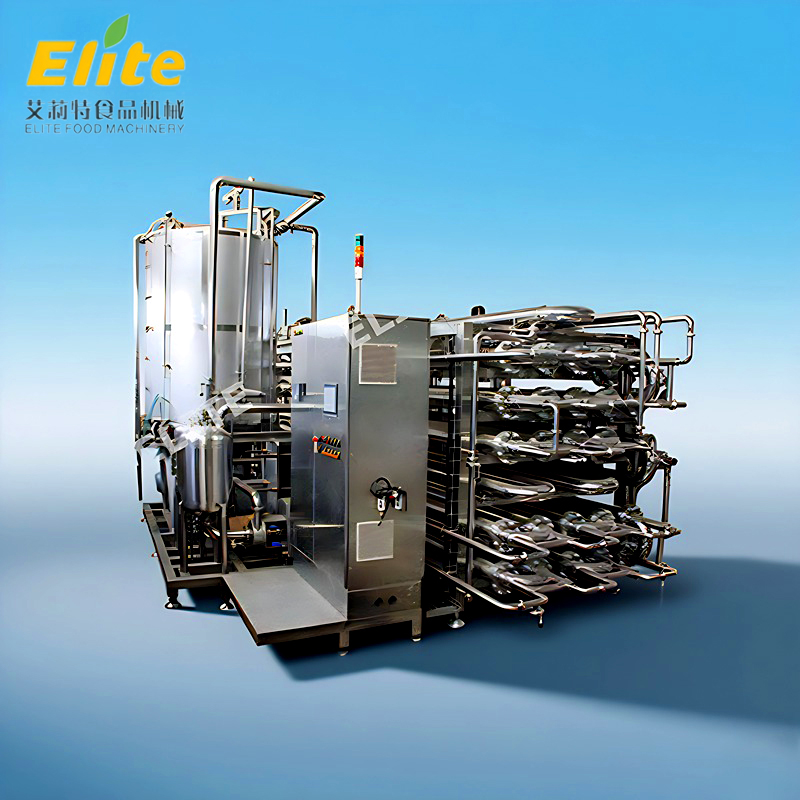

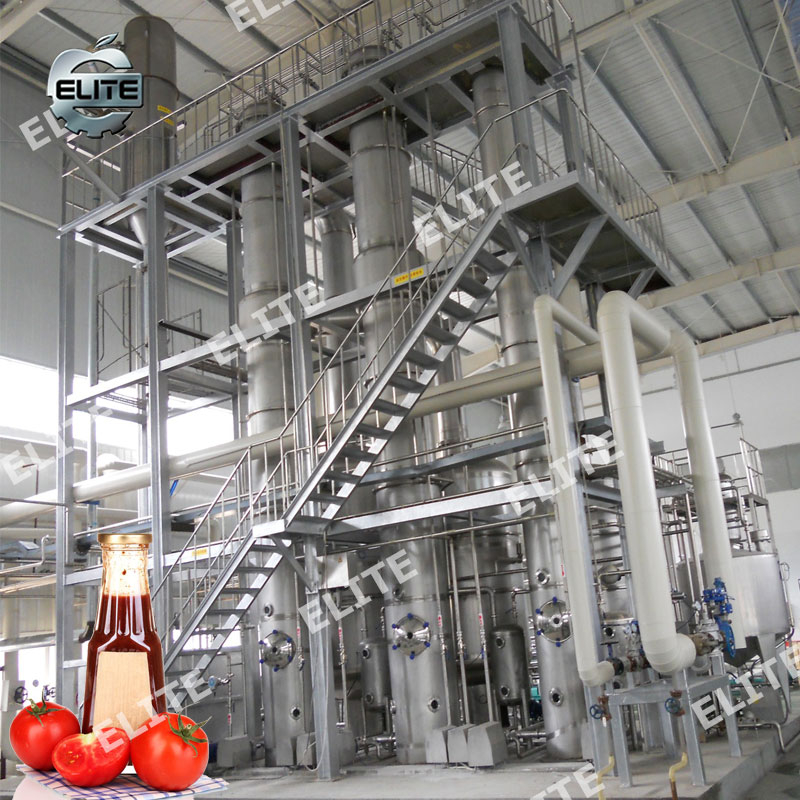

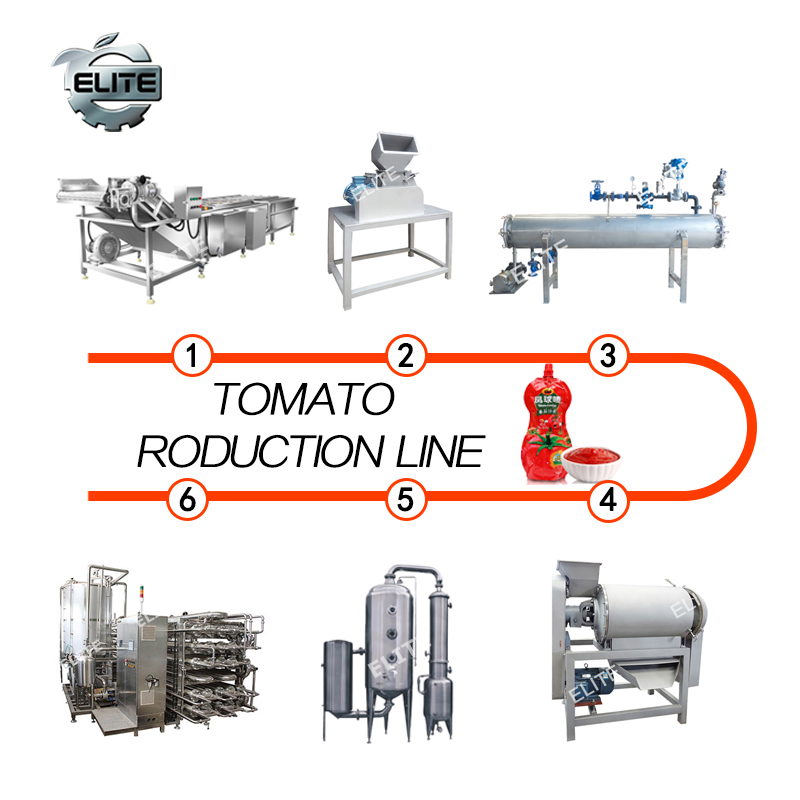

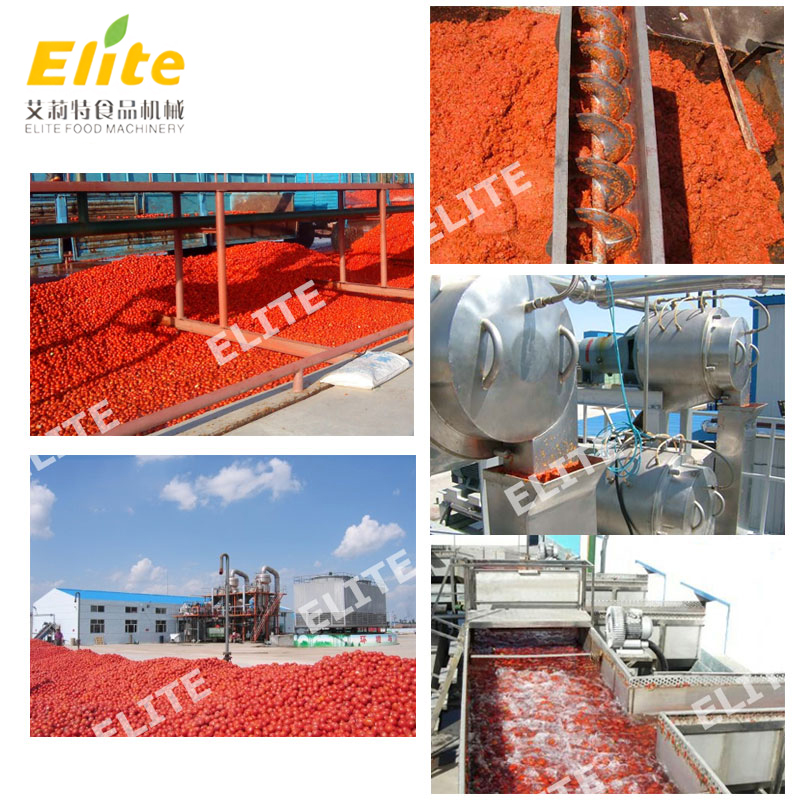

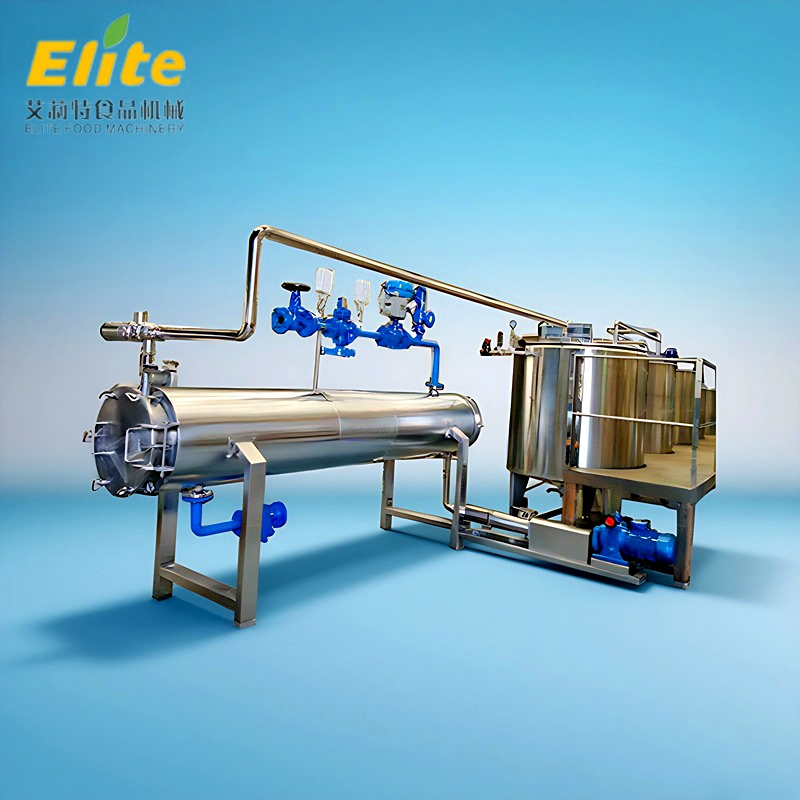

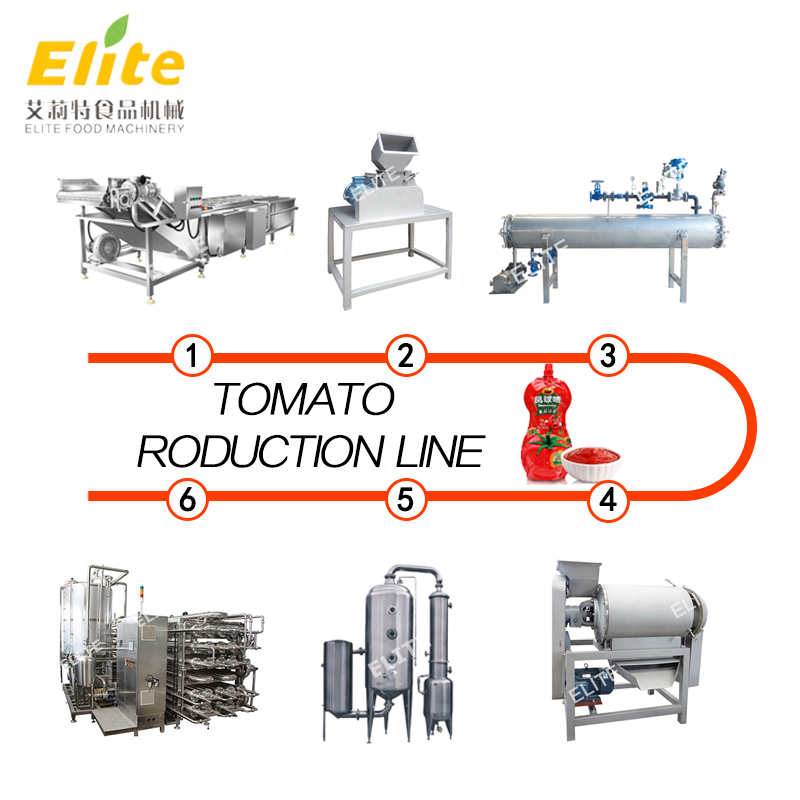

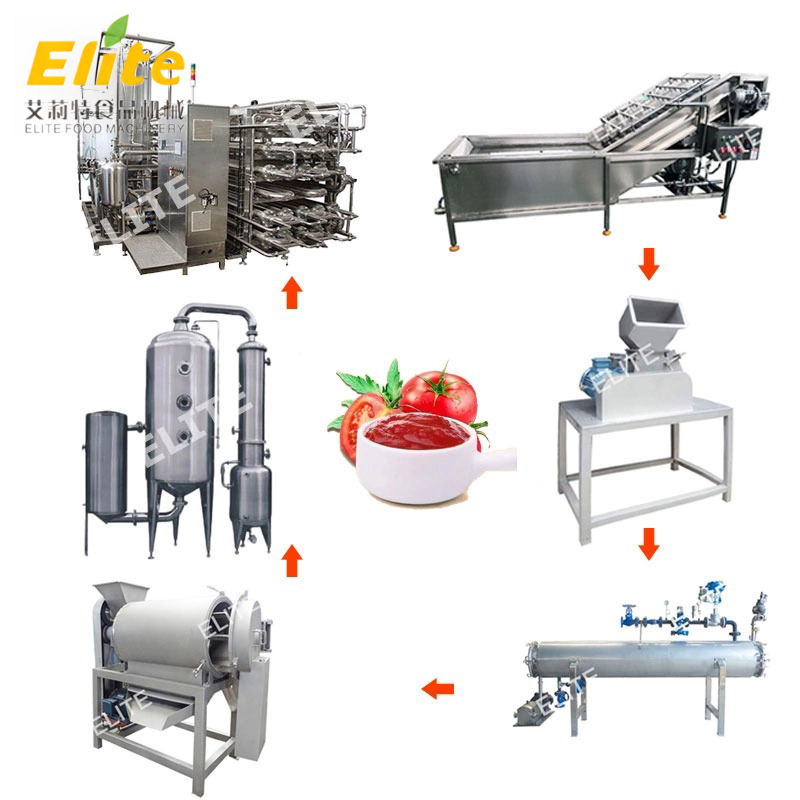

Tomatoes are usually processed for paste and the processing line mainly includes five parts: fresh tomato receiving, pre-washing and sorting section; extracting section; concentrating section; pasteurizing or sterilizing section; aseptic filling section. It is mainly composed of discharge system, hydraulic convey system, bucket elevating, washing and sorting system, crushing system, pre-heating system, pulping and refining system, evaporating& concentrating system, sterilizing system, aseptic filling system. Tomato paste in aseptic drum can be further processed to ketchup, sauces, juices in tin can/bottle/pouch, etc.
Offers complete process line on turnkey basis to produce the following end products from tomatoes.
1. Tomato Puree from tomato processing plant
2. Tomato Paste from tomato paste processing plant
3. Tomato Ketchup/Sauces from tomato ketchup puree plant
4. Tomato Juices from tomato juice processing plant
5. Tomato Powder from tomato powder processing plant
* Advanced Technology.
* High Quality Material, The Reasonable Component Of The Market.
* Semi-Automatic As Well As Fully Automatic System Available.
* Field Start And Related Training.
* The Finished Product Quality Is Excellent, And The Color Is Delicious.
* High Productivity, Flexible Production, Can Be Customized According To Customer Demand.
* Complete Supervision System, Equipped With Control Room To Monitor Each Processing Stage.
* Daily Output Can Be Clearly Revealed
Raw material handling capacity(t/d) | 60 | 150 | 250 | 500 | 750 | 1000 | 1250 | 1500 | 2000 |
Evaporation Form | Double | Double | Three | Three | Three | Three | Three | Three | Three |
Water Consumption | 7.1 | 13.1 | 21.6 | 44.3 | 65.7 | 44.3 | 65.9 | 65.9 | 79.08 |
Power(kw) | 83.8 | 151.5 | 412.4 | 636.2 | 955.4 | 1291.6 | 1411.1 | 1558.1 | 1869.7 |
Steam Consumption(t/h) | 1.665 | 3.87 | 5.22 | 9.14 | 15.01 | 20.2 | 24.62 | 29.15 | 34.98 |
Compressed Air Consumption(t/h) | 66.2 | 66.2 | 66.2 | 72.2 | 72.1 | 72.2 | 72.2 | 72.2 | 86.84 |
Cooling Water Consumtion(t/h) | 125 | 317 | 307 | 585 | 825 | 1075 | 1410 | 1630 | 1956 |
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about tomato paste processing line, tomato paste production line, tomato paste production lines,tomato sauce processing line,canned tomato production line,please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
