We're professional automatic potato slicer machine manufacturers and suppliers in China, to buy or wholesale potato slicing machine from our factory. For quotation or if you have any questions, contact us now for customized commercial potato slicer and price.

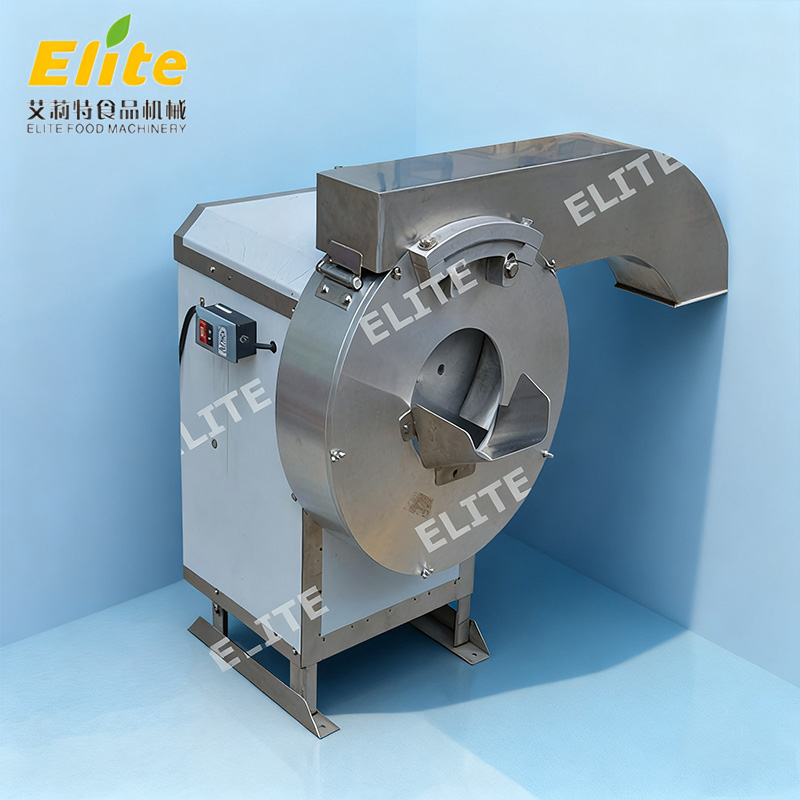

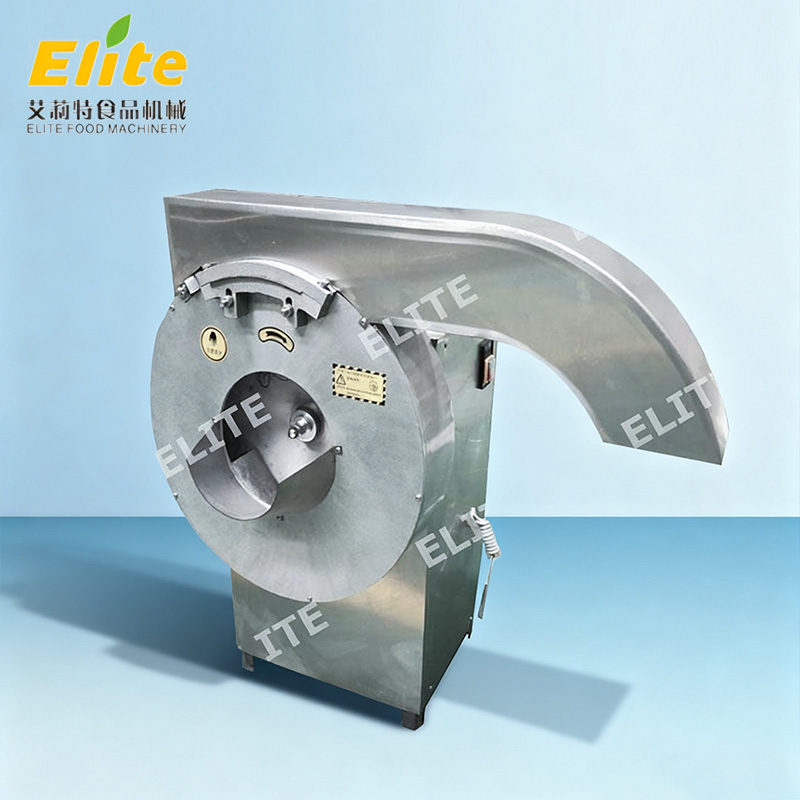

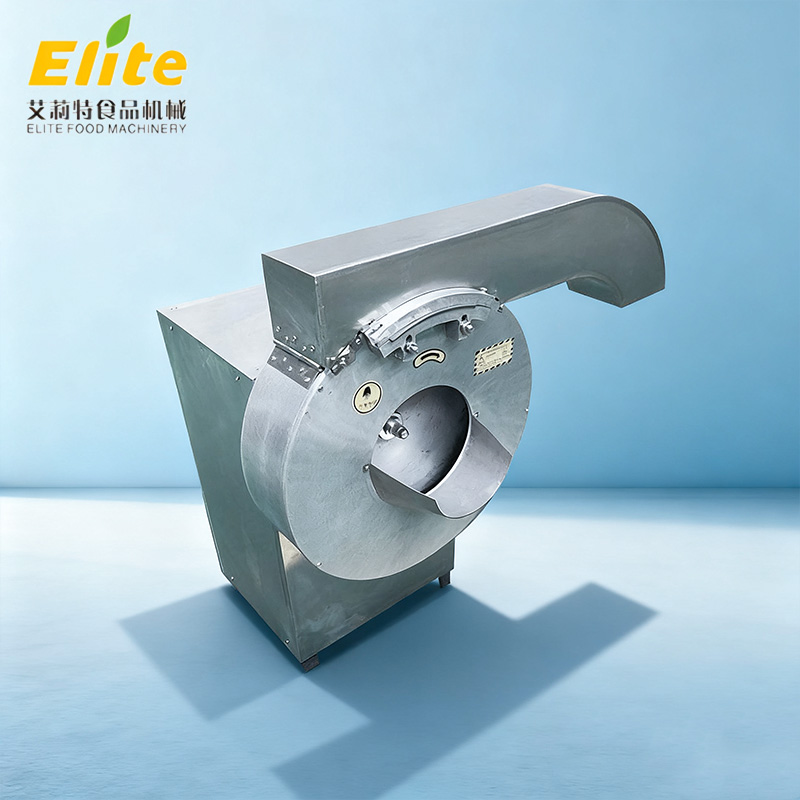

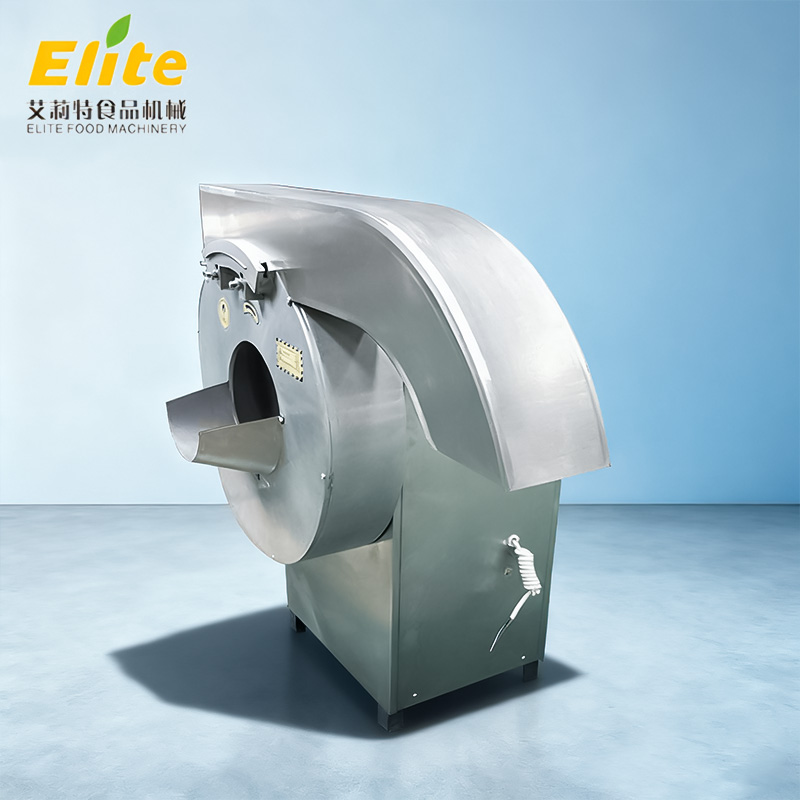

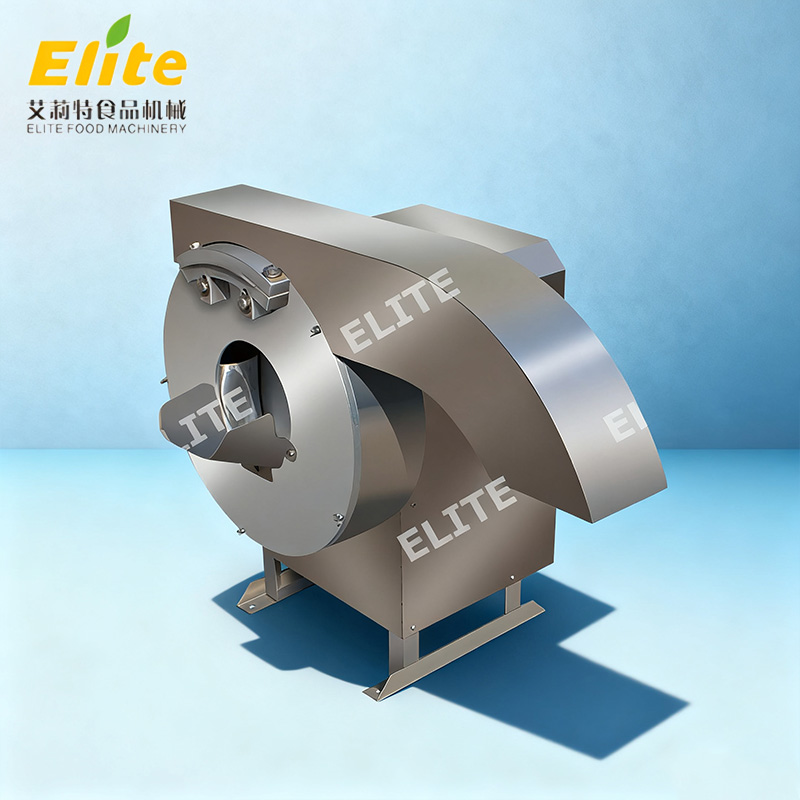

This machine is suitable for slicing or dicing hard vegetables such as tubers and rhizomes. It is an ideal processing equipment for the vegetable processing industry to produce fresh and dehydrated vegetables, and also an ideal machine for the fast food industry to process French fries. The machine mainly consists of a frame, a shell, a material-guiding disc, a cutting blade, a transmission part, and a discharge cover. It adopts a material-guiding slot on the rotating material-guiding disc for feeding, and small inclined knives and curved oblique-edged large knives for cutting. It features good cutting surface quality, high vegetable cutting efficiency, convenient operation, and low energy consumption. The parts that come into contact with vegetables are made of aluminum alloy and stainless steel, meeting the hygiene standards required for food processing machinery.
| PRODUCT NAME | ROOT VEGETABLE STRIP CUTTING MACHINE |
| DIMENSION | 750L*580W*1080H (MM) |
| POWER | 1.0KW |
| VOLTAGE | 220V380V |
| APPLICATION | CUT STRIPS OF SWEET POTATO,POTATO,MUSTARD,ETC |
| FUNCTION | STRIP CUTTING MACHINE |
| NOTE | THE MACHINE IS ABLE TO BE CUSTOMIZED. |
1、 The foundation must meet the requirement of 5 tons of operating weight.
2、 During the hoisting process, the hoisting ring frame should be fixed with a wire rope to ensure the balance of the equipment and not be carried by the cylinder.
3、 Adjust the support feet of the equipment rack, level with a spirit level after positioning, and fix the rack bolts.
4、 Check one by one whether each transmission part is flexible.
5、 Add the specified lubricating oil or grease to the bearing part or reducer.
6、 Check whether the components are firmly installed.
7、 After power-on, the equipment is tested separately, and the steering is shown on the steering sign of each transmission part. Reversal is strictly prohibited.
8、 The flushing water pump is strictly prohibited from running short of water, and the power supply is strictly prohibited from running without phase.
9、 Test run, and repeatedly try the electrical appliances and whether it is effective to start and stop safely.
10、 Cut off the power and clean the whole machine.
11、 Add water to test the machine.
12、 The test run shall not be less than 3 times idling, each time is 1 hour.
13、 When the inspection is correct again, the material can be officially put into continuous production.
1、Boot up
1） Clean up and wash all impurities in the equipment with hot water to keep the equipment clean and tidy;
2） Check whether all the rotors of the equipment are flexible and whether the bolts of each part are loose;
3）Dry the equipment for 30 minutes, check whether the electrical appliances and safety protection devices are sensitive, and after confirming that each part is normal, put the material into operation;
2、Shutdown and maintenance
1） Stop feeding before shutting down, and observe that there is no material in the water tank and the discharge hoist, turn off the discharge hoist, flushing pump and whirlpool air pump, and open the drain valve to drain the water;
2） Use clean water when cleaning the equipment, start the discharge hoist and rinse the chain plate (mesh belt) and water tank of the hoist with clean water, and turn off all power supplies after flushing;
3） After each shift, cleaning and maintenance must be performed to prevent the materials from fermenting and deterioration in the machine and the lubricating part from losing oil;
4） Clean the outside of the equipment and protect it with a plastic film cover when not in use for a long time;
5） Regularly check whether electrical appliances and safety protection devices are intact and sensitive;
6） Check the equipment regularly, and add grease (oil) to each lubrication part regularly;
Ø Reversal is strictly prohibited!
Ø If the parts are loose or abnormal, it is strictly forbidden to turn on!
Ø It is strictly forbidden to flush the appliance or motor into water!
Ø All power is strictly prohibited to run without phase!
Ø It is strictly forbidden for hard foreign objects such as metals or stones to enter the equipment!
Ø It is strictly forbidden to run with the moving part!
Ø When the equipment is running, it is strictly forbidden to get close to the running parts to avoid injury!
