We're professional coring juicer manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.
The equipment adopts roller extruding forcedly presses to extract juice,it’s mainly suitable for passion fruit , orange, pineapple, papaya, guava, dragon fruit and other fruits peeling and juicing, The equipment has the characteristics of simple operation, high production efficiency, less power consumption.
◎Capacity：1-3T/H；
◎Fruit diameter：φ50mm-φ100mm；
◎Power：6KW；
◎Speed：35r/min；
◎Distance between press rolls：30mm；
◎Dimension：1800*1300*2300mm；
◎The gap between screen and press roller is adjustable;
◎A flexible scraping device is arranged on the pressing roller;；
◎There is a juice tank at the bottom, which can be connected with the screw pump (the screw pump is provided by the user);
◎In addition to the transmission, other parts are made of SUS304 stainless steel;

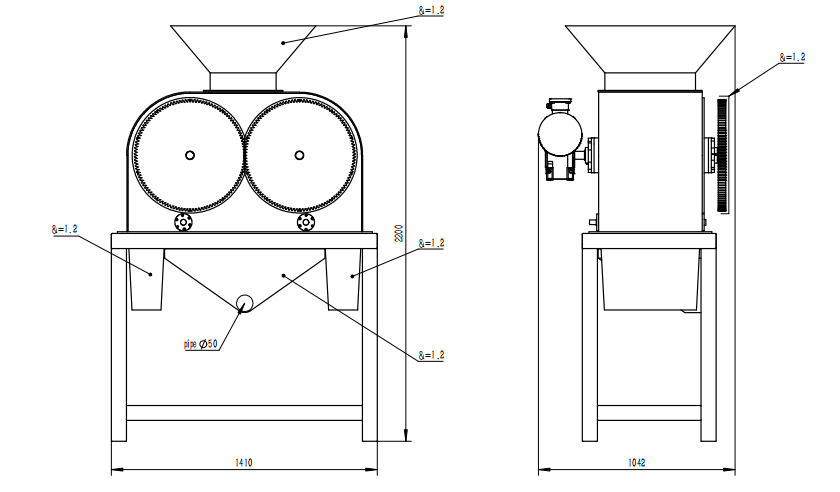

It is mainly composed of rack, peeling and juicing structure, feeding hopper, etc. (see structural schematic diagram for details)
A horizontal knife fixed between two counter rolling cylinders cuts the fruit into two halves. Then the half fruit is dragged by the rolling cylinders along the squeezing channels: here the juice comes out and is filtered through a perforated stainless steel sheet.
According to the type of fruit, the space between the screen and the press roller can be adjusted to achieve the best juicing and peeling effect.
1．According to the characteristics of the fruit, the size of the press roll and the spacing between the press rolls can be designed;
2．Screen meshes of different sizes can be designed according to different fruit characteristics;
3．the peeling effect is complete, in order to prevent the tannin or pigment on the skin from entering the pulp to affect the taste;
4．The space between the screen and the press roll is adjustable;
5．The device has the characteristics of simple operation, simple adjustment, good equipment stability and high efficiency;
6．Except for the transmission part, all others are made of SUS304 stainless steel;
QZJ seedless juice extractor is mainly suitable for seedless juice of all kinds of rupes, which consists of beater and juice extractor. For example: waxberry, cherry, peach and so on.
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about coring juicer, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
