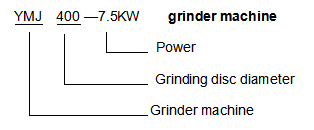

Product model and name

Purpose
This machine is absorbing the experience of many customers and absorbed the Italian advanced equipment, carefully developed, is a kind of efficient grinding equipment, in the production of juice, sauce, fruit and vegetable powder, stuffing and other key equipment,With the characteristics of high efficiency, high stability, stable performance, long service life, low noise, convenient operation and maintenance, etc., can greatly reduce production costs.
The device is widely used in various berries (for example: strawberry, tomato, blueberry, mulberry, etc.), pome (for example: apple, pear, crab, etc.), vegetables (for example: carrot, radish, melon, squash, potatoes, green peppers, celery, fresh wheat, celery, etc.) and nuclear nuclear fruit (for example: peach, apricot, plum, etc.), the other to shell or peeled (example: coconut, garlic, onion, ginger, pineapple and other) a crushing and grinding.
Technical parameters
Model
| YMJ-200 | YMJ-400 | YMJ-700 |
Capacity | 200-600kg/h | 500-1500 kg/h | 1000-3000 kg/h |
Power | 2.2-3KW | 5.5-7.5KW | 11-15KW |
Speed | 1450r/min | 1450r/min | 1450r/min |
Diameter | 200mm | 400mm | 700mm |
Number of knife | 12 | 24 | 48 |
Gap between flange and blade | 0.5mm-5mm (adjustment) |
Dimension | 700×500×1200 | 950×720×1500 | 1350×1050×1800 |
Note: 1. Processing capability: depends on the characteristics of the material and the particles being ground; 2. Power consumption: Depending on production capacity; |
Main structure principle
The equipment is composed of feeding device, a fixed adjusting flange, cutter tooth disc, a transmission device and a frame component (see schematic).
After washing or peeling (shell) of the material by artificial or elevator machine materials into the hopper, materials in high speed rotating blade feeding pressure plate mill, the material down into a hopper fixed screw extrusion down, at the same time get the blade thickness cutting, grinding, finally small shear or filler particles, from a fixed flange and cutter tooth extrusion from falling out of a millstone gap discharge hopper, adjust the fixed flange and the blade gap mill can get the best crushing grinding fineness and production capacity.
Feature
1、The blade: using of the 3Gr13 stainless steel quenching technology, the hardness up to 65 HRC wire-cutting processing, with a sharp blade, long life and other characteristics。
2、Blade mill: the blade and mill adopts special thread cutting fixed installation structure, consistent with blade shape size, replace the disassembly is convenient wait for a characteristic。
3、It’s provided with a fixing flange and the cutter disc clearance adjusting fixing bolt to adjust, according to the process to meet the requirements of the best fine crushing grinding fineness and production capacity。
4、Transmission bearing block: Design of large number of heavy-duty bearings, and large oil storage capacity of the bearing, bearings can be fully lubricated, so that the performance of the device is more stable, reduce the vibration and noise, extend the service life, etc。
5、The overall use of flange and spline positioning connection structure, each part of the easy disassembly maintenance and replacement。
