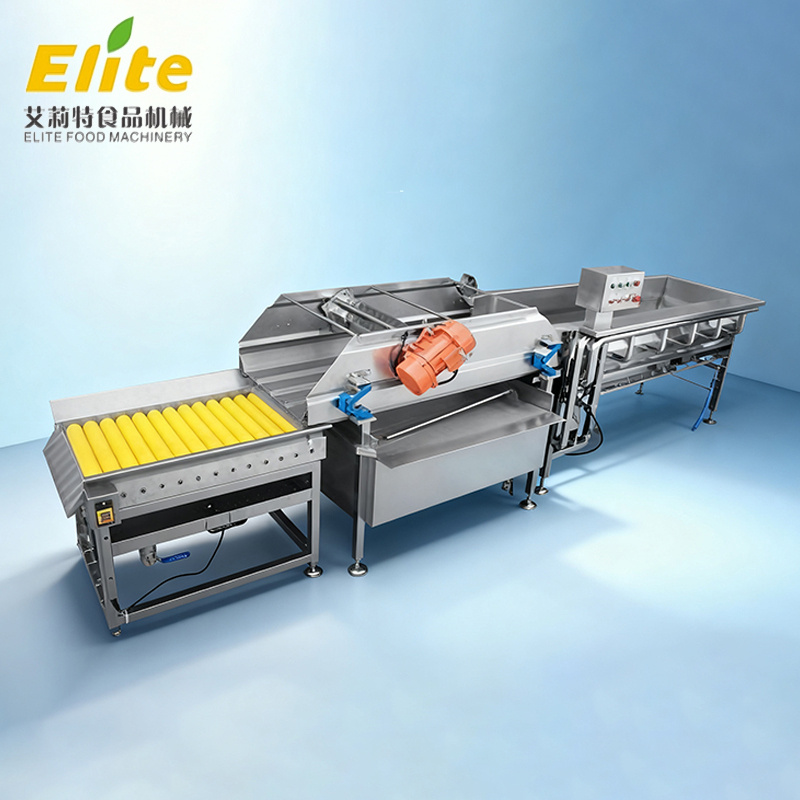

Eddy Washing Machine

We're professional eddy washing machine manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.

The fully automatic eddy current cleaning machine adopts a bubbling water bath cleaning method, suitable for cleaning various fruits, vegetables (fresh vegetables, pickled vegetables, cleaned vegetables, and mushroom vegetables), aquatic products, and medicinal materials. It can be customized according to production volume. The equipment is made of stainless steel, meeting food hygiene standards. The equipment is equipped with a bubble generation device, which enables the material to be in a tumbling state to remove dust, sediment, and surface pesticide residues. The entire equipment is made of stainless steel plates, which are rust-resistant and durable. It combines the advantages of bubbling cleaning and cyclone cleaning. Based on traditional cyclone cleaning, the design of bubbling cleaning is added, with a high-pressure air injection tube arranged at the bottom of the tank to eliminate the clumping phenomenon that occurs when cleaning uncut vegetables with traditional cyclone cleaning machines. High-pressure bubbling can separate clumped vegetables, solving the embarrassing drawback of pure cyclone cleaning machines that can only clean cut materials. The exhaust pipe is equipped with a pressure relief valve to adjust the bubble intensity when cleaning different materials. It adopts dual clean and flipping cleaning + high-pressure adjustable bubble vibration cleaning, which can easily handle both whole vegetables and cut sections and shredded vegetables. During the working process, the filtered water is pumped back into the main tank through a circulating water pump, achieving water recycling. The upper part of the spray pipe is always supplied with water, gradually replacing the sewage in the water tank, which saves energy and is environmentally friendly and hygienic.

Main technical parameters

◎Effective conveying width：500-1200mm;

◎limit driven length of single machine：3000-800mm；

◎Elevator  material:SUS 304 ;

◎turning claw rotation speed:8-40 r/min;

◎circulating water pump motor power：0.55/0.75/1.1/1.5/2.2kw

◎blower power：1.5/2.2/3/4/5.5 kw

Characteristics and uses of eddy current cleaning machine

1. The equipment, except for standard components such as motors and bearings, is made of stainless steel SUS304 material, which fully meets the hygiene requirements for export food. The equipment is equipped with a bubble generation device to make the material roll and remove pesticide residues on the surface of the product. At the same time, an appropriate amount of medication can be added for disinfection and color fixation. Floating objects can overflow from the overflow tank, and sediment can be discharged from the sewage outlet to achieve the purpose of cleaning. It has the characteristics of high cleanliness, energy saving, water saving, and stable and reliable equipment.

2. It is suitable for cleaning, soaking, sterilizing and fixing granular, leafy and rhizome products such as vegetables, Pickled vegetables, peppers, fruits and aquatic products.

3. The conveying part of this machine adopts SUS304 stainless steel mesh belt, which has the characteristics of smooth operation and long service life, and meets the requirements of food hygiene.

4. Easy to operate, convenient to maintain, and easy to connect.

5. The transmission part adopts a speed regulating deceleration motor, which allows the material cleaning time to be adjusted.

The eddy current cleaning machine is divided into several different cleaning equipment for leaves, roots, fruits, miscellaneous grains, and packaging bags, and the corresponding cleaning equipment varies according to different products. Made of high-quality 304 stainless steel, the material fully meets the food requirements standards. The overall workflow of the machine is streamlined, saving labor and improving efficiency, thus saving costs for the enterprise. The conveyor belt used varies depending on the product, and it does not damage the skin of fruits and vegetables. It is clean and efficient.

Eddy washing machine Manufacturer

Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...

If you have any questions about eddy washing machine, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
