Food Homogenizer

Food homogenizer is also called homogenizer or high pressure homogenizer.

● Superior Particle Size Reduction;

● Enhanced Product Stability;

● Wide Processing Versatility;

● Improved Functional Properties;

● Scalable & Efficient Operation;

Availability:



Inquire Add to Basket

food homogenizer homogenizer high pressure homogenizer high shear homogenizer homogenizer in food industry homogenizer in pharmaceutical industry homogenizer pharmaceutical

Product Description

We're professional food homogenizer manufacturers and suppliers in China, to buy or wholesale homogenizer from our factory. For quotation or if you have any questions, contact us now for customized high pressure homogenizer and price.

Main purposes

1. This products is used for inclusion extraction form biologic cell or products creation.

2. Unsolvable two-phase materials )liquid-liquid or liquid-solid) are grindead into stable superfine emulsion and dispersive solution)

3. The refinement of other various materials.

In conclusion,the machine is widely used in the field such as food bioengineering,chemicals and pharmaceuticals.

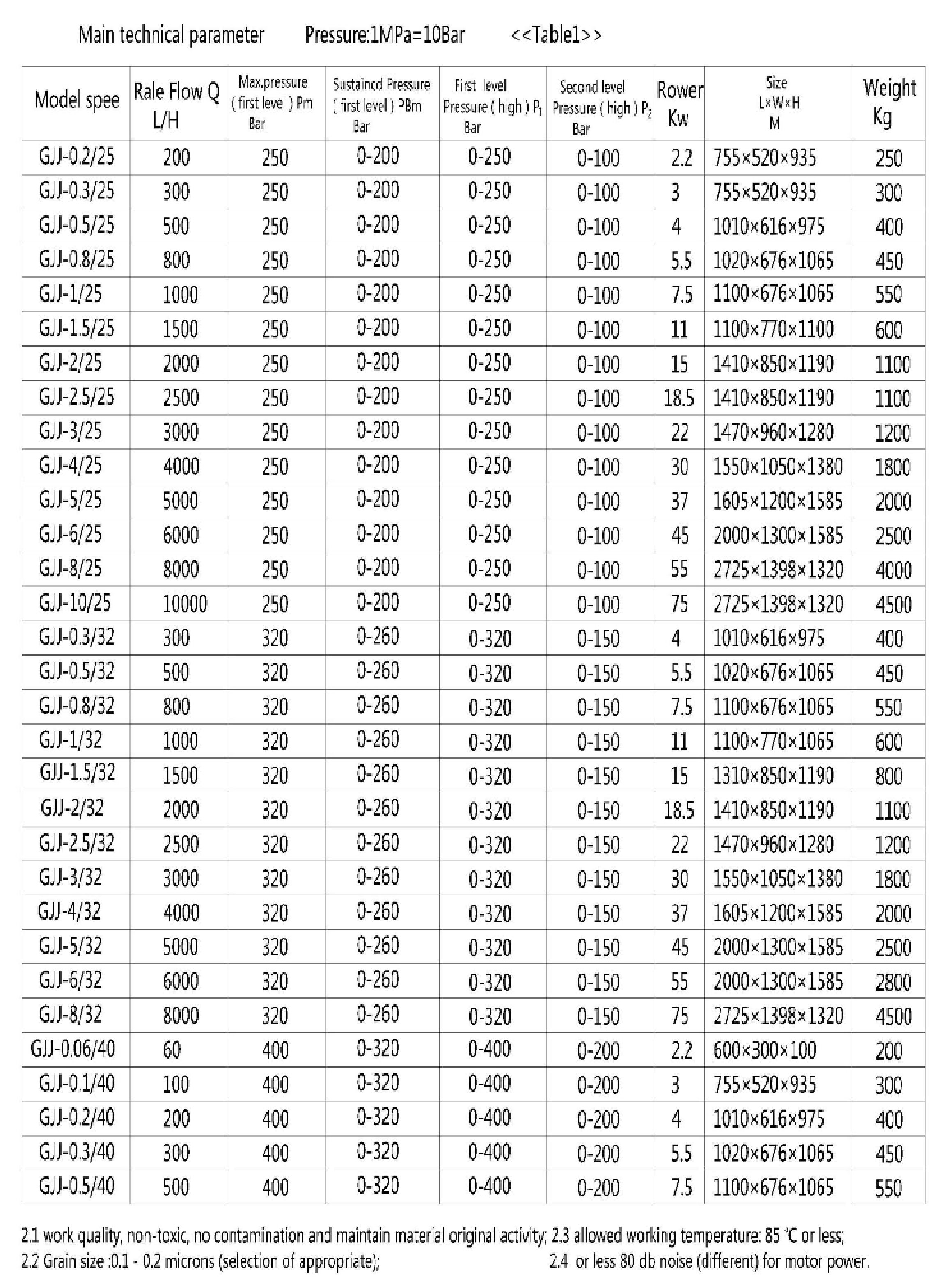

Main technical parameter

Pressure:1MPa=10Bar

Model spee	Rale Flow QL/H	Max. pressure(first leve) PmBar	Sustaincd Pressure(first level) PBmBar	First level Fressure(high) P₁Bar	Second level Pressure(high)P₂Bar RowerKw	Size L×W×HM	Weight Kg
GJJ-0.2/25	200	250	0-200	0-250	0-1002.2	755×520×935	250
GJJ-0.3/25	300	250	0-200	0-250	0-1003	755×520×935	300
GJJ-0.5/25	500	250	0-200	0-250	0-1004	1010×616×975	4C0
GJJ-0.8/25	800	250	0-200	0-250	0-1005.5	1020×676×1065	450
GJJ-1/25	1000	250	0-200	0-250	0-1007.5	1100×676×1065	550
GJJ-1.5/25	1500	250	0-200	0-250	0-10011	1100×770×1100	600
GJJ-2/25	2000	250	0-200	0-250	0-10015	1410×850×1190	1100
GJJ-2.5/25	2500	250	0-200	0-250	0-10018.5	1410×850×1190	1100
GJJ-3/25	3000	250	0-200	0-250	0-10022	1470×960×1280	1200
GJ-4/25	4000	250	0-200	0-250	0-10030	1550×1050×1380	1800
GJJ-5/25	5000	250	0-200	0-250	0-10037	1605×1200×1585	2000
GJJ-6/25	6000	250	0-200	0-250	0-10045	2000×1300×1585	2500
GJJ-8/25	8000	250	0-200	0-250	0-10055	2725×1398×1320	4000
GJJ-10/25	10000	250	0-200	0-250	0-10075	2725×1398×1320	4500
GJJ-0.3/32	300	320	0-260	0-320	0-1504	1010×616×975	400
GJJ-0.5/32	500	320	0-260	0-320	0-1505.5	1020×676×1065	450
GJJ-0.8/32	800	320	0-260	0-320	0-1507.5	1100×676×1065	550
GJJ-1/32	1000	320	0-260	0-320	0-15011	1100×770×1065	600
GJJ-1.5/32	1500	320	0-260	0-320	0-15015	1310×850×1190	800
GJJ-2/32	2000	320	0-260	0-320	0-15018.5	1410×850×1190	1100
GJJ-2.5/32	2500	320	0-260	0-320	0-15022	1470×960×1280	1200
GJJ-3/32	3000	320	0-260	0-320	0-15030	1550×1050×1380	1800
GJJ-4/32	4000	320	0-260	0-320	0-15037	1605×1200×1585	2000
GJJ-5/32	5000	320	0-260	0-320	0-15045	2000×1300×1585	2500
GJJ-6/32	6000	320	0-260	0-320	0-15055	2000×1300×1585	2800
GJJ-8/32	8000	320	0-260	0-320	0-15075	2725×1398×1320	4500
GJJ-0.06/40	60	400	0-320	0-400	0-2002.2	600×300×100	200
GJJ-0.1/40	100	400	0-320	0-400	0-2003	755×520×935	300
GJJ-0.2/40	200	400	0-320	0-400	0-2004	1010×616×975	400
GJJ-0.3/40	300	400	0-320	0-400	0-2005.5	1020×676×1065	450
GJJ-0.5/40	500	400	0-320	0-400	0-2007.5	1100×676×1065	550

work quality , non-toxic, no contamination and maintain material original activity;
Grain size :0.1 - 0.2 microns (selectio r of appropriate);
Allowed working temperature:85℃ or less;
Or less 80 db noise (different) for motor power.

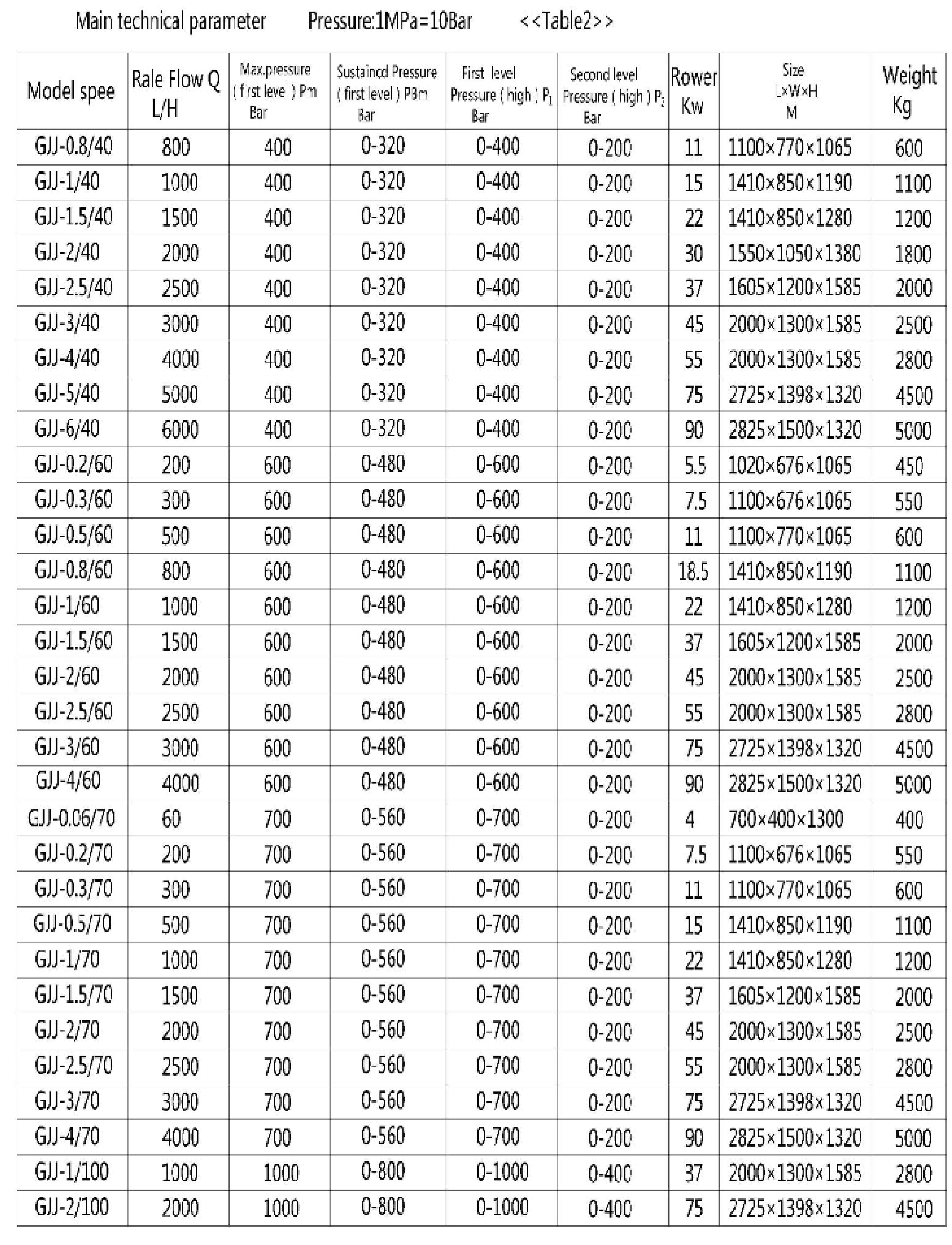

Model spee	Rale Flow QL/H	Max. pressure(frst leve) PmBar	Sustalincd Pressure(first level) P9m3ar	First level Pressure (high)P₁Bar	Second level Pressure(high) P₂Bar	RowerKw	Size LxWxHM	Weight Kg
GJJ-0.8/40	800	400	0-320	0-400	0-200	11	1100×770×1065	600
GJJ-1/40	1000	400	0-320	0-400	0-200	15	1410×850×1190	1100
GJJ-1.5/40	1500	400	0-320	0-400	0-200	22	1410×850×1280	1200
GJJ-2/40	2000	400	0-320	0-400	0-200	30	1550×1050×138C	1800
GJJ-2.5/40	2500	400	0-320	0-400	0-200	37	1605×1200×1585	2000
GJJ-3/40	3000	400	0-320	0-400	0-200	45	2000×1300×1585	2500
GJJ-4/40	4000	400	0-320	0-400	0-200	55	2000×1300×1585	2800
GJJ-5/40	5000	400	0-320	0-400	0-200	75	2725×1398×1320	4500
GJJ-6/40	6000	400	0-320	0-400	0-200	90	2825×1500×1320	5C00
GJJ-0.2/60	200	600	0-480	0-600	0-200	5.5	1020×676×1065	450
GJJ-0.3/60	300	600	0-480	0-600	0-200	7.5	1100×676×1065	550
GJJ-0.5/60	500	600	0-480	0-600	0-200	11	1100×770×1065	600
GJJ-0.8/60	800	600	0-480	0-600	0-200	18.5	1410×850×1190	1100
GJJ-1/60	1000	600	0-480	0-600	0-200	22	1410×850×1280	1200
GJJ-1.5/60	1500	600	0-480	0-600	0-200	37	1605×1200×1585	2000
GJJ-2/60	2000	600	0-480	0-600	0-200	45	2000×1300×1585	2500
GJJ-2.5/60	2500	600	0-480	0-600	0-200	55	2000×1300×1585	2800
GJJ-3/60	3000	600	0-480	0-600	0-200	75	2725×1398×1320	4500
GJJ-4/60	4000	600	0-480	0-600	0-200	90	2825×1500×1320	5C00
GJJ-0.06/70	60	700	0-560	0-700	0-200	4	700×400×1300	400
GJJ-0.2/70	200	700	0-560	0-700	0-200	7.5	1100×676×1065	550
GJJ-0.3/70	300	700	0-560	0-700	0-200	11	1100×770×1065	600
GJJ-0.5/70	500	700	0-560	0-700	0-200	15	1410×850×1190	1100
GJJ-1/70	1000	700	0-560	0-700	0-200	22	1410×850×1280	1200
GJJ-1.5/70	1500	700	0-560	0-700	0-200	37	1605×1200×1585	2000
GJJ-2/70	2000	700	0-560	0-700	0-200	45	2000×1300×1585	2500
GJJ-2.5/70	2500	700	0-560	0-700	0-200	55	2000×1300×1585	2800
GJJ-3/70	3000	700	0-560	0-700	0-200	75	2725×1398×1320	4500
GJJ-4/70	4000	700	0-560	0-700	0-200	90	2825×1500×1320	5C00
GJJ-1/100	1000	1000	0-800	0-1000	0-400	37	2000×1300×1585	2800
GJJ-2/100	2000	1000	0-800	0-1000	0-400	75	2725×1398×1320	4500

Food homogenizer Manufacturer

Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...

If you have any questions about food homogenizer, homogenizer, high pressure homogenizer,high shear homogenizer,please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
