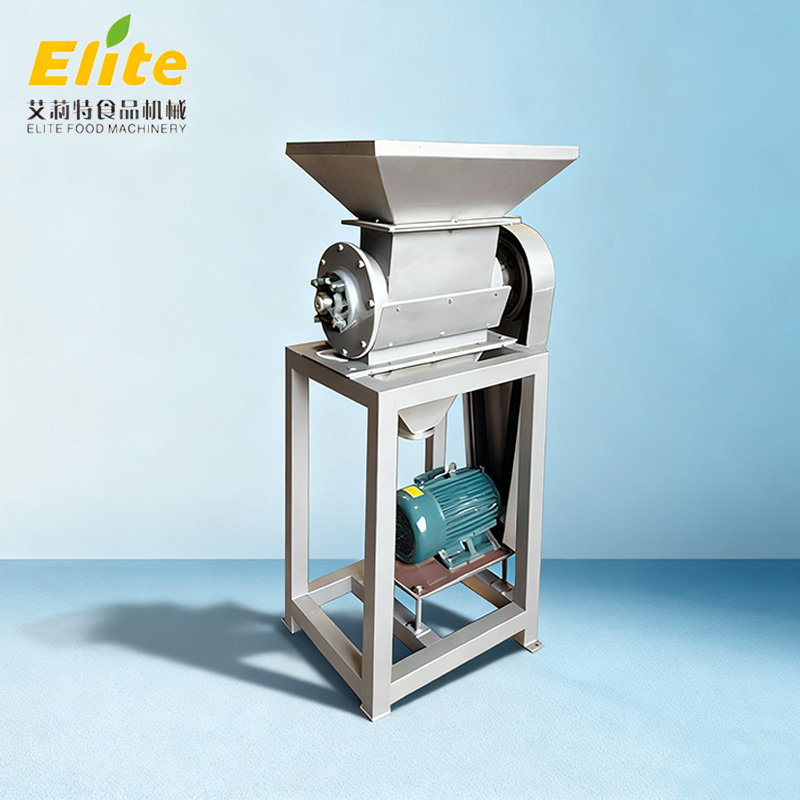

Fruit Crushing Machine

We're professional fruit crushing machine manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.

Outline

Main purpose and application

Berries  Fruits and vegetables a broken，and Pre-cooked and softening Kernel fruit and vegetables a broken ，Size：5~8mm。

such as：Berries：Tomatoes, carrots, kiwi fruit, papaya, mulberry。Kernel fruit：apple,pear.

Main technical parameters

Capacity：0.5T/h（tomato）

Power：0.75KW

cutter bit speed：310r/min

Contour Size：650×500×1180mm

Structure and working principle

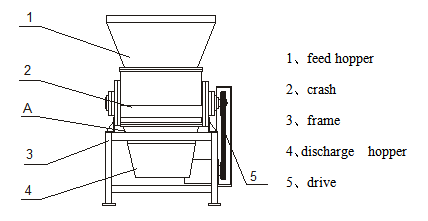

Main Component  ：feed hopper、crash、frame、discharge  hopper、drive，manufacture  by Stainless  drive except.

The principle of operation  ：Flying around its own axis at the end of the stationary knife clearance in rotation, so that fruit and vegetable break，There are four sets of rotor blade as a set of throwing knives at the end, depending on the different types of fruits and vegetables, a hopper with bucket and the tube in two forms。A hopper in the upper part of (diagram labeled as A Division), plus a buffer network device, receive the material finer granularity according to user requirements｡ rack cover stainless steel plate.
