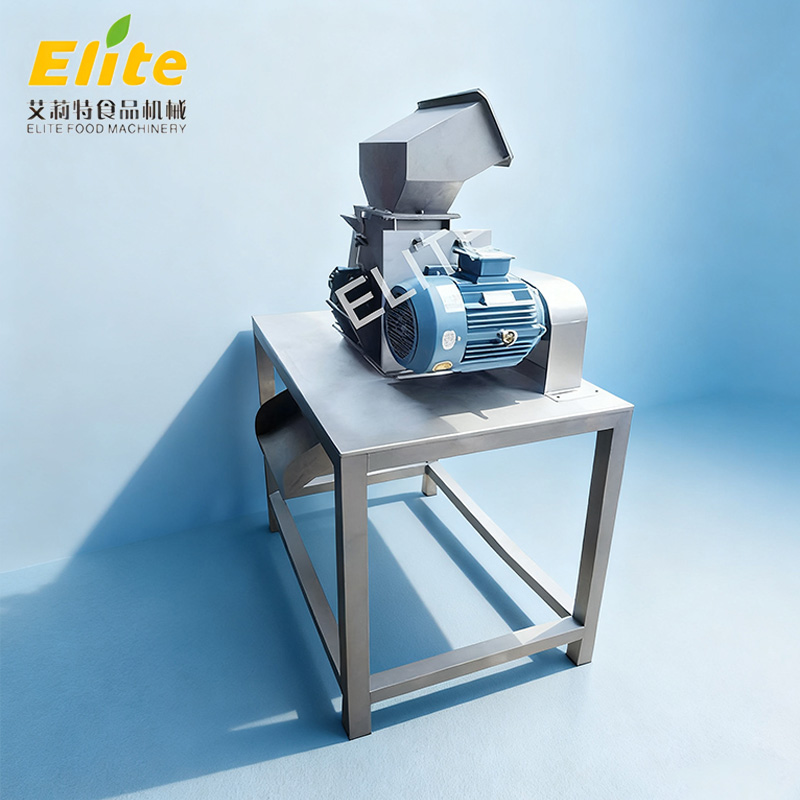

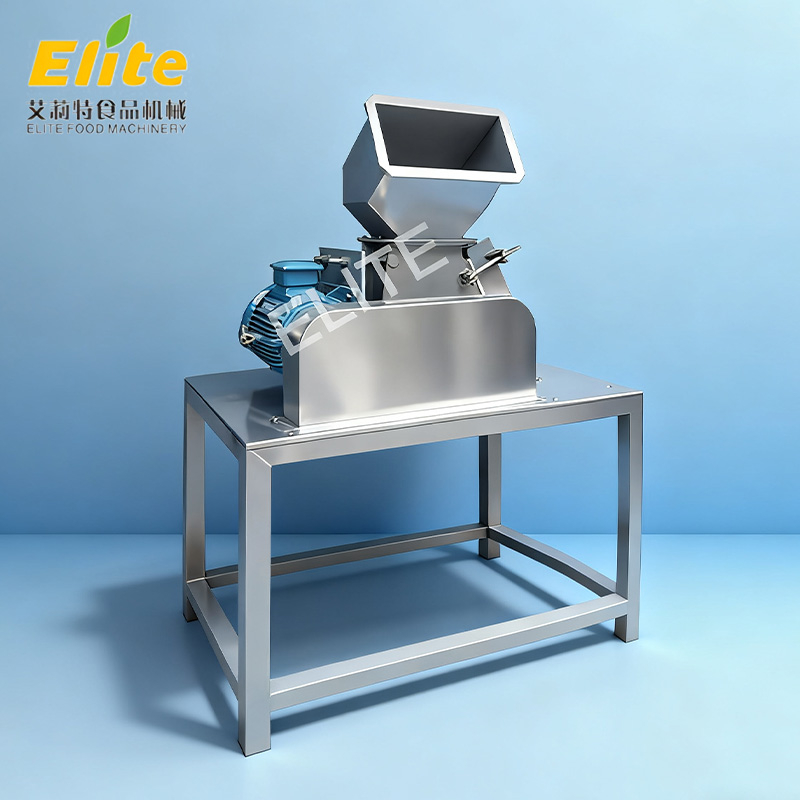

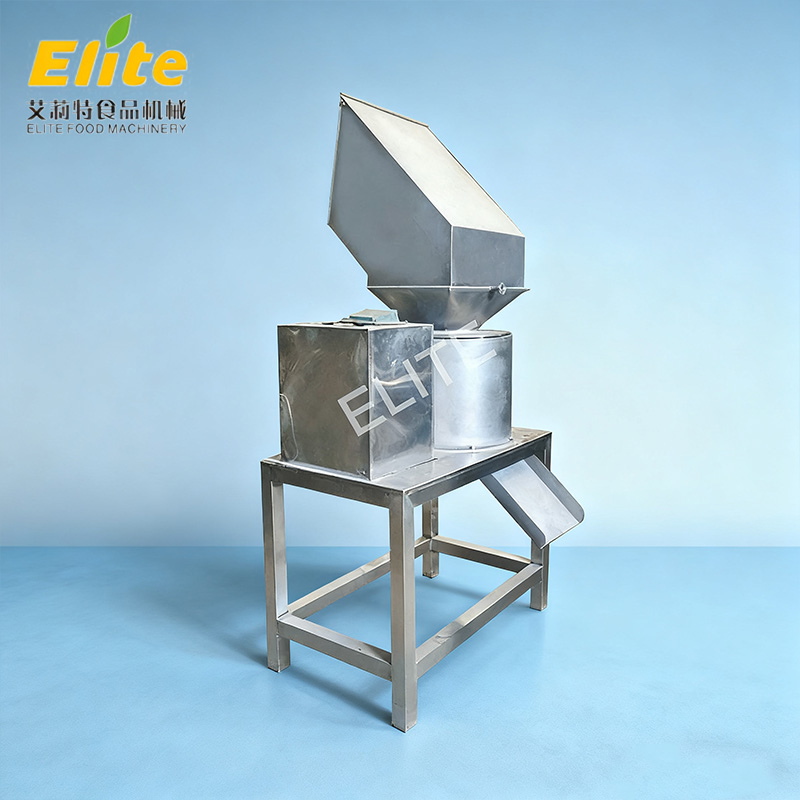

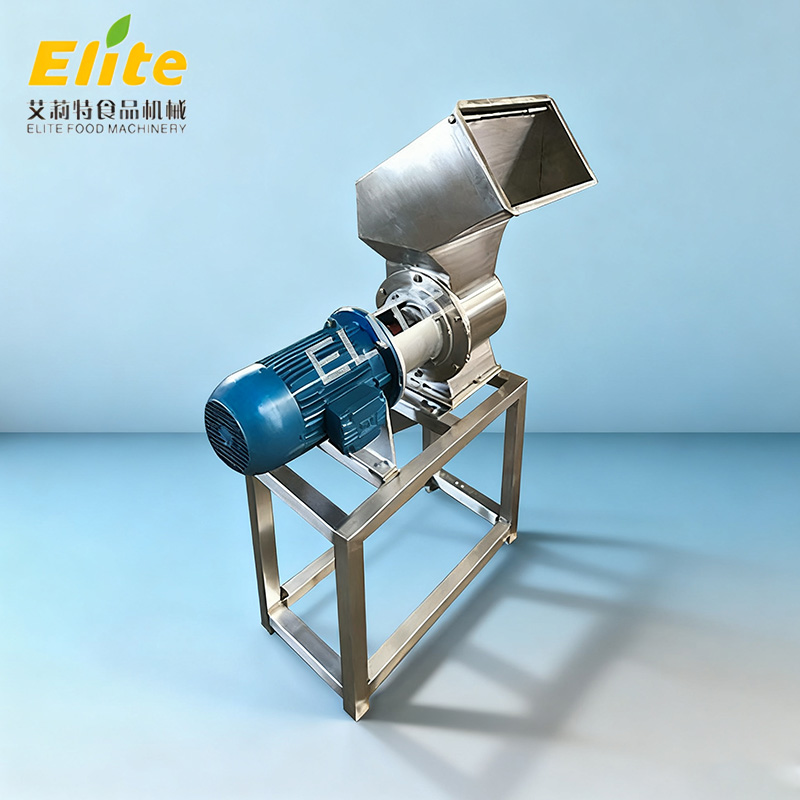

Fruit Shredder Machine

We're professional fruit shredder machine manufacturers and suppliers in China, to buy or wholesale fruit shredder from our factory. For quotation or if you have any questions, contact us now for customized and price.

Purpose

CPJ Hammer crusher is with the current international advanced level of fruit and vegetable crusher machine.The utility model has the advantages of novel and compact structure, energy saving, high efficiency, large production capacity, wide application range, etc.In addition to the machine transmission parts, are all made of stainless steel, both single use, and easy to wire.

Technical parameters

1.Type: CPJ-1;

2.Capacity:1-2T/H;

3.Power:3kw;

4.Voltage:220V/60HZ/3PH;

5.Dimension:1400*950*1850mm;

Main structure principle

The machine consists of side cover, knife, mesh, fuselage, shaft and other components.

The whole machine is composed of a feed hopper, a side cover, a machine body, a main shaft, a bearing seat, a motor, a machine frame, a discharging hopper, etc.

CPJ:When the motor through a belt pulley of a constant speed drive rotation of the spindle, the spindle is equipped with multiple high-speed rotating knife.Material by lifting machine free fall into the hopper,by high speed rotating fly knife cut up,due to the action of centrifugal force, material by the waist shaped hole screen falls into a hopper, and then by the pump input next procedure.Hammer crusher has the advantages that: the same size of broken materials, its size is determined by the screen belt waist shaped hole.

The advantages of hammer crusher is: broken material particle size, the size is decided by with waist shape hole mesh. As particle size is 3-5 mm, the general waist width around 5mm, the gap between the knife and the screen is less than 3mm.

Fruit shredder machine Manufacturer

Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...

If you have any questions about fruit shredder machine, fruit shredder, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
