We're professional grape crusher and destemmer manufacturers and suppliers in China, to buy or wholesale grape crusher destemmer from our factory. For quotation or if you have any questions, contact us now for customized grape crushing machine and price.
This machine is developed by our company on the basis of introducing Italian and other foreign technologies, used for grape stem removal and grape crushing, is the necessary equipment for grape juice or wine pre-processing.
This machine has the characteristics of high separation effect, low noise, long service life and so on.

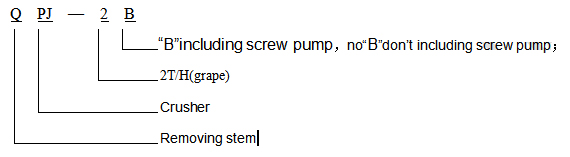

Type | QPJ-0.5 | QPJ-2B | QPJ-5B | QPJ-10B | |
Capacity | 0.5-1T/H | 1-2T/H | 4-6T/H | 8-10T/H | |
Mesh diameter | φ300mm | φ400mm | φ500mm | φ600mm | |
Total Power | 0.8KW | 4.05KW | 8.8KW | 15.7KW | |
Rotary screen | Power | — | 0.55KW | 1.5KW | 3KW |
Speed | — | 9.5r/min | 9.5r/min | 9.5r/min | |
Separation shaft | Power | 0.55KW | 0.75KW | 2.2KW | 3KW |
Speed | 40-200/r/min | 40-200/r/min | 60-300/r/min | 60-300/r/min | |
Crusher | Power | 0.25KW | 0.55KW | 1.1KW | 2.2KW |
Speed | 35r/min | 35r/min | 35r/min | 35r/min | |
Screw pump | Power | — | 2.2KW | 4KW | 7.5KW |
Speed | — | 200-1000/r/min | 200-1000/r/min | 200-1000/r/min | |
Dimension (mm) | 1350×600×1000 | 1800×700×1200 | 2500×800×1300 | 3000×900×1400 |
According to user requirements to choose whether to equip with screw pump,the above parameters are for reference only, and the right of interpretation is the manufacturer.

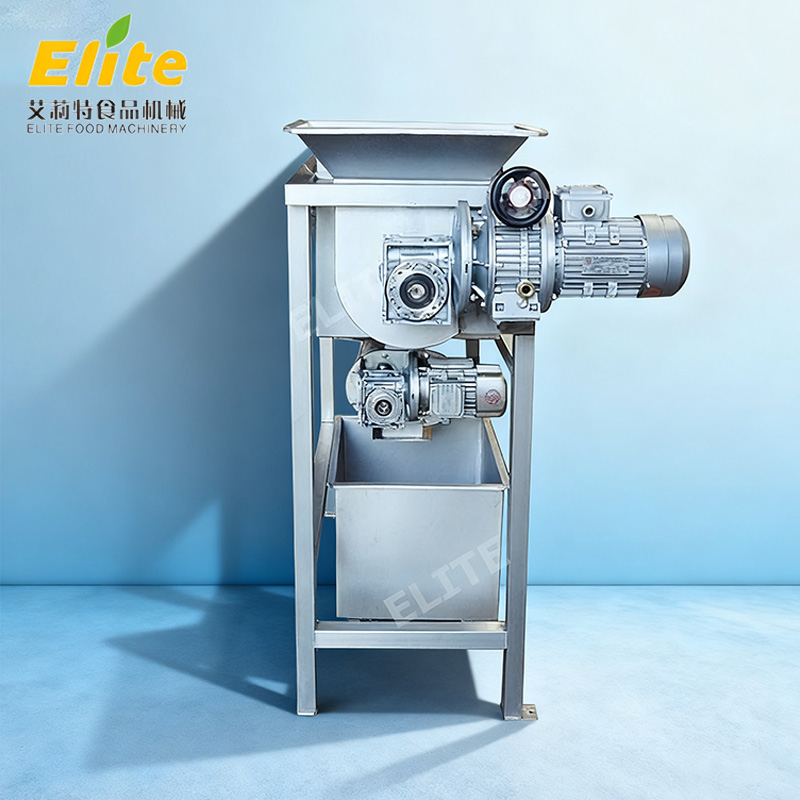

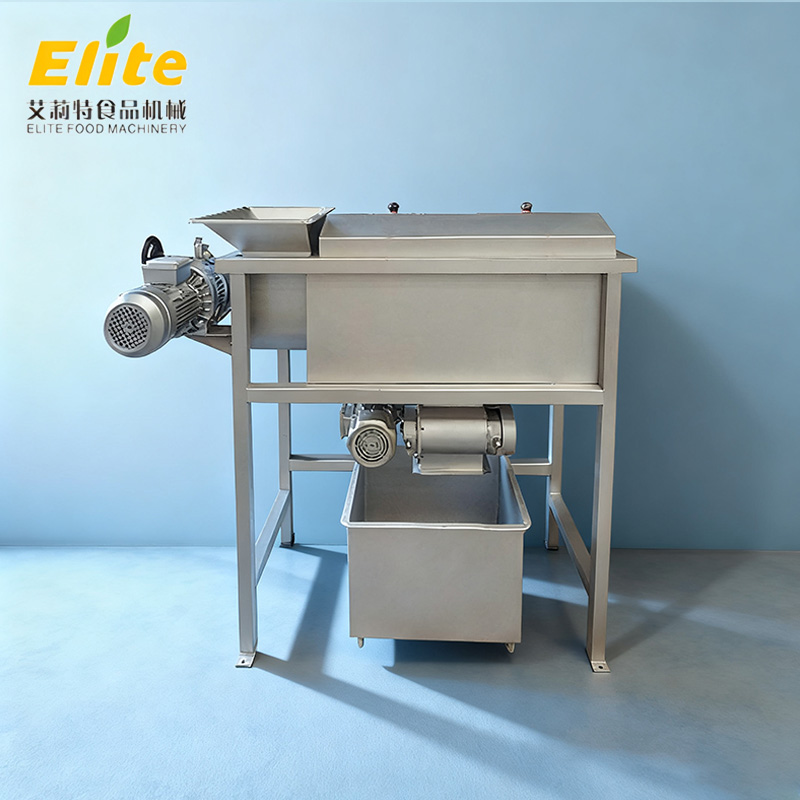

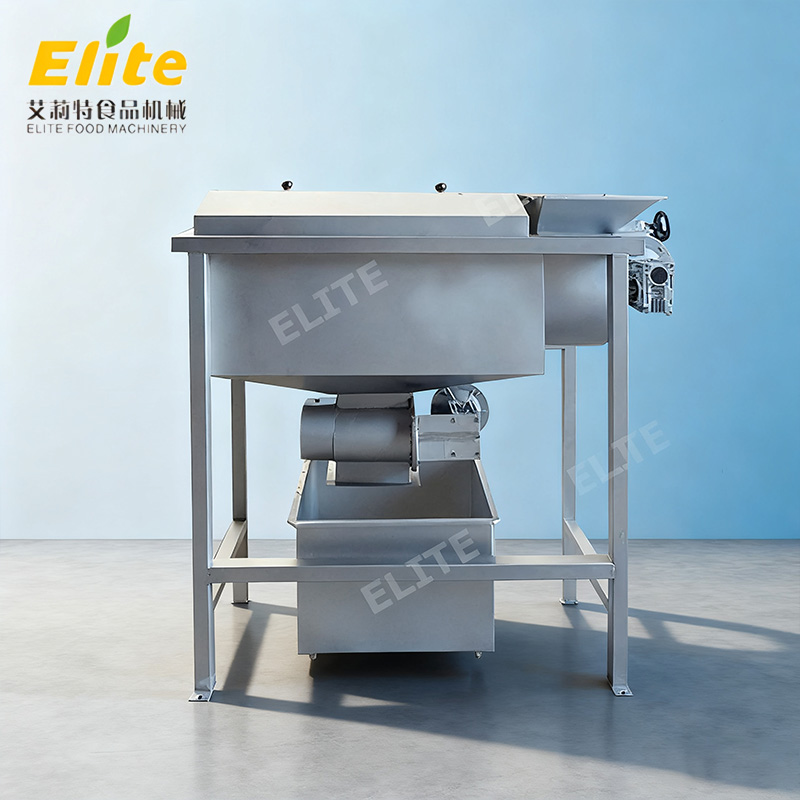

The equipment is composed of feed hopper, rotary screen, separation shaft, frame, transmission and control cabinet of each device (see drawing for details).
Grape from elevator to feed hopper,Through the feed hopper into the separation unit (decluch shaft and turn screen combination),Under the action of the separation shaft and the rotating screen, the grape or grape flesh leaked out from the screen hole,The left and right screw conveyors on the rotary screen fall into the fruit crusher,The grapes are crushed under the action of two plum flower rollers, and then transported to the next process by the push screw pump.
Model QPJ-0.5 and Model QPJ-2 conveyer screw pumps can be selected according to user requirements.
1、 Rotary screen:There are left-and-right twisted dragons on the outside, which can effectively push the separated material to the collecting groove;
2、 Separation shaft:①The helical angle of the blade can be adjusted according to the actual situation;②The rotating speed is controlled by mechanical stepless speed regulation, depending on the separation effect of the rotary screen;
3、 Electrical control: leakage protection and overload protection;
4、 The equipment is made of SUS304 stainless steel and meets the requirements of food processing;
