We're professional industrial garlic peeler manufacturers and suppliers in China, to buy or wholesale garlic peeling machine from our factory. For quotation or if you have any questions, contact us now for customized garlic skin remover machine and price.

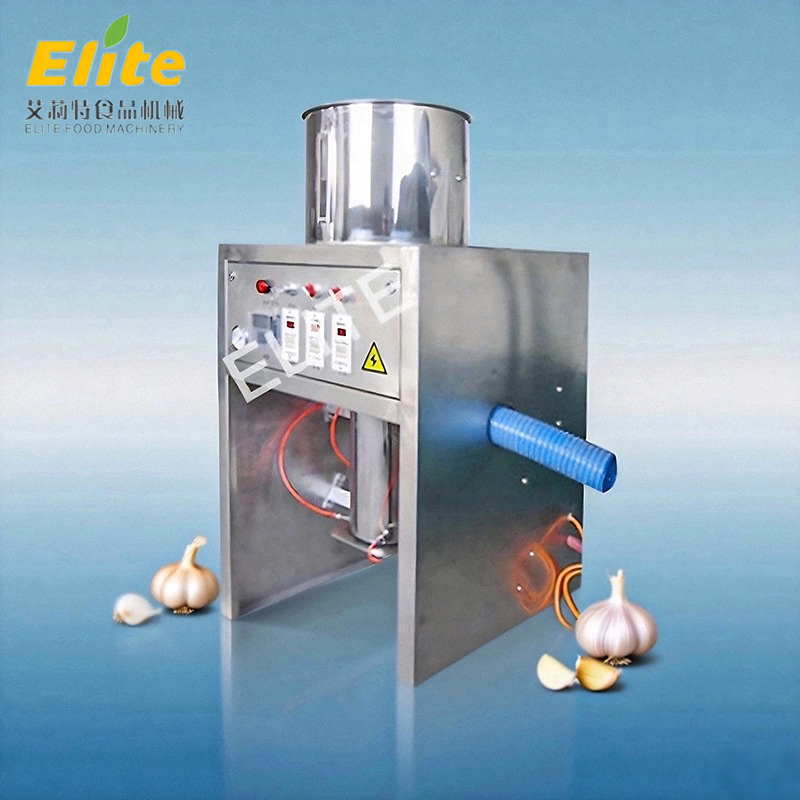

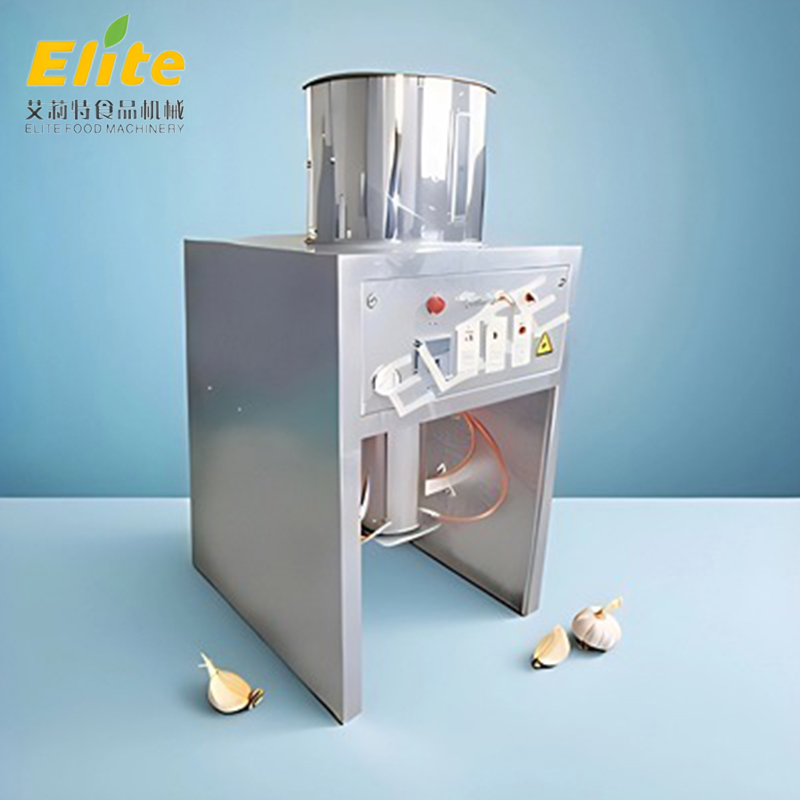

This product is powered by compressed air, which produces strong swirling air to force garlic to peel naturally. The process of processing is controlled by electric and pneumatic automatic control,so that garlic feeding, peeling and discharging can be completed at one time.
Model | Capacity(kg/h) | Matching Power (Air Compressor) | Dimension(mm) |
TP-300 | 250-300 | Exhaust volume: >1.0m3/min Pressure: 1.0MPa Power: 7.5-11KW | 960×580×1380 |
TP-400 | 400-600 | Exhaust volume: >2.0m3/min Pressure: 1.0MPa Power: 15-18.5KW | 1280×580×1390 |
Dry-type Garlic Peeling Machine -- Motor-Powered

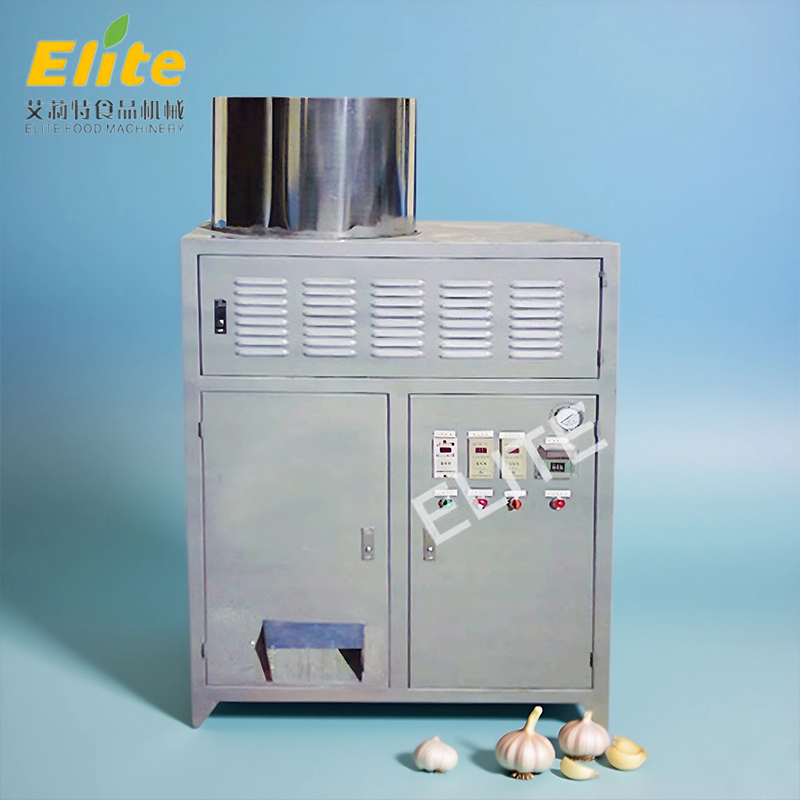

The dry-type garlic peeling machine is driven by a motor. During processing, it uses a belt pulley speed variation transmission system to rotate the main shaft of the silicone rubber plate. The garlic cloves are subjected to an instantaneous centrifugal flexible squeezing and rubbing within the gap between the silicone rubber plate and the upper silicone rubber tapered disc, achieving garlic peeling. By adjusting the gap between the silicone rubber plate and the silicone rubber tapered disc, the machine achieves an optimal peeling effect with a peeling efficiency of over 95%. The external exhaust fan can separate and recover the garlic skin and stems during the processing. This machine features a compact structure, stable performance, time and energy-saving operation, low wear, and is easy to use and maintain.
1. High peeling efficiency for garlic.
2. All-dry peeling, no water required, eco-friendly.
3. Gentle on garlic cloves, prolongs storage life.
4. Handles cloves of all sizes, ensuring complete peeling in one go.
5. Compact design, space-saving.
6. Reliable performance, practical, safe, easy to maintain, user-friendly.
This machine needs to be equipped with an air compressor to generate a powerful airflow, creating a vortex to remove the outer layers of garlic cloves and red onions, leaving a smooth outer skin with minimal damage. It is suitable for the fresh-cut vegetable processing and garlic processing industries.
1. After washing the knife or cleaning parts that come into contact with food, you must dry them with a dry cloth before reassembling them onto the machine;
2. The spindle of the knife needs to be lubricated and maintained with edible oil. If the knife becomes dull, it can be disassembled and sharpened with an oilstone;3. Every six months, add engine oil to the reducer box, and every quarter, add lubricating oil to the machine's bearings, chains, gears, and other transmission components.
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about industrial garlic peeler, garlic peeling machine, garlic skin remover machine,electric garlic peeler machine, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
