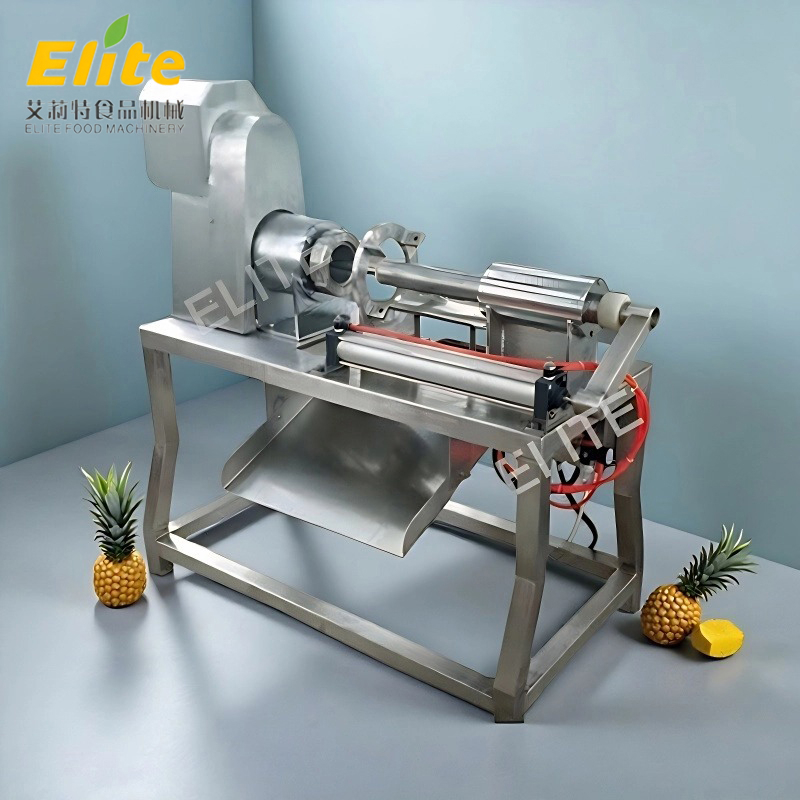

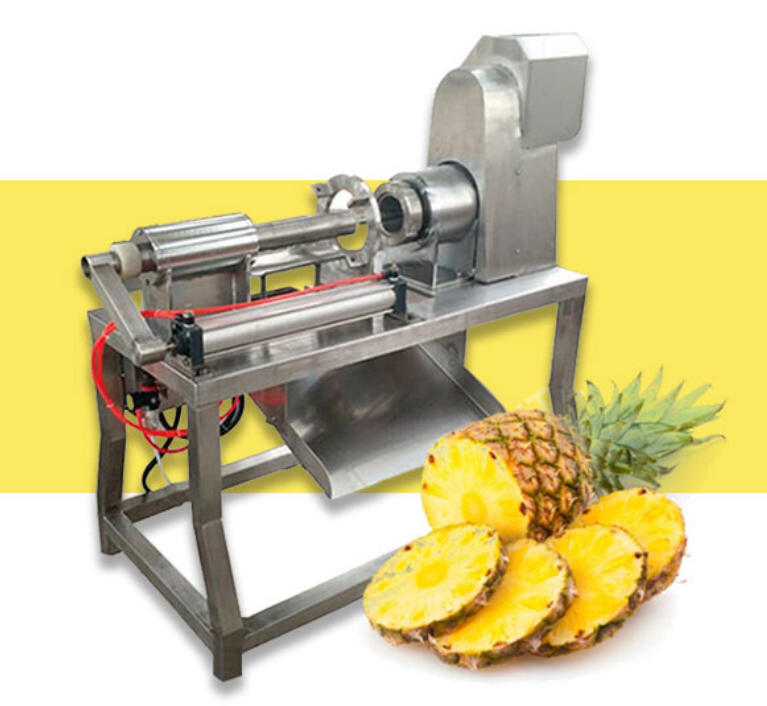

The machine uses mechanical transmission and pneumatic control to complete peeling and core process of the pineapple to obtain a cylindrical pineapple.
This machine is used for pineapple peeling and coring, suitable for canned food production lines, troops, factories and mines, schools and enterprises and institutions.
Type | Capacity (t/h) | Voltage | Power(KW) | Dimension(mm) | Quantity |
TQPJ-1 | 8-10pcs/min | 380V/50HZ | 0.75kw | 1200 x700 x 1300 | 1pcs |
Matched air compressor: Air compressor:3KG~4KG, prepared by customer | |||||

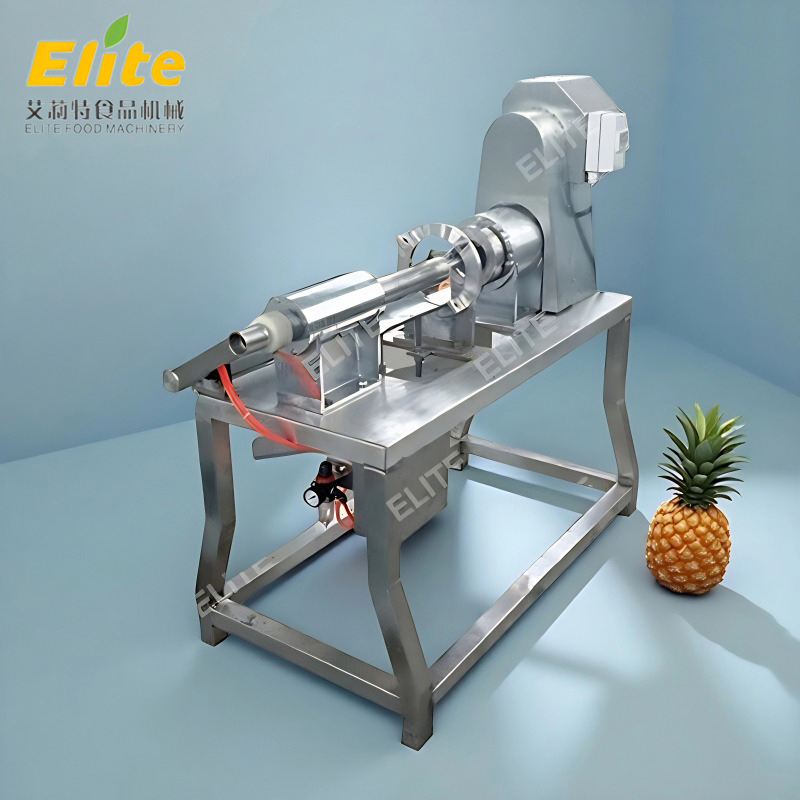

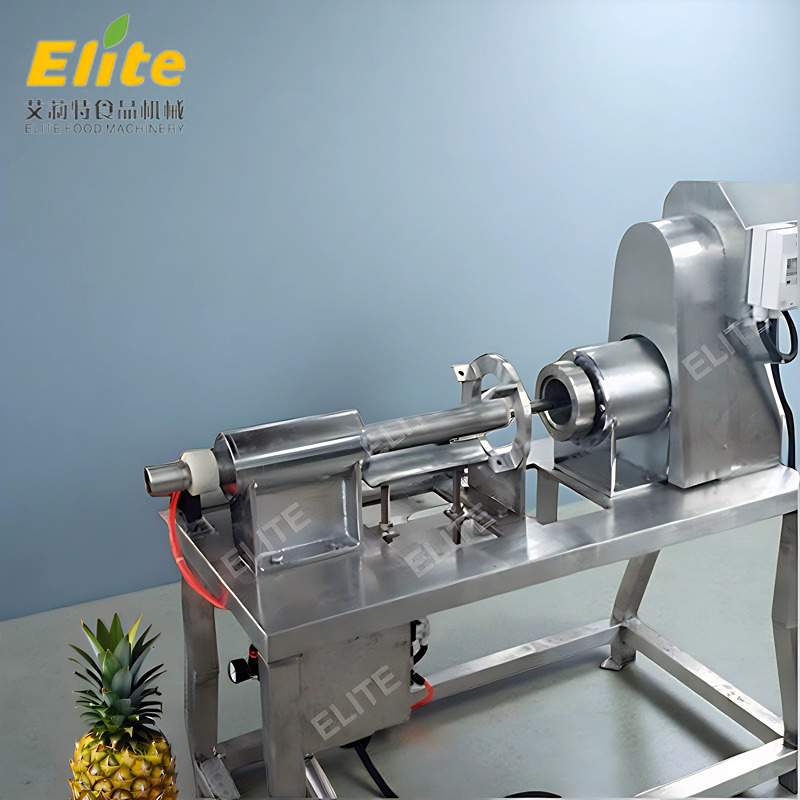

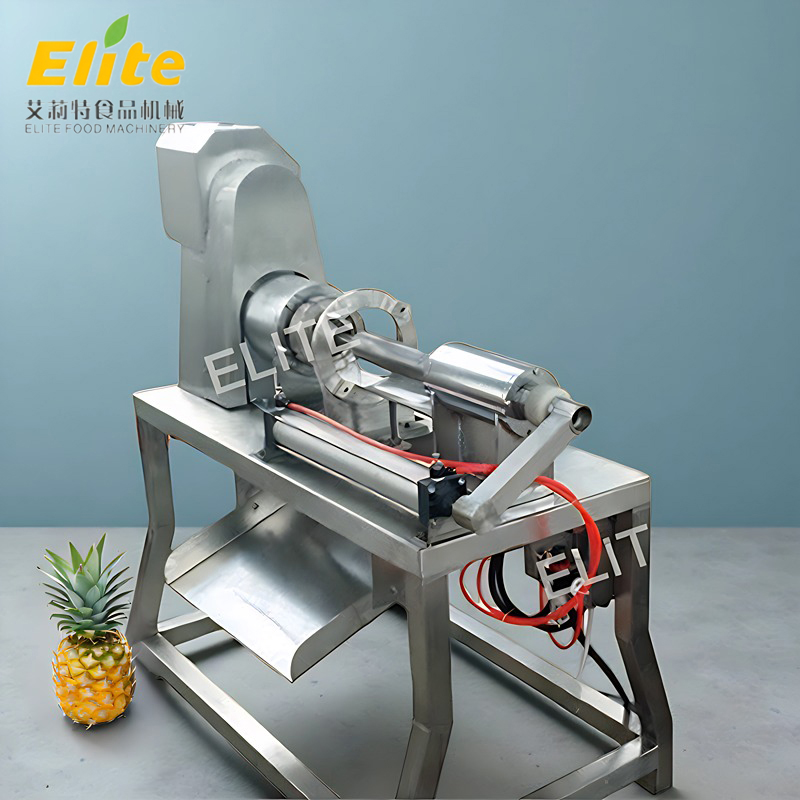

This machine is mainly composed of the machine body, the working cylinder, the rotating mechanism and the driving part. Air cylinder-driven push rod and through-core tube for back and forth movement.
During working, pineapple with artificial cut off both ends of the head and tail, then artificial placed in the discharge rack, put the material rack can adjust the center height; connected to the air source, the pineapple will be pushed forward by the cylinder, The pineapple skin will be cut, pushed into the high-speed rotation of the peeling drum, remove the pineapple skin. While putting the core tube through the pineapple core stabbed out, resulting in cylindrical pineapple pulp, if only need to peel the pineapple, can remove the coring cylinder.
When the pineapple body is placed on the tray, observe whether the height of the pineapple body is right at the center of the peeling. If not, please adjust the height of the tray.
Choose the size of the peeler knife and install the same size as the pineapple.
After the above adjustments are in place, tighten the fixed bolts of each part, open the rotating motor, and step down the cylinder switch. Pushes the pineapple body towards the rotating cylinder through the Transmission mechanism. The pineapple body is moved through the skin scraper, and then the pineapple skin is removed by the high-speed rotating cylinder cutter.
The push rod is designed as a two-stage push rod. The first-stage push rod pushes the pineapple body to move. The second-stage push rod is a core knife.

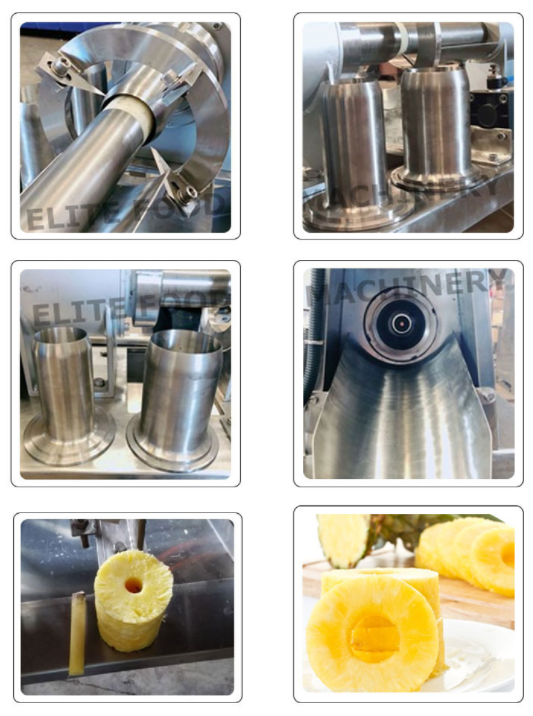

Cylinder knife: 3pcs, size: 60mm 70mm 80mm
Coring cylinder: 1pcs, Φ23mm
