We're professional pineapple pulp making machine manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.

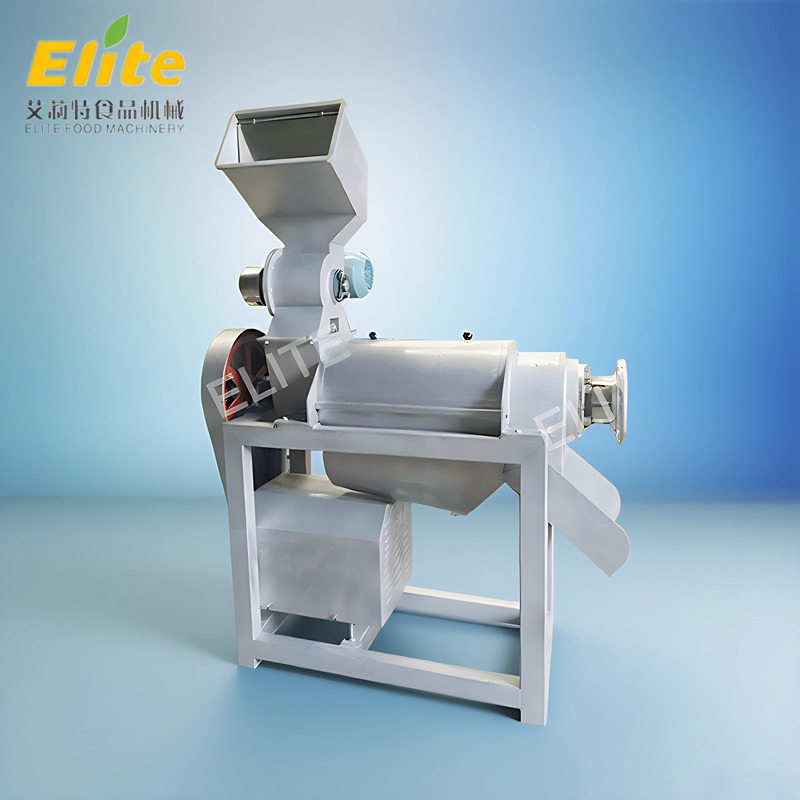

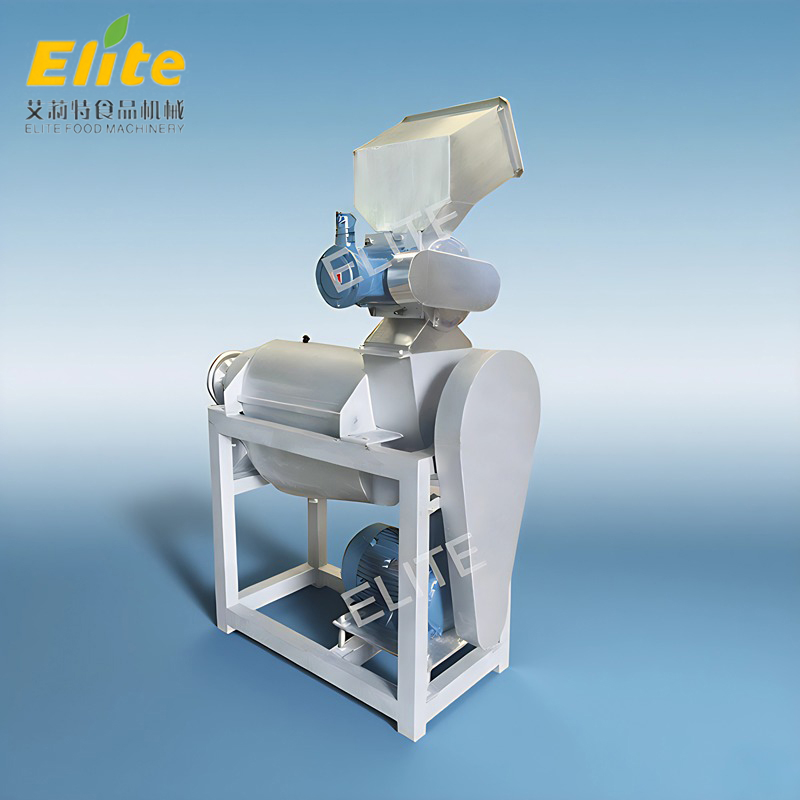

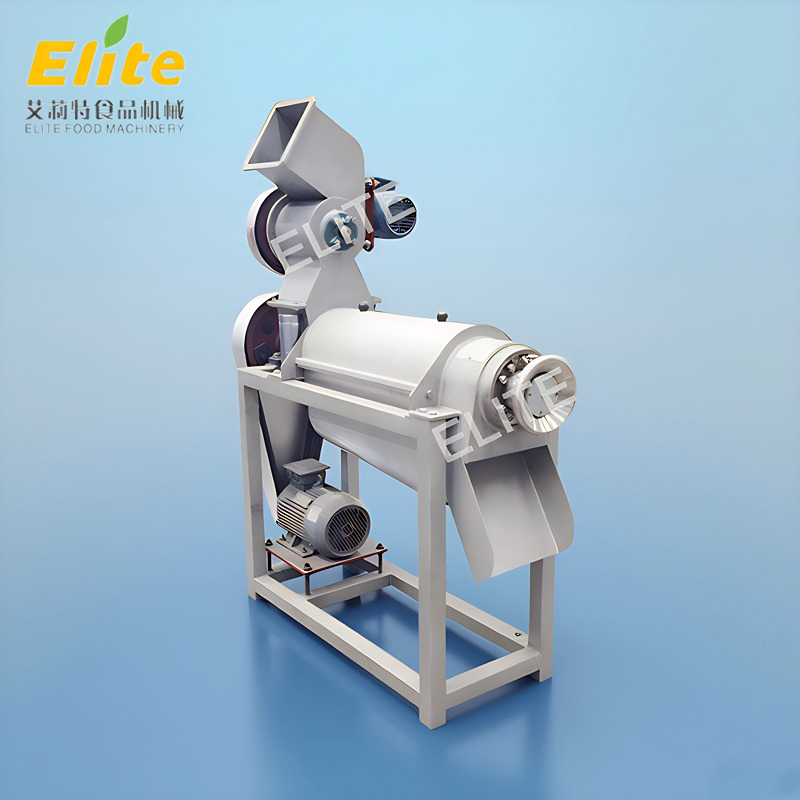

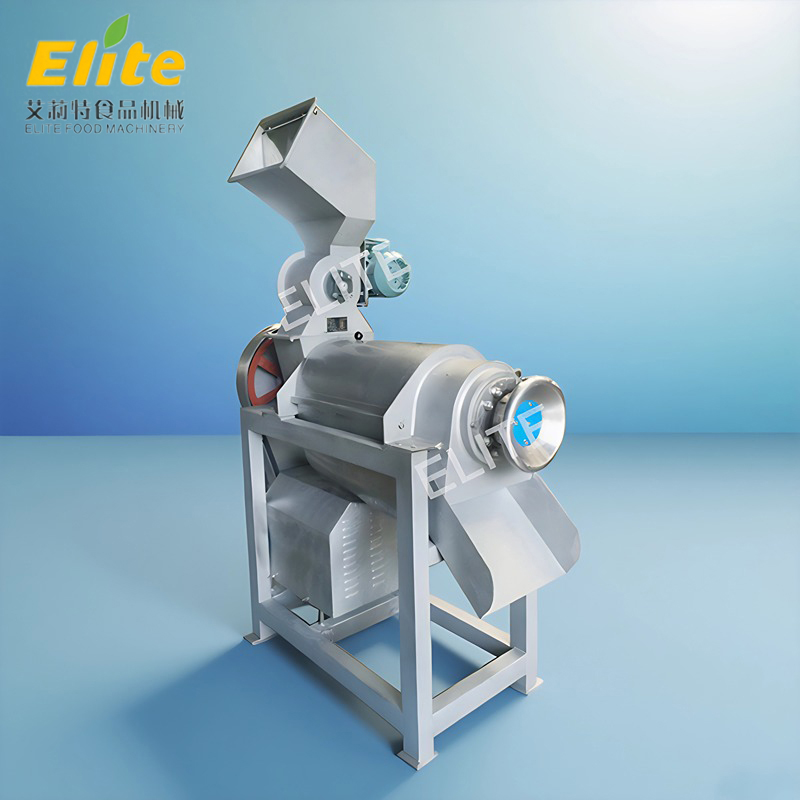

The equipment integrates crushing and spiral juicing, realizing first crushing and then juicing of fruits and Vegetables. It is mainly suitable for crushing and juicing various fruits and vegetables.
The machine is suitable for crushing and juicing all kinds of berries, nuts and vegetables, fruit and vegetables are crushed for juice.
Used for squeezing juice of vegetables, celery, spinach, tomato, pineapple, pear, apple,lemon and orange.

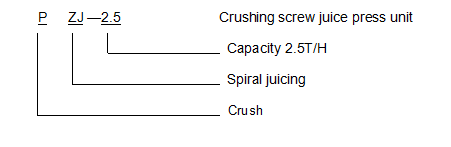

Type No. | Capacity T/H | Power KW | Dimension mm |
PZJ-0.5 | 0.5 | 3 | 900×350×1100 |
PZJ-1.5 | 1.5 | 5.5 | 1500×450×1640 |
PZJ-2.5 | 2.5 | 11 | 1600×700×1760 |
It is composed of crushing device, front support seat, screw, filter screen, juicer, back support, slag groove and other parts in the feeding hopper, left end of the screw spindle is supported in the mobile bearing seat and the right end is supported in the bearing seat of the handwheel shaft work.
The main component of the equipment is the installation of crushing device on the hopper, the rotor has four groups of knife base knife one group, flying knife around its own axis in fixed.
The fixed bottom knife clearance rotation, so that fruits and vegetables get particle size 2-5 mm broken, directly into the screw juicing system, in order to improve the juicing.
The main component of the screw juice is the screw, the screw along the slag outlet direction bottom diameter gradually increased and the screw pitch gradually decreased, when the material.
When driven by the screw, the volume of the screw cavity shrinks, forming a material squeeze. The rotation direction of the screw spindle is from the feeding hopper to the slag tank
Go clockwise.
The raw material is added to the hopper, which is pressed under the advance of the screw, and the pressed juice flows through the filter to the bottom juicer, while the waste material.
Then it is discharged through the annular gap formed between the spiral and the tapered part of the pressure regulator. The size of the gap can be adjusted by the movement of the pressure regulator head along with the axis. When turning the handwheel bearing seat clockwise (from the prepared slag outlet groove to the hopper end, the pressure regulating head turns to the left, the gap is narrowed, otherwise the gap is closed.
Bigger.) Change the size of the gap, that is, adjust the resistance of slag discharge, can change the slag rate, but if the gap is too small, under strong extrusion. Some of the slag particles and juice together through the filter is extruded, although the juice increased, but the quality of juice is relatively decreased, the size of the gap should be seen. The specific technological requirements of the user shall be determined.

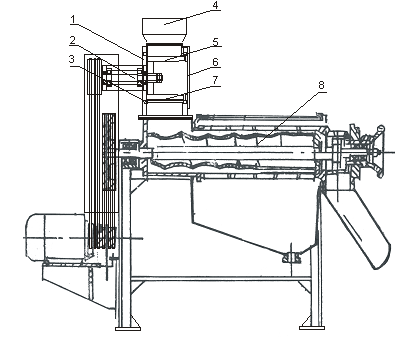

1、Crushing Part
2、Broken Shaft
3、Fracture of the Stator
4、Inlet Hooper
5、Crusher Rotator
6、Broken large side cover
7、Crush Blade
8、Spiral Press
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about pineapple pulp making machine, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
