Single Effect Vacuum Evaporator

Single effect vacuum evaporator is also called vacuum evaporator.

● Evaporating temperature:50-55℃;
● Steam pressure: ≤0.15MPa;
● Type:jacket blebding type;
● Vacuum degree:-0.083-0.0906MPa;

Availability:



Inquire Add to Basket

single effect vacuum evaporator vacuum evaporator vacuum evaporator price

Product Description

We're professional single effect vacuum evaporator manufacturers and suppliers in China, to buy or wholesale vacuum evaporator from our factory. For quotation or if you have any questions, contact us now for customizedand price.

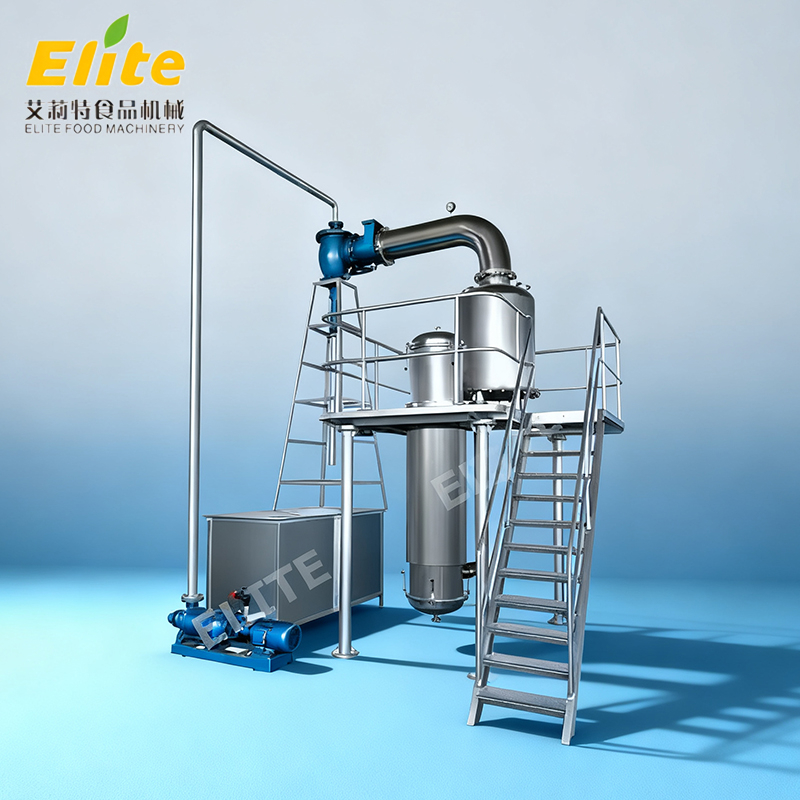

The equipment is a single -effect continuous external circulation vacuum concentrator, suitable for continuous evaporation of heat sensitive materials (such as fruit juices , vegetable juices, liquid medicines and other flowing materials) under vacuum and low temperature ,so as to reach the effect of concentrating fruit juices, etc.

Technical parameters

Model	Evaporation(l/h)	Circulating waterConsumption(m³/h)	Steam Consumption(kg/h)	Power(kw)	Heat exchange(m²)	Dimension(mm)
NS-300	300	11.6	330	5.5	2.67	3000x2700x4700
NS-500	500	19.3	560	7.5	4.6	3100x2800x4700
NS-1000	1000	39	1130	7.5	10	3200x2900x4700

Single effect vacuum evaporator Manufacturer

Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...

If you have any questions about single effect vacuum evaporator, vacuum evaporator,please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
