We're professional stirring evaporator manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.

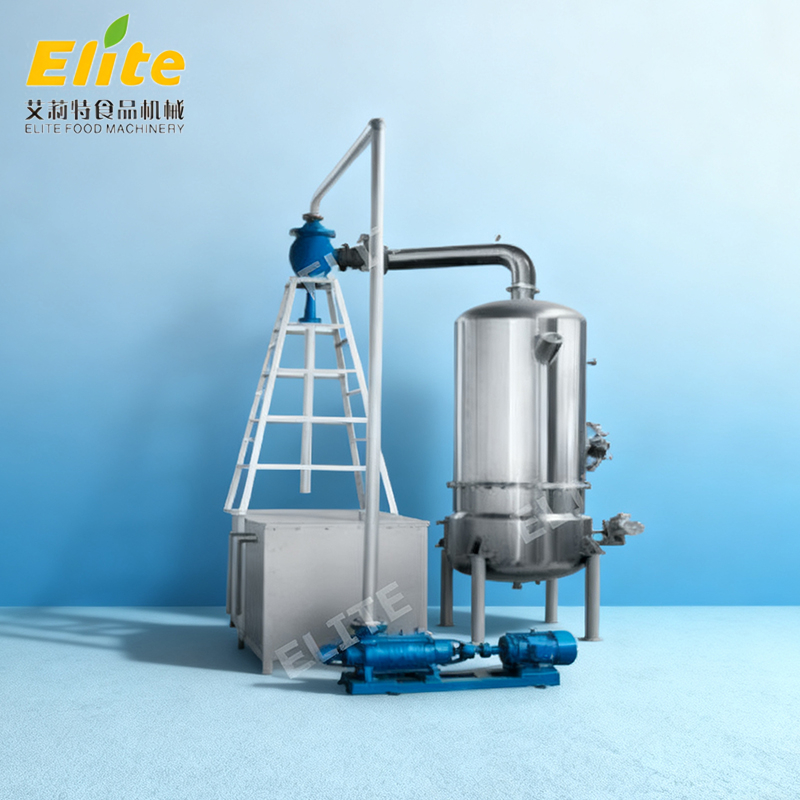

The equipment is a single-effect vacuum concentration equipment, which mainly consists of body, heater, foam catcher, agitator, hydraulic ejector, check valve, water circulation pump, water tank and control cabinet.
It is suitable for the concentration of some thermosensitive or high viscosity materials in vacuum condition. It is a medium and small size jam, preserves, syrup, milk, soya milk crystal. Food glue and other production of more ideal enrichment equipment. In addition, it is suitable for some materials which are prone to crystallization in the process of concentration.
1. Capacity:500L/H;
2. Heating area:3.2 m2
3. Circulating water consumption:32m3/H,water temperature:≤20℃;
4. Power:9kw;
5. Gas consumption:≤600kg/H,pressure:＜0.15MPa;
6. Stirring speed:24r/min;
7. Vacuum degree:-0.085～-0.092Mpa;
8. Evaporation temperature:65℃～40℃;
9. Dimension:2500×2400×3500
10. The circulating water is cooled by the cooling tower and provided by the user, and the cooling and circulating pump is provided by the user ≥ 100m3 reservoir.
First fill the tank with water temperature ≤ 20 ℃, close the manhole, exhaust valve, inlet and outlet valve；Start water circulation pump and mixing device, Extracting vacuum in the body and heater, when the vacuum degree reaches -0.08MPa, open the feed valve starting feeding; When the material enters the heating section 200mm (from the mirror), close the feed valve; Open the steam inlet valve on the heater (the steam pressure is ≤ 0.15mpa) to heat and vaporize the materials on the heater.The vacuum degree in the pot is ≥ -0.085 MPA. When the material is concentrated for a period of time, the operator looks at the material in the pot from the upper mirror. When the material is below the heating section, the feed valve is opened properly and the sampling valve is opened when the material is concentrated for a certain time. When the required concentration is reached, close the steam valve, open the drain valve to destroy the vacuum, open the discharge screw pump to the next process, and repeat the operation.
1.The machine is equipped with the manhole for easy opening and cleaning;
2.Because there is a stirring device in the pot, it is suitable for evaporation and
concentration of high-viscosity materials;
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about stirring evaporator, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
