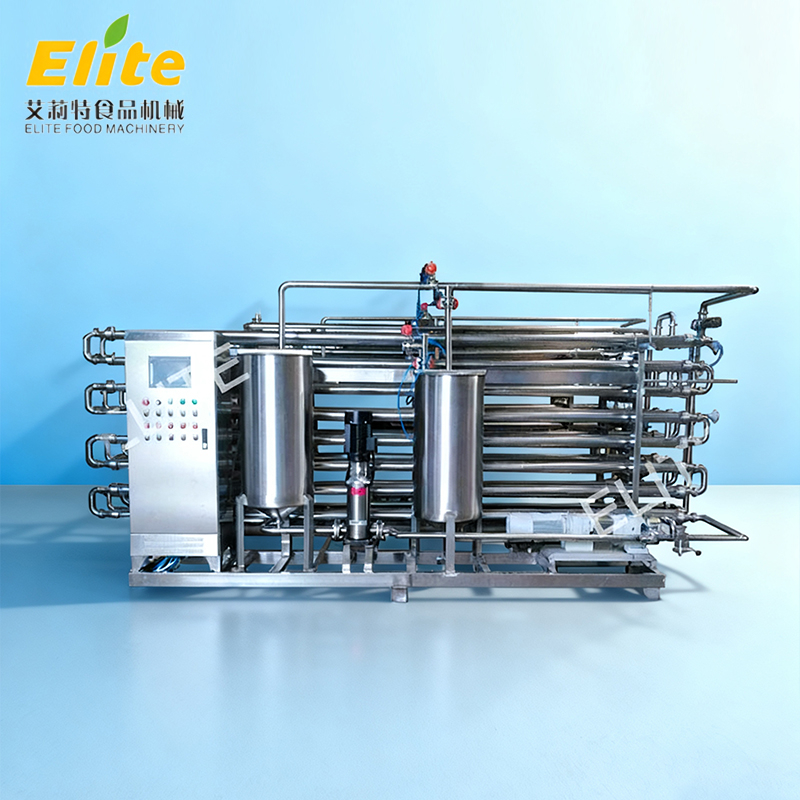

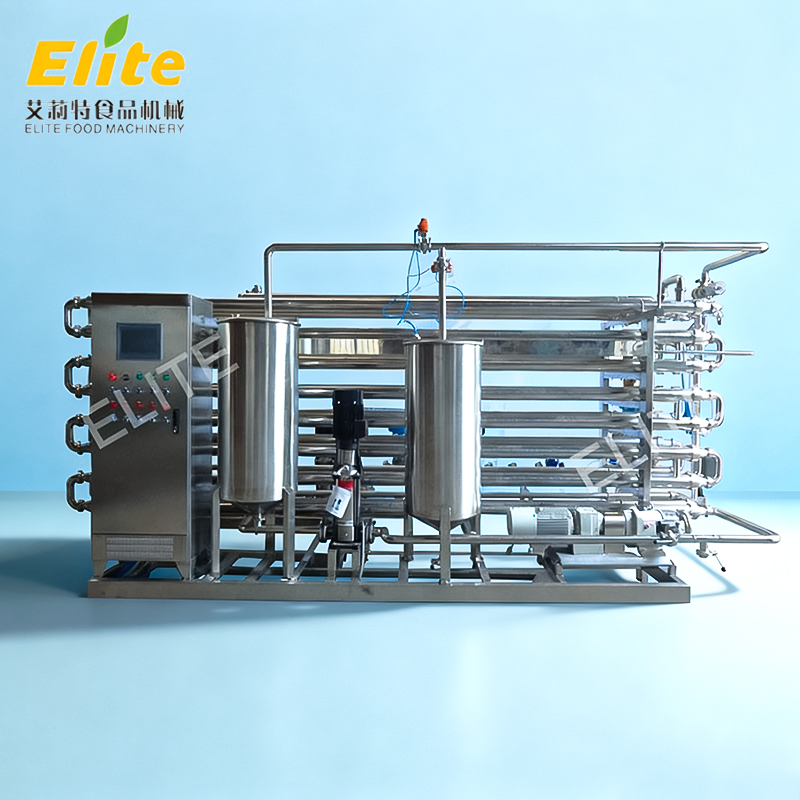

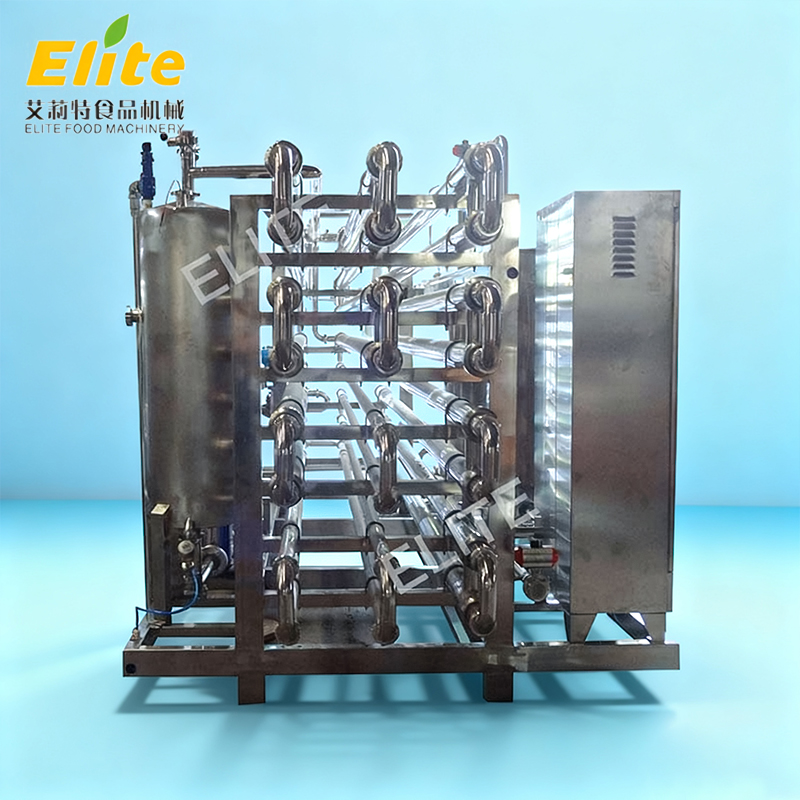

Tube In Tube Sterilizer

We're professional tube in tube sterilizer manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation or if you have any questions, contact us now for customized and price.

Scope of application: can be used for juice, tea drinks,milk drinks orsimilar products for continuous sterilization. Can be connected to homogenizer,degassing and other equipment.

Technical parameters

◆5℃→65℃(homogenizer)→137℃(3-5S)→20℃-25℃, for aseptic filling;

◆5℃→65℃(homogenizer)→115℃/125℃(5-15S)→88℃-90℃, for hot filling;

◆5℃→65℃(homogenizer)→115℃/125℃(5-15S)→75℃-78℃, for middle temperature filling;

Tubular sterilizer performs the hot processing on the liquid foods and beverage. Compared to the other model, it has the following characteristics:

◆High heat efficiency,90% of heat can be reused after the product be processed;

◆The temperature difference between the heating medium and the material is small, the heat exchange tube adopts bellows.the heat exchange efficiency is high, the scale is less, and the working time of the sterilizer is increased.

◆It is of high degree automatic, can automatically control theCIP cleaning, self sterilizing, and the whole procedures steps;all the procedures are recorded and controllable;

◆It is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate.product flow rate are all controllable;

◆The inside of the tubular adopts advanced polish pracedure,/all tubes can perform fully cleaning, self sterilizing ensures the system at asptic state;

◆The system is strong safety, the fittings all adopts reliable materials;

◆The system is of high reliable, main parts such as product pump, hot water pump. all kinds of valves, elements of the electrics are all of world known brands.

Tube in tube sterilizer Manufacturer

Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...

If you have any questions about tube in tube sterilizer, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
