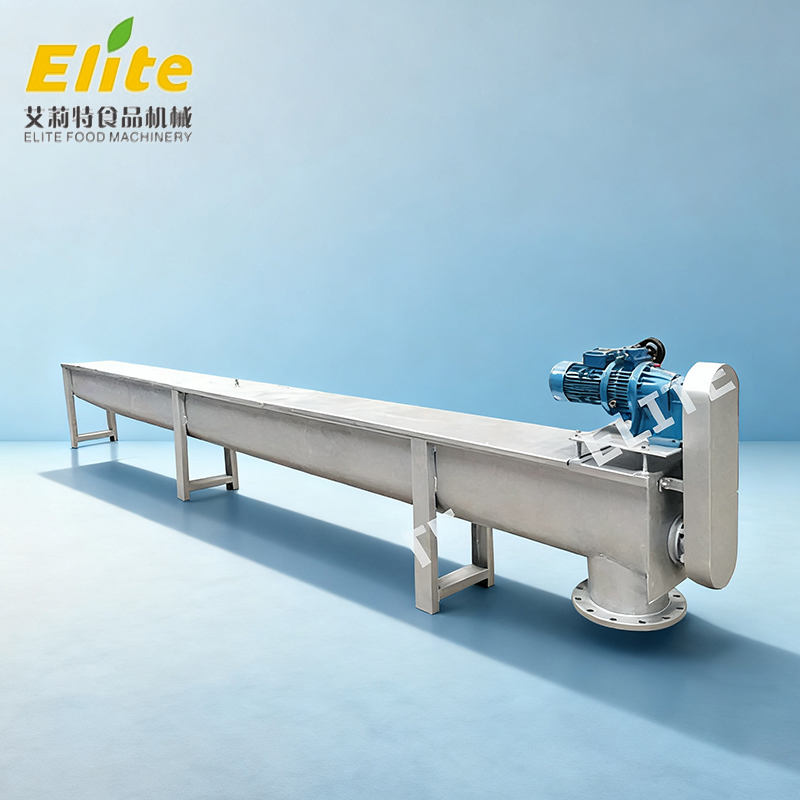

We're professional horizontal screw conveyor manufacturers and suppliers in China, to buy or wholesale honrizontal spiral conveyor elevator from our factory. For quotation or if you have any questions, contact us now for customized spiral conveyor elevator and price.
This machine is the use of motor or reducer to drive the screw rotation, in the fixed shell passage of material to achieve the purpose of conveying or lifting machinery.Three forms: horizontal, inclined conveyor or vertical transfer,Horizontal transmission, tilting conveyor lifting of the shell in the form of a "U" or "O" type.
The machine has the advantages of simple structure, small area, low noise, easy to use, easy to transport, improve, and can be more or more to feed or discharge.It is an ideal equipment for conveying all kinds of powder, granular and small bulk material (such as cement, coal, coal, food, salt, chemical products, food crops, etc.). If the conveying and lifting of fruits and vegetables (such as apple, pear, tomato, citrus and other fruits and vegetables) can design the anti breaking device, the breakage rate of less than 1‰.
Screw conveyor lift to the scene, the first to the expansion of the screw fixed machine, vertical screw hoist, requiring the user to its upper part according to the specific situation of the workshop, fixed parts in the motor or reducer (see diagram below). The material is sent to the feed port evenly, and the material is under the screw, and the material is out of the mouth.
When the vertical conveyor lift conveyor to enhance the whole fruit and vegetable,the machine set fruit and vegetable shatter-proof device (see map), the principle is the fruit and vegetable directly into the bottom of the water supply in the box body using water (water height more than spiral about 20 cm), fruits and vegetables floating on the water.When fruits and vegetables into the pitch, screw the upward, fruits and vegetables and water at the same time，and then the water from the side of the back six back to the box, if the vegetable is just into the spiral section, fruit and vegetable use of water, the fruit and vegetable will be partial to the next pitch, fruits and vegetables are not easy to damage.In the fruit and vegetable up to the top, the spiral cut out of the bottom of the material mouth (the bottom end of the feeding mouth is not spiral), to prevent the top of the fruit and vegetable cover and the upper end of the friction, the fruit and vegetable damage, so as to achieve the effect of breaking。
The whole screw of the gravity in the upper part, fixed in the upper part of the two thrust bearings, and the nut lock to prevent sagging, the bottom of the sliding bearing stability of the screw shaft of the radial force, sliding bearings with wear resistance, no lubrication, in line with food requirements.
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about horizontal screw conveyor, Honrizontal spiral conveyor elevator, spiral conveyor elevator, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
