We're professional air bubble washing machine manufacturers and suppliers in China, to buy or wholesale bubble wash washing machine from our factory. For quotation or if you have any questions, contact us now for customized air bubble vegetable washer and price.

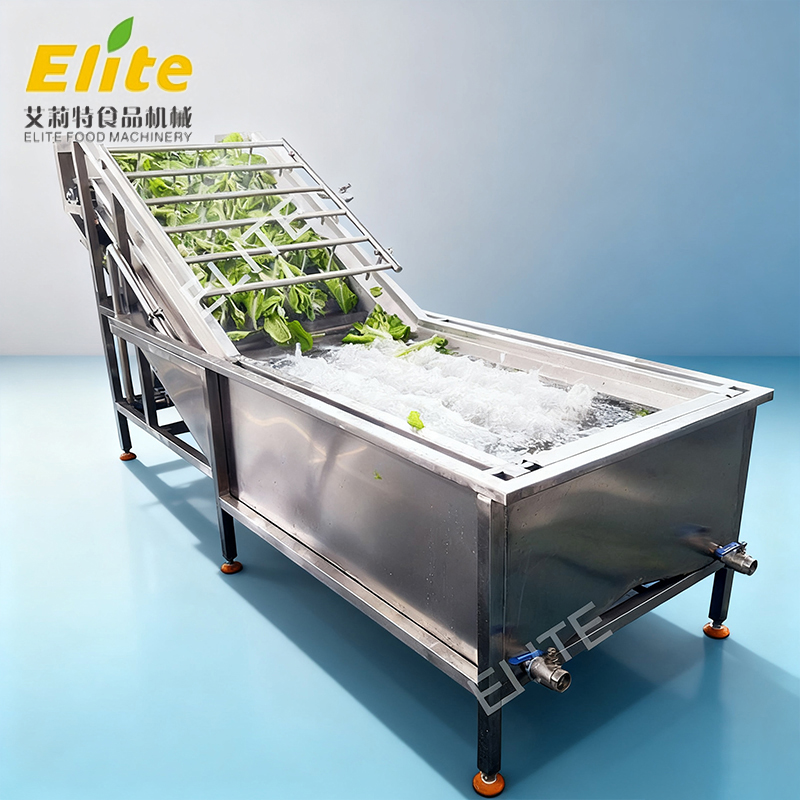

This equipment integrates soaking, bubbling, rinsing, spraying and lifting into one high-efficiency vegetable cleaning equipment. It has the characteristics of simple operation, clean cleaning, stable performance, long service life, low noise, and convenient operation and maintenance. It is widely used in various fruits and vegetables. Cleaning is the best choice for fruit and vegetable processing food factories.
CXJ surf type fruit washing machine is suitable for washing fruits and vegetables whose specific gravity is less than or equal to 1;
SCXJ type water bath surf cleaning machine is suitable for cleaning fruits and vegetables with specific gravity greater than or equal to 1;
FCXJ type flip-board surfing cleaning machine is suitable for cleaning leafy vegetables or Chinese herbal medicine with a specific gravity less than 1;

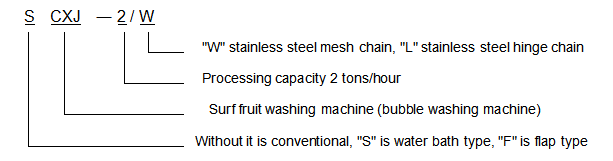

Model | Capacity kg/h | Power KW | Inner length of water tank×Inner width mm | Note |
CXJ-1 | 500-1500 | 2.6 | 1000×560 | Plastic module |
Stainless steel mesh chain, hinge chain | ||||
CXJ-3 | 2000-3000 | 2.6 | 1800×560 | Plastic module |
Stainless steel mesh chain, hinge chain | ||||
CXJ-5 | 4000-6000 | 3.75 | 1800×560 | Plastic module |
2000×750 | Stainless steel mesh chain, hinge chain | |||
CXJ-10 | 8000-12000 | 5.5 | 2000×710 | Plastic module |
2200×1000 | Stainless steel mesh chain, hinge chain | |||
CXJ-20 | 15000-20000 | 7.5 | 2440×1200 | Stainless steel mesh chain, hinge chain |
SCXJ-1 | 500-1500 | 2.25 | 2000×850 | Stainless steel mesh chain, hinge chain |
SCXJ-3 | 2000-3000 | 2.95 | 2440×1050 | Stainless steel mesh chain, hinge chain |
SCXJ-5 | 4000-6000 | 4.5 | 3000×1250 | Stainless steel mesh chain, hinge chain |
SCXJ-10 | 8000-12000 | 6.6 | 3660×1450 | Stainless steel mesh chain, hinge chain |
SCXJ-20 | 15000-20000 | 9 | 4880×1650 | Stainless steel mesh chain, hinge chain |
FCXJ-1 | 500-1500 | 1.65+0.18×2 | 1000×560 | Plastic module |
Stainless steel mesh chain, hinge chain | ||||
FCXJ-3 | 2000-3000 | 2.6+0.25×2 | 1800×560 | Plastic module |
Stainless steel mesh chain, hinge chain | ||||
FCXJ-5 | 4000-6000 | 3.75+0.37×2 | 1800×560 | Plastic module |
2000×750 | Stainless steel mesh chain, hinge chain | |||
FCXJ-10 | 8000-12000 | 5.5+0.37×3 | 2000×710 | Plastic module |
2200×1000 | Stainless steel mesh chain, hinge chain | |||
FCXJ-20 | 15000-20000 | 7.5+0.55×3 | 2440×1200 | Stainless steel mesh chain, hinge chain |
The above technical parameters are for reference only, and the actual conditions shall prevail;
CXJ type surf fruit washing machine is composed of water tank components, bubble device, anti-settling net, washing filter device, spray cleaning device, discharge hoist and control box (see the structure diagram for details); SCXJ type water bath surf washing machine It is composed of water tank components, bubble device, spray cleaning filter device, conveying hoist and control box (see the structure diagram for details); FCXJ type flip surfing cleaning machine is composed of water tank components, bubble device, anti-settling net, flushing filter device, Plate turning device, spray cleaning device, discharge hoist and control box, etc. (see structure diagram for details);
1、CXJ surf type fruit washing machine：The cleaned materials are poured into the water tank manually or by the feeding device. Due to the bubbling of the water in the water tank, the materials are constantly rolling and rubbing against each other in the water, and then the filtered water is used to flush the pump The material is washed and pushed to the discharge hoist. When the material is discharged from the hoist to the next process, clean water is further washed; the water of the washing pump passes through the filter system to filter relatively large particles or suspended solids ；
2、SCXJ type water bath surf cleaning machine：The material to be cleaned is poured into the water tank by manual or feeding device and transported forward on the conveyor net chain or conveyor chain plate. During the transportation process, the water in the water tank is bubbling, and the material continuously rolls in the water. Friction, and then use the filtered water to spray the material through the flushing pump. After the material is discharged, there will be clean water for further cleaning; the flushing pump water passes through the filter system to filter relatively large particles or suspended solids;
3、FCXJ type flip board surfing cleaning machine：The cleaned materials are poured into the water tank manually or by a feeding device, and the materials floating on the water are pushed into the water by the turning plate. Due to the bubbling of the water in the water tank, the materials continuously roll and rub against each other in the water , And then use the filtered water to spray and rinse the material on each flap through the flushing pump. After the material is discharged, there is clean water for further cleaning; the water from the flushing pump passes through the filter system to filter relatively large particles Or suspended matter;
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about air bubble washing machine, bubble wash washing machine, air bubble vegetable washer,bubble technology washing machine,bubble washing machine vegetable and fruit,fruit bubble washing machine,please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
