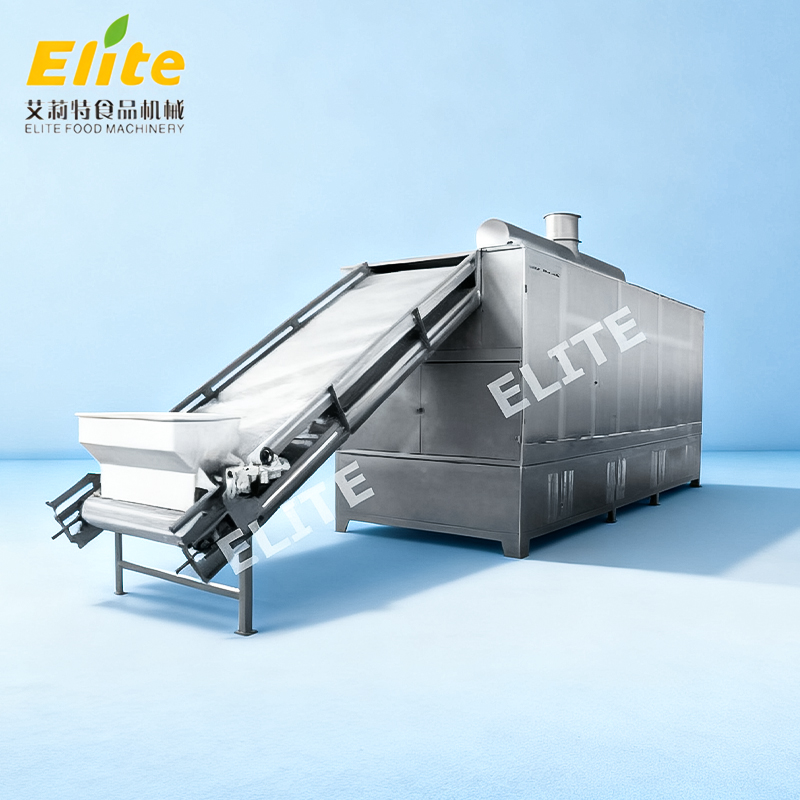

Belt Dryer Machine

Belt dryer machine is also called belt dryer in food industry or belt drying equipment.

● Efficient drying performance;

● Uniform drying effect;

● Gentle material handling;

● Energy-saving and cost-effective;

● Wide application range;

Availability:



Inquire Add to Basket

belt dryer machine belt dryer in food industry belt drying equipment

Product Description

We're professional belt dryer machine manufacturers and suppliers in China, to buy or wholesale belt drying equipment from our factory. For quotation or if you have any questions, contact us now for customized and price.

The machine is a continuous type drying device for batch production. It is used for drying slice, bar shaped and granule materials with good ventilation , and is especially suitable for materials with high water content and not allowing a high material temperature, such as dehydrated fruits and vegetables traditional Chinese medicine tablets etc. The machine has such advantages as rapid speed, high evaporation intensity and good product quality. It can also dry filter cake such as ointment materials and patticles made by wet-process.

Technical parameters

Model	DW-1.2-8	DW-1.2=10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10
Unit quantity	4	5	4	5	4	5
Belt width(m)	1.2	1.2	1.6	1.6	2	2
Drying section length(m)	8	10	8	10	8	10
Material thickness(mm)	10-80
Working temperature(℃)	50-120
Steam pressure(MPa)	0.2-0.5
Steam consumption(kg/h)	120-130	150-375	150-375	171-470	180-500	225-600
Heat exchanging area(m²)	272	340	352	440	448	560
Drying time(h)	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5
Drying internsity kg wate(r/h)	60-160	80-220	75-220	95-250	100-260	120-300
Fan quantity	5	6	5	6	5	6
Total power of fan(kw)	9.9	12.1	9.9	12.1	18.2	22.2
Total power of equipment(kw)	1.4	13.6	11.4	13.6	19.7	23.7
Dimension(mm)	9.77x1.5x2.83	11.77×1.5×2.83	9.77×2.24×2.83	11.77X2.24X2.83	9.77X2.66X3.5	11.77X2.66X3.5
