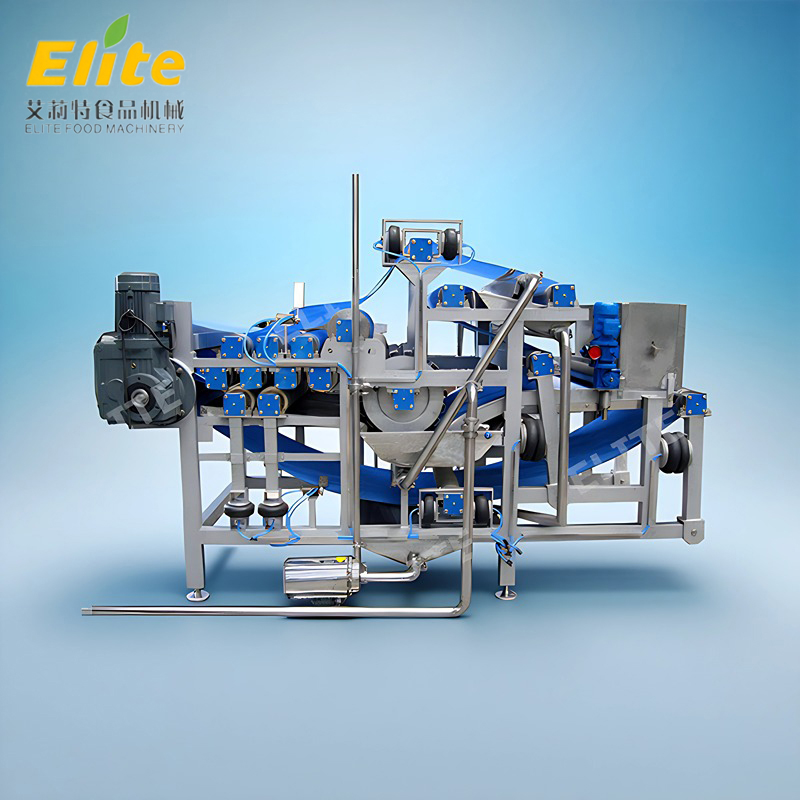

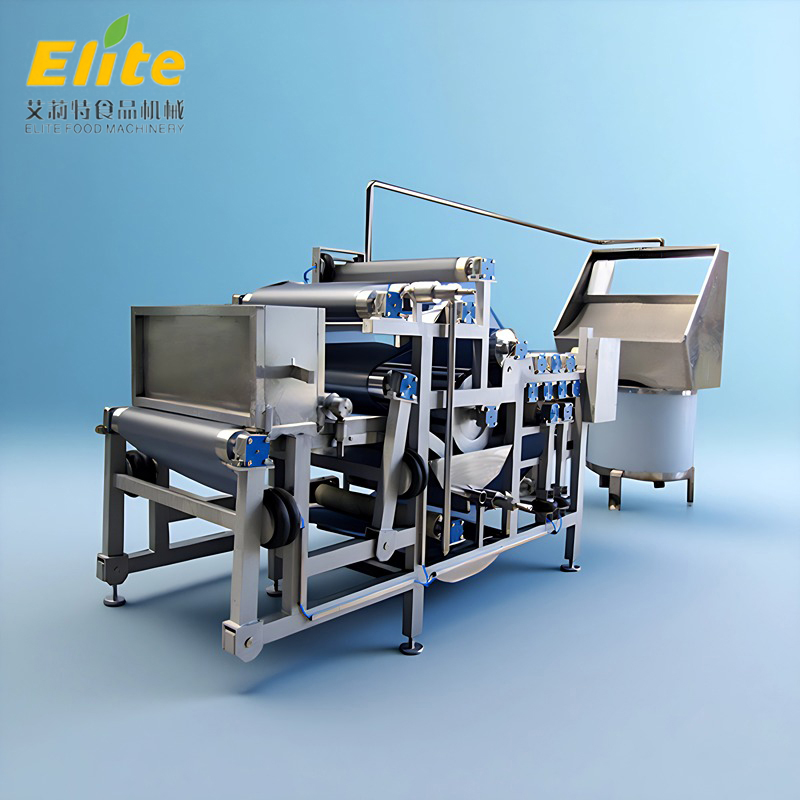

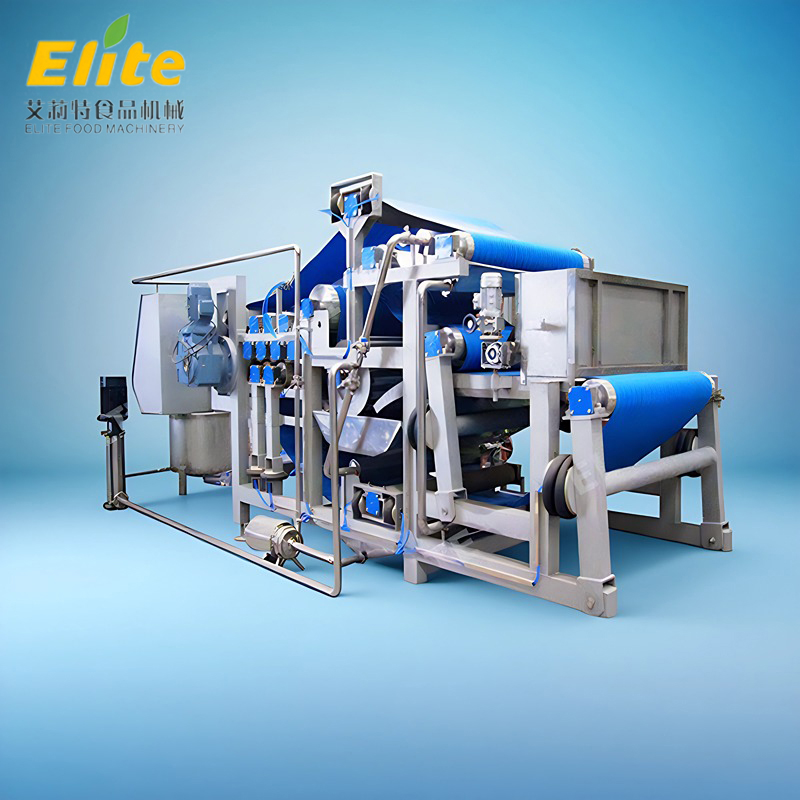

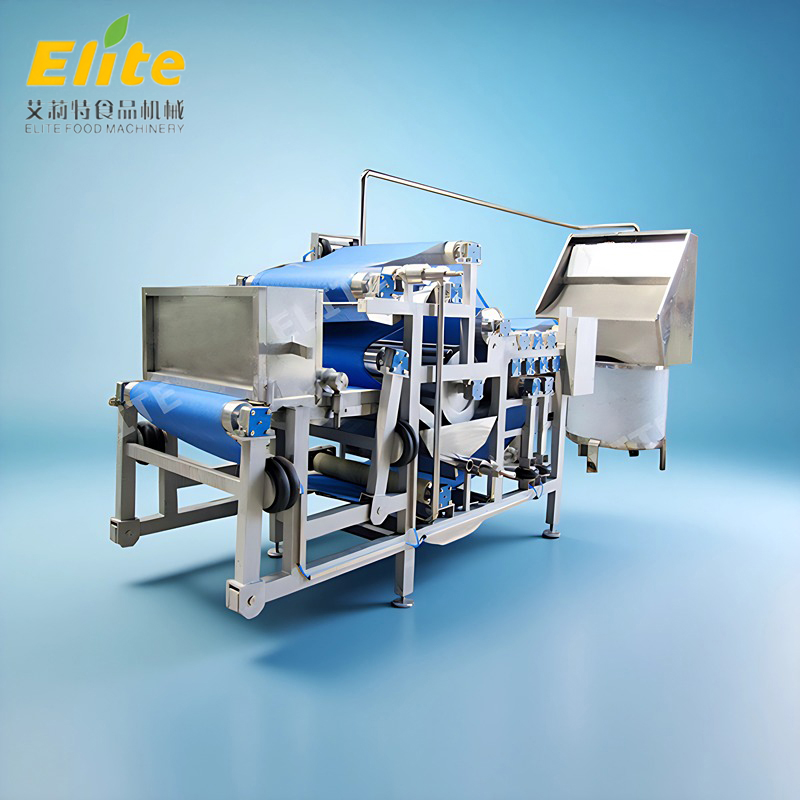

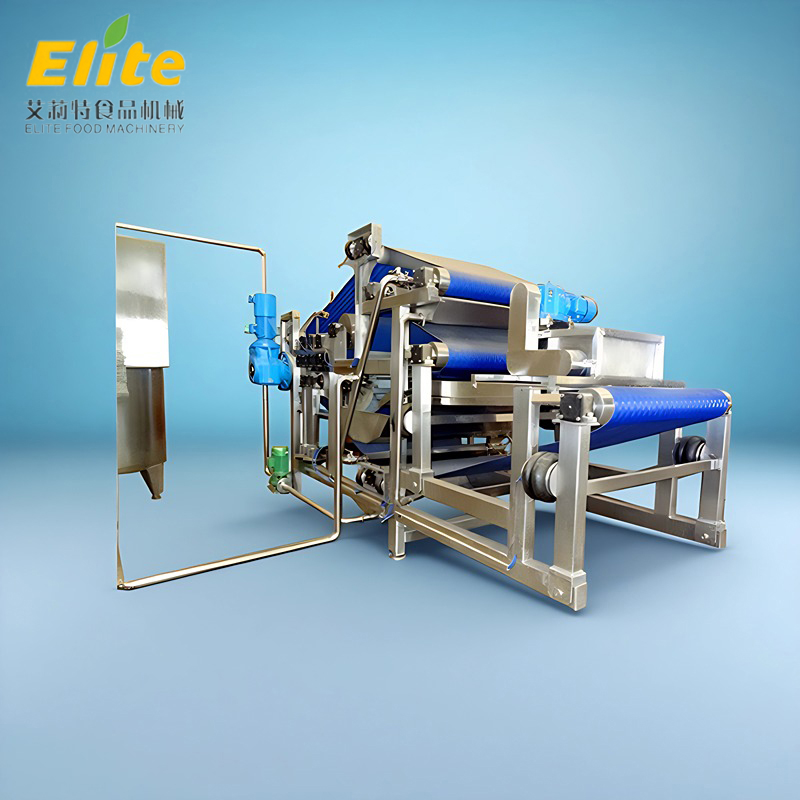

Belt Juicer

We're professional belt juicer manufacturers and suppliers in China, to buy or wholesale belt juicer machine from our factory. For quotation or if you have any questions, contact us now for customized belt juicing machine and price.

Purpose

1. This machine is the belt juicer of our company, which is digested and absorbed by the most advanced German “Flottweg” company in the world. It has been carefully developed and is an efficient extraction equipment. It is the key equipment related to the juice yield in the production of fruit juice and vegetable juice。

2. It can be widely used in the juice industry of berries, nuts and various vegetables. The equipment adopts multi-stage bending rod and multi-stage pneumatic roller to press, which has large pressing force and high juice yield.

3. At the same time, it has the characteristics of high energy-saving automation, automatic feeding and discharging, continuous operation, strong universality, full pressure filtration, low water content filtration of filter cake, convenient operation and maintenance, etc. it is a kind of juicing equipment with high juice yield.

4. Using this equipment can increase the juice yield by 20-30% and 70-75% (depending on the raw materials), greatly reduce the production cost and improve the economic benefits of the enterprise.

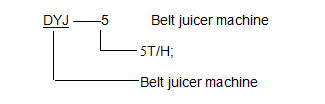

Technical parameters

Our company reserves the right to interpret the above technical parameters

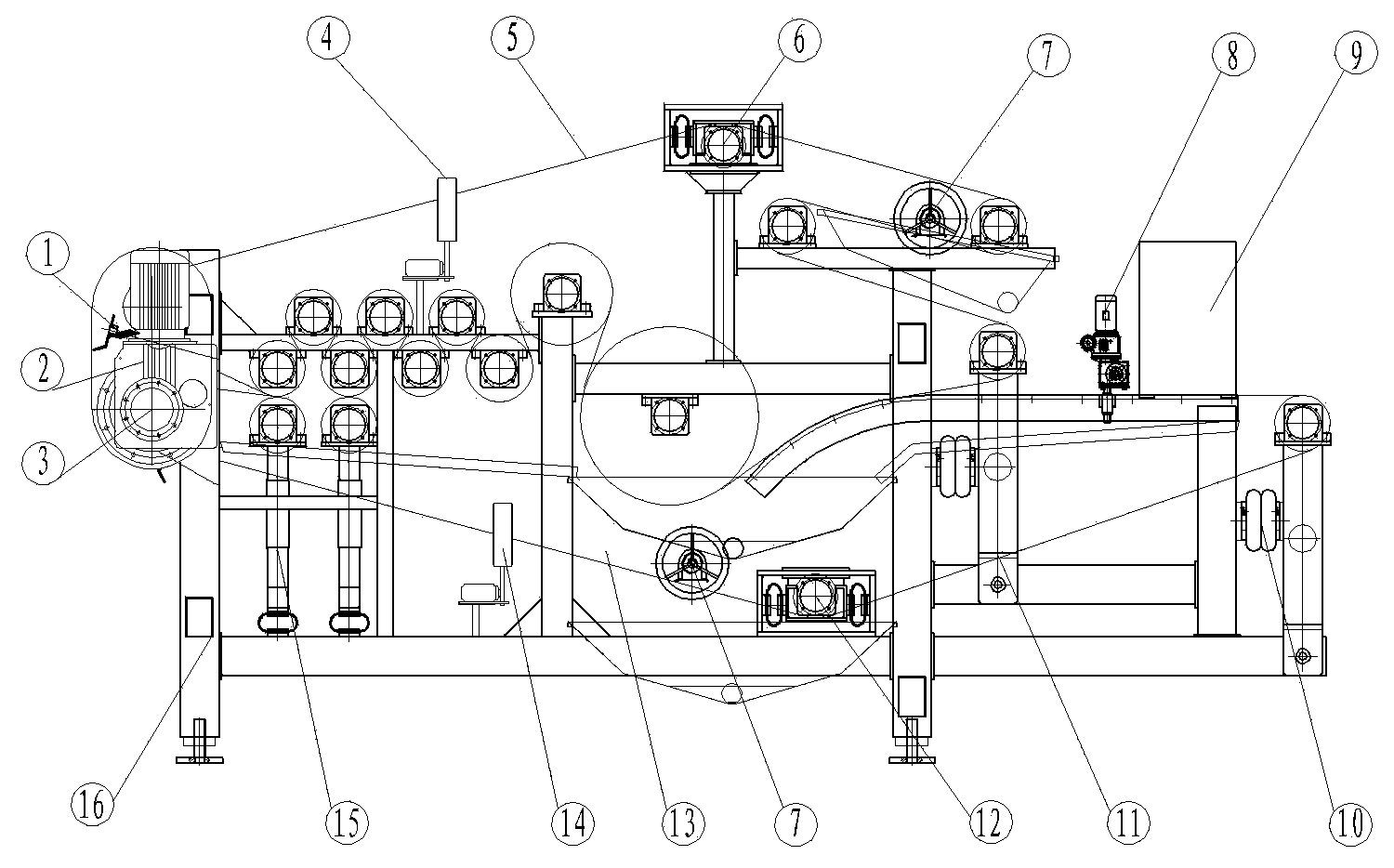

Main structure principle

1. During operation, the refined raw materials (solid-liquid mixture) are continuously fed into the hopper by a screw pump (the material takes up an adjustable bandwidth), and the inner and outer two ring-shaped filter belts are driven by the driving roller and evenly distributed by the pressing roller.

2. In the wedge-shaped area of the lower bend, the inner and outer filter belts move according to their respective circuits, and bypass a number of press rollers with different diameters, a large amount of water is slowly pressed out, forming a rate cake that can be pressed.

3. In the pressing area, a pressing roller with an "L" type strip will press out the water and ensure that the water is pressed out from both sides.

4.After that, the diameter of the pressing roller decreased, and the filter belt was in the "s" shape, resulting in the increasing shear force of the surface pressure.

5.Under the tension of the filter belt, the outer filter belt produces pressure on the material to squeeze out the juice in the material. As the diameter of the pressing roller decreases gradually, the pressure on the material between the filter belts increases gradually, and the juice is discharged continuously.

6.In order to ensure the best dewatering effect, then the material bypasses the driving roller. Under the last two-stage pressing roller, there are two-stage rubber lined pressing rollers with different pressure to automatically pressurize the filter belt, further discharge the juice in the material and improve the juice yield

7.After the internal and external filter belts are separated, the dehydrated filter cake (fruit residue) on the working surface of the internal and external filter belts is scraped off by a wear-resistant material scraping device. (in order to improve the scraping effect and facilitate the cleaning of the pressing belt, the user can choose to add a brush to brush the residue further). Finally, our company introduces the foreign high-pressure solid cone convex nozzle to form a fan-shaped cross, and the flow rate is 4140 L / min when the pressure is greater than 1MPa In order to maintain the high pressure effect.

8.In the process of pressing, the upper and lower filter belts are equipped with a guide roller and a pneumatic valve for deviation correction, which can automatically correct the deviation of the filter belt through the push of the rubber air springs on both sides.
