We're professional colloid mill machine manufacturers and suppliers in China, to buy or wholesale colloid mill from our factory. For quotation or if you have any questions, contact us now for customized vertical colloid mill and price.
The colloid mill is a kind of new-style wet amicron processing equipment which is applicable to homogenizing, emulsification, dispersing, blending, pulverization, grinding of various emulsions. They are widely applied to such industries as foodstuff (jam, syrup, protein, dairy product, beverage and etc.), pharmacy (various syrups, nutrient solution, prepared Chinese medicine, poultice and etc.),daily necessities (toothpaste, cosmetic, scour and etc.), chemical products (pigment, dyestuff, dope, lubricating oil, petroleum activator and etc.) and asphaltum emulsification, coal medicament floatation, dynamite emulsification and so on.
Model | L5 | L80 | L100 | L100F | L140 | L140F | ||||
Emulsification fineness ( circulation ) | <2 um | |||||||||
Pulverization fineness | <50 Hm or <300 mesh | |||||||||
Adjustable range mm | 1-0.01 | 1-0.01 | 1-0.01 | 1-0.01 | ||||||
Output th | 0.01-0.05 | 0.3-1 | 0.5-3 | 0.5-4 | ||||||
electromotor | Power KW | 1.1 | 3 | 5.5 | 7.5 | 7.5 | 11 | |||
Voltage V | 380 | 380 | 380 | 380 | ||||||
Rotary speed r/min | 2900 | 2900 | 2900 | 2900 | ||||||
Diameter of grinding section mm | Φ50 | Φ80 | Φ100 | Φ140 | ||||||
Diameter of discharge hole (inch) | Φ5/8” | Φ1” | Φ1” | Φ1½” | ||||||
Diameter of charge hole ( inch) | Φ1¼” | Φ2” | Φ2½” | Φ2½” | Φ3” | |||||
Cooling water pipe diameter ( inch) | Φ1/8” | Φ¼” | Φ¼” | Φ¼” | ||||||
External dimension | Length mm | 420 | 560 | 560 | 715 | 600 | 870 | |||
Width mm | 280 | 350 | 420 | 380 | 450 | 440 | ||||
Height mm | 700 | 860 | 950 | 650 | 1000 | 850 | ||||
Weight Kg | 50 | 100 | 150 | 240 | 180 | 400 | ||||
Basic operating principle of this machine is to perform function of cutting, grinding and high-speed blending. Pulverization can be possible by relative motion of two dentiform surfaces, one of which rotates at high speed with another one being at rest. This process brings great cutting and friction force to materials that pass through between two dentiform surfaces. And at one time the materials can be effectively dispersed, emulsified, pulverized and homogenized under the effect of complicated forces like high-frequency shock and high-speed vortex.

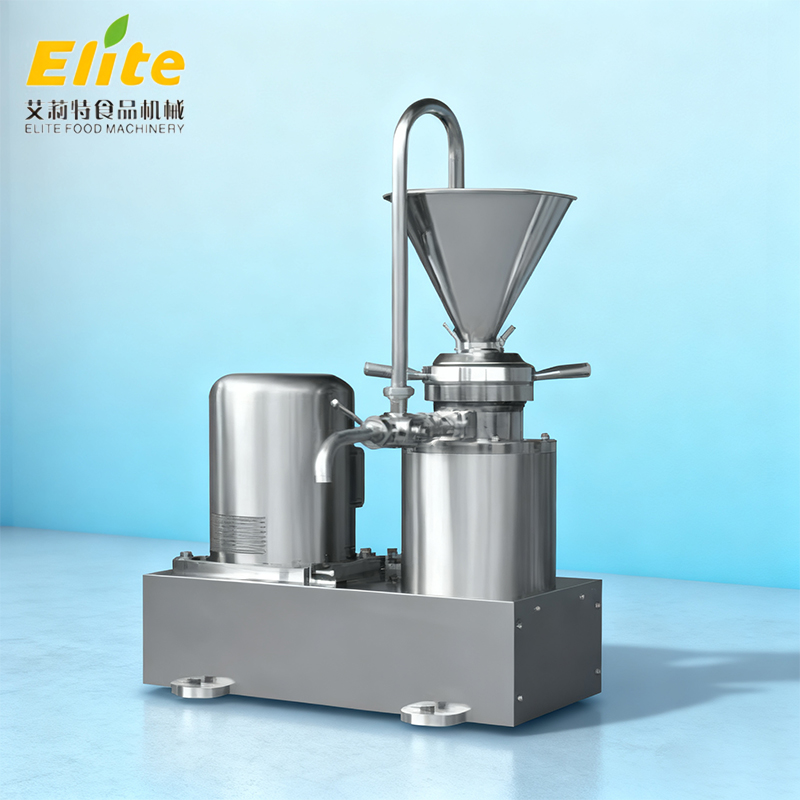

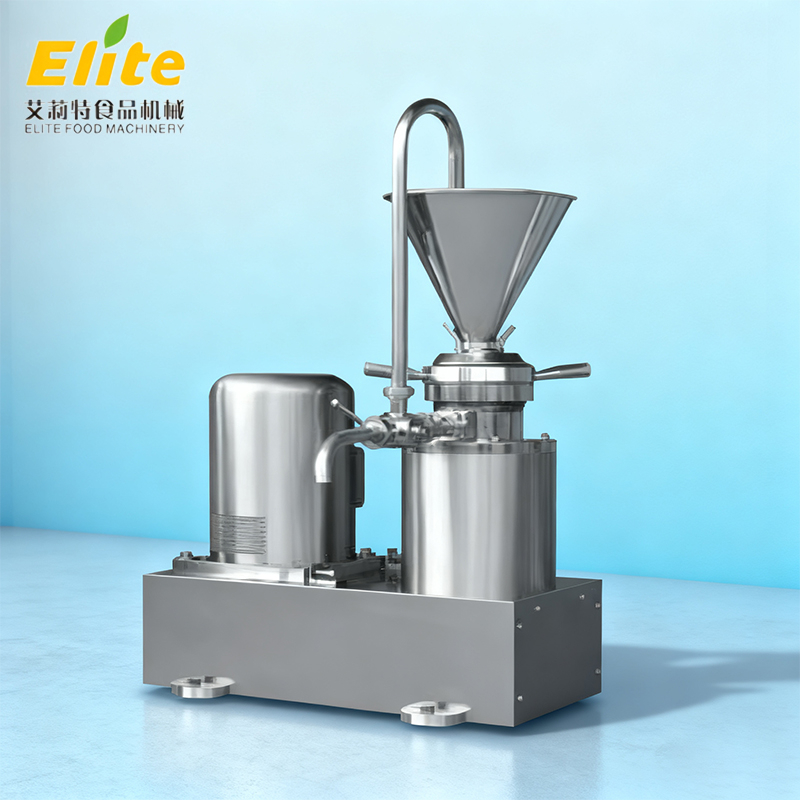

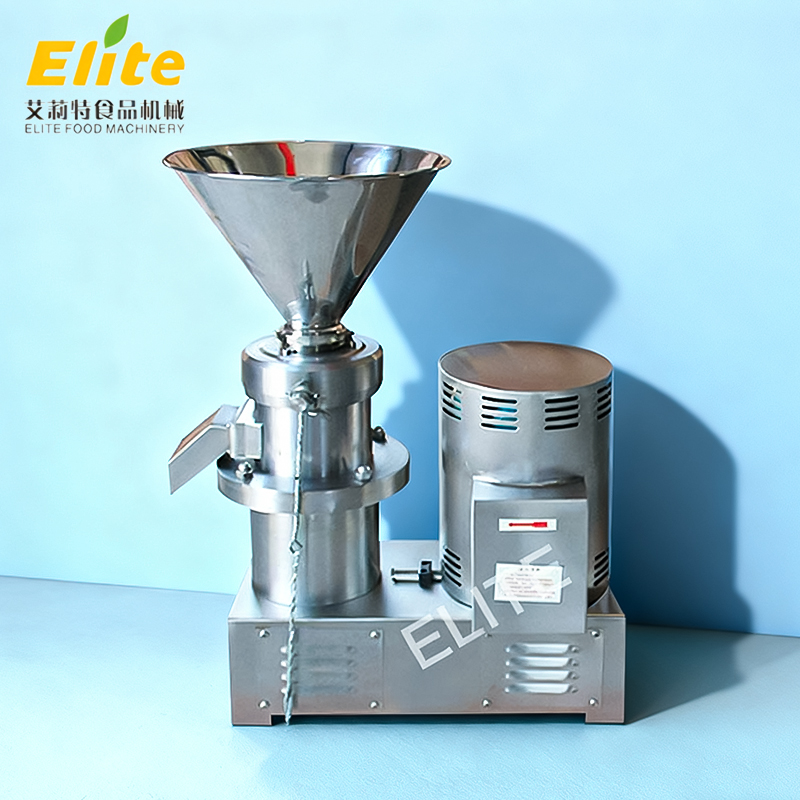

JM--L Colloid Mill Series are made up of wheel head components, pedestal driving components and electromotor with characteristics of simple structure, small volume, light weight and convenient operation. Components that touch materials are all made of high quality stainless steel. Immobile and mobile grinding sections are the key components of this machine. The dentation of grinding section differs according to character of materials to be disposed. But stainless tool steel is selected as its raw material. Electromotor is specially designed according to colloid mill requirements. Water-retaining tray is installed above flanged cover of electromotor to avoid leakage. See diagram 1 for connected structure and diagram 2 for separated structure.
