We're professional double channel pulping machine manufacturers and suppliers in China, to buy or wholesale coring pulping machine from our factory. For quotation or if you have any questions, contact us now for customized double channel fruit pulping machine and price.

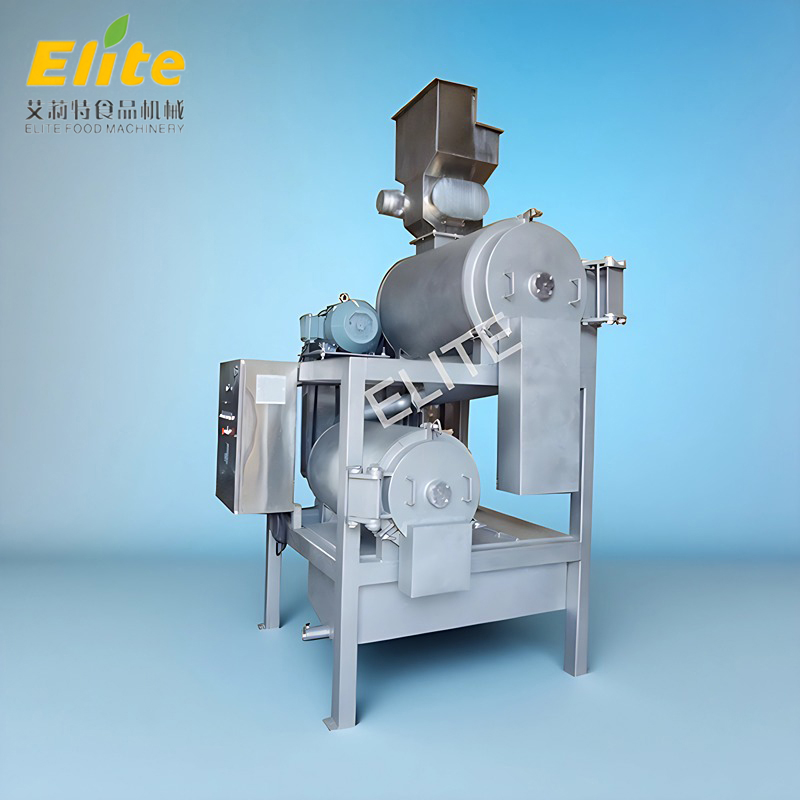

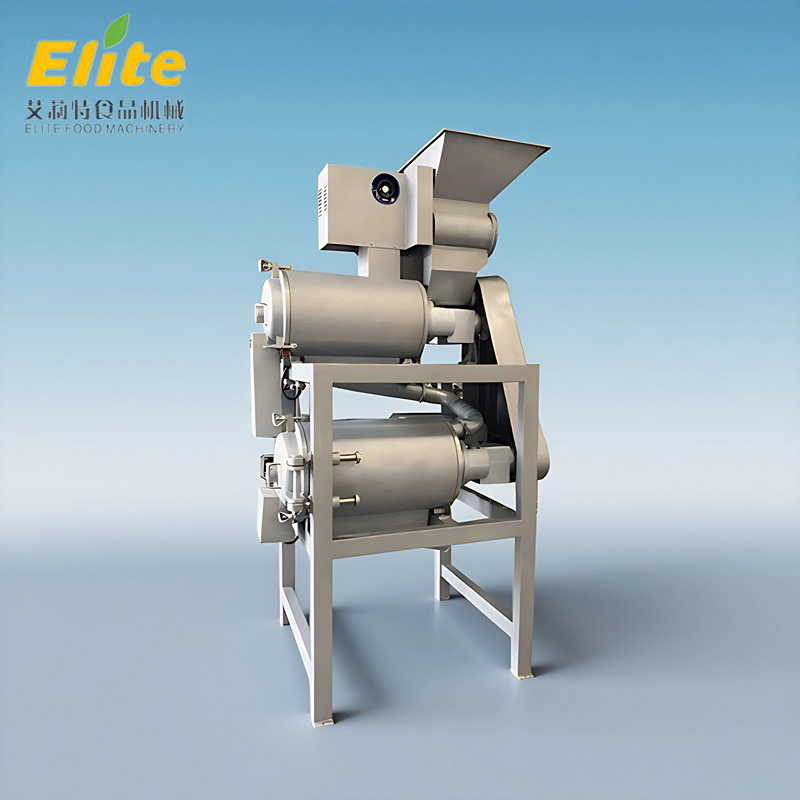

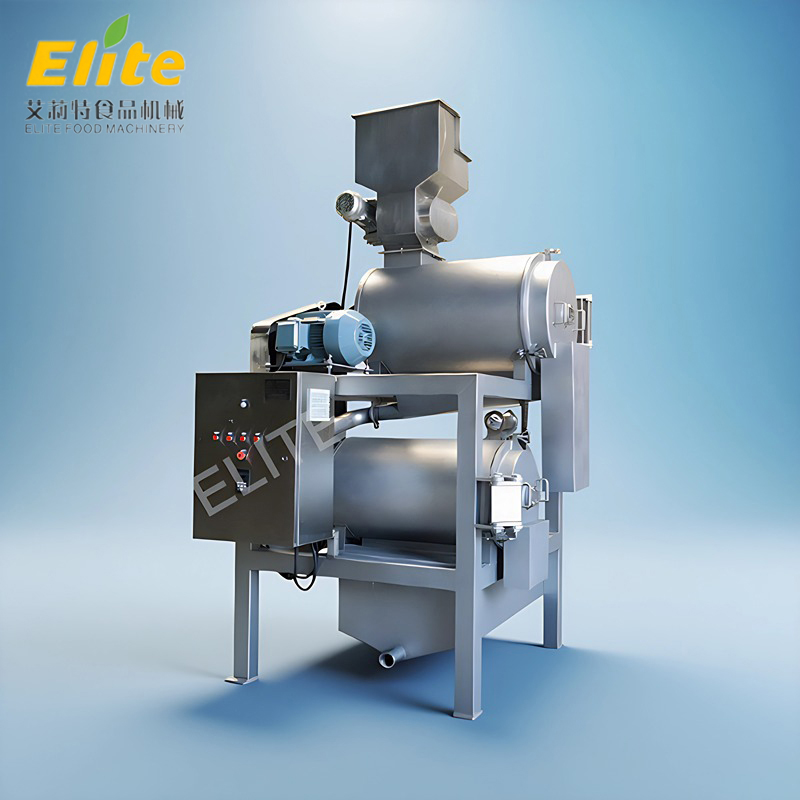

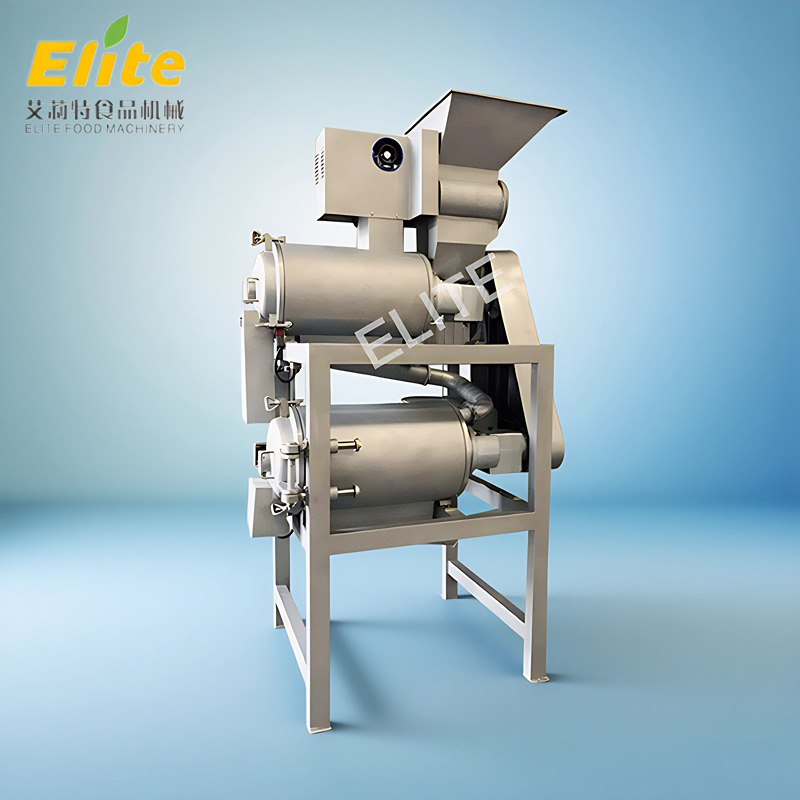

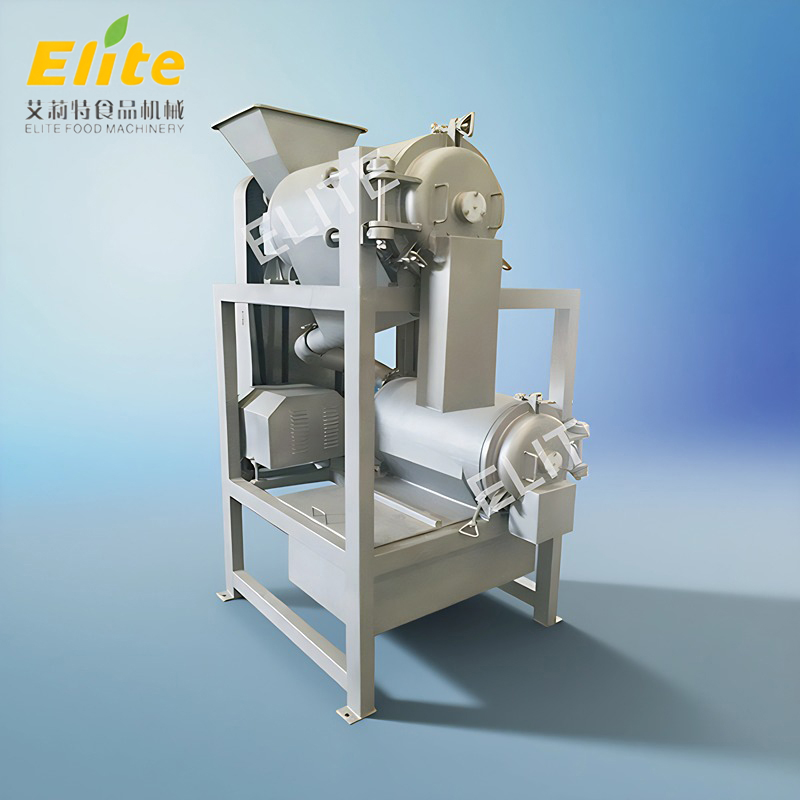

MDJ Double-channel core removing pulping machine
The equipment is mainly suitable for pre-cooked or mature berries and stone fruits for pulping. First channel is for core removing and the second channel is for pulping. The mesh of first channel is determined by the size of fruit core.
DJ type multi-purpose vegetable beater is applicable to a variety of fresh fruits and vegetables by beating separation.Fruit, such as: orange , grapes, kiwi fruit, mulberry fruit, red bayberry, hawthorn, peach (to core), can making juice; nuts, seeds, thin skinned separation out, also can vegetables (off), tomato, pepper, celery (off), vegetable juice, to isolate the vegetable bars, is the ideal machine for making jam, fruit juice, vegetable juice, as the important equipment of food processing enterprises.
Model | Capacity(t/h) | Matched power(kw) | Dimension(mm) |
MDJ1-2.5 | 1-2.5 | 4 | 1450×820x1580 |
MDJ2-4 | 2-4 | 7.5 | 1510x1370x1700 |
MDJ2-7.5 | 4-7.5 | 18.5 | 1930×1540x1950 |
Fruits and vegetables in the cylinder with the beating plate rotation, extrusion, scraping and the crushing the fruits and vegetables.,The machine forms for single channel, slag slurry automatic separation.
DJ: Motor through the belt drive, the installation on the spline of the scraper to rotate at a high speed, when after crushing fruit through the feed port into the machine, pulp tray is put uniform material discharge scraper and the screen.Due to the effect of rotation of the scraper and the existence of the lead angle，make the material move along the cylinder to the outlet, the moving track of spiraling，the material will in the scraper and sieve tube between the mobile process by the action of centrifugal force and abrasion, juice, and meat into slurry) from the sieve through into the next procedure.As long as the different specifications of the mesh screen and adjust the size of the scraper lead Angle, it can change different beating speed, to obtain satisfactory results.
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about double channel pulping machine, coring pulping machine, double channel fruit pulping machine, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
