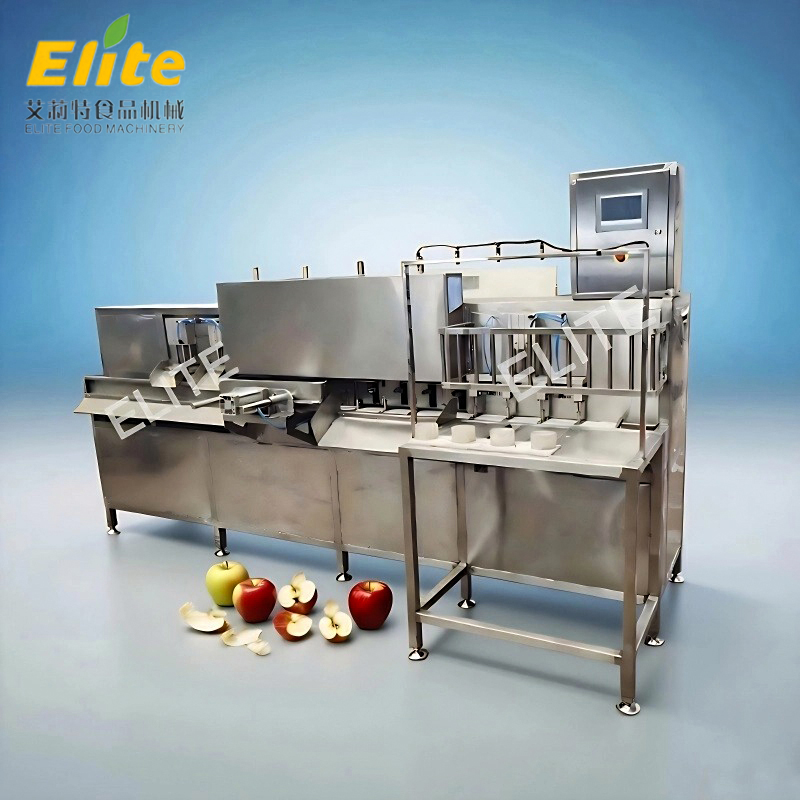

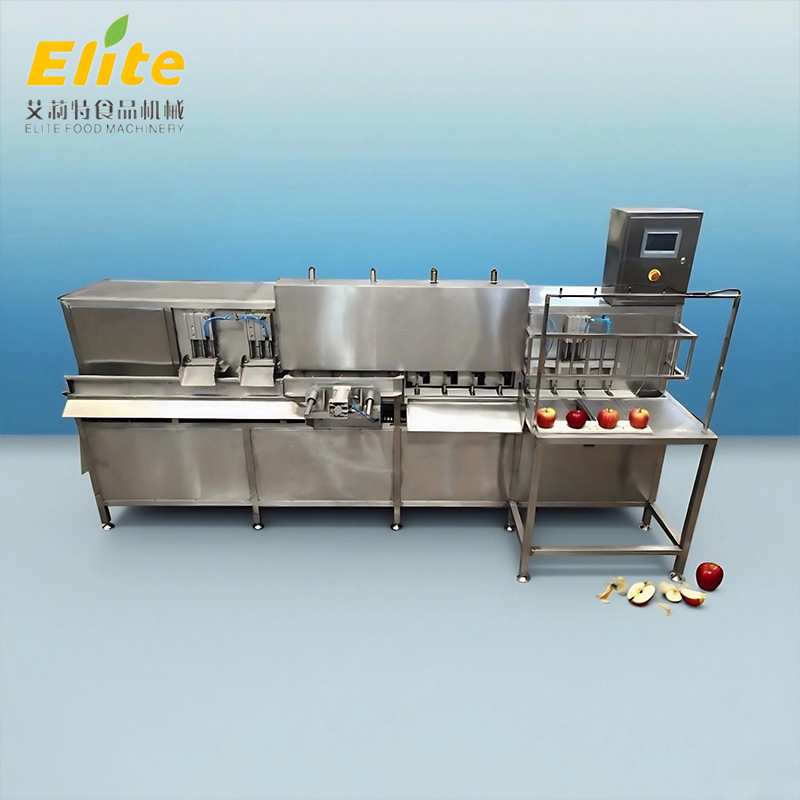

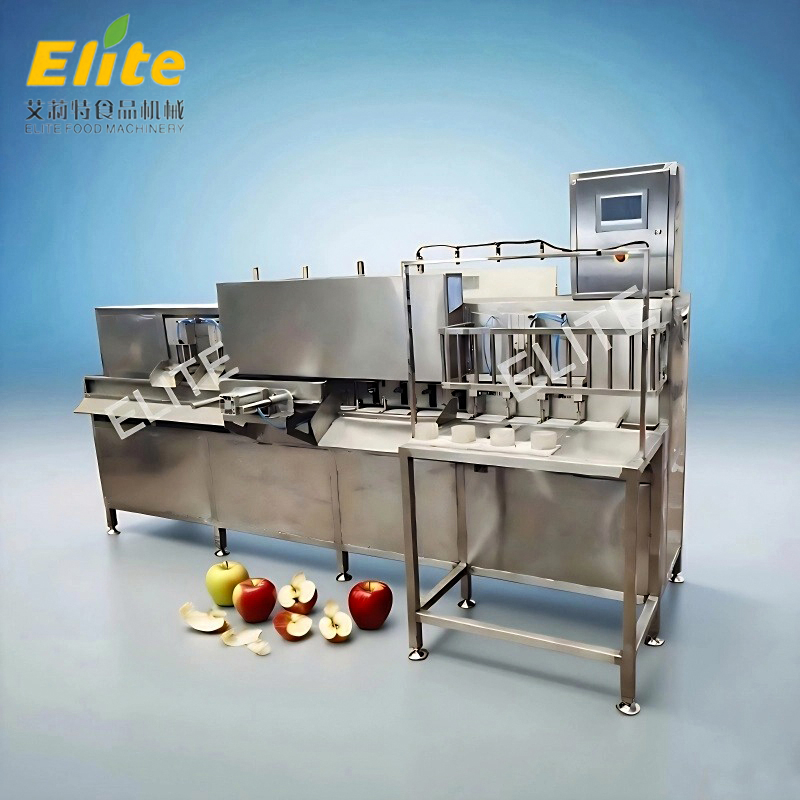

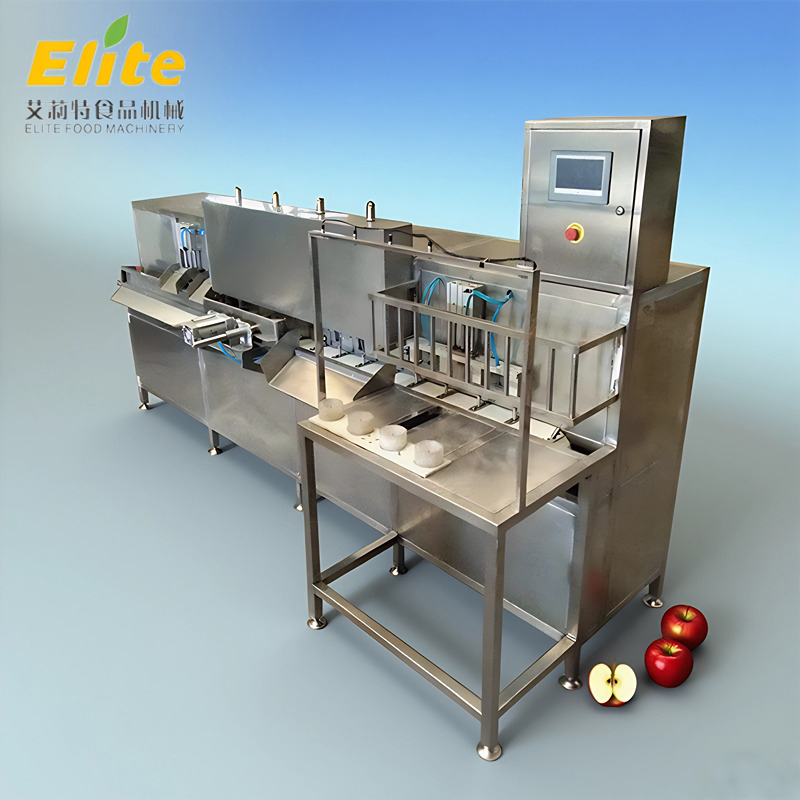

XPJ Apple peeling / slicing / core removing machine

The fruit peeler machine based on mechanical principle is controlled by PLC. It can complete many actions, such as positioning, peeling, cutting ring , removing corer and cutting disc, etc.

The cutting knife can automatically adhere to the changes in the shape of the fruit, and the thickness of the peel can be adjusted,so the peel loss is less and the pulp utilization ratio is high.

Set the parameters and any action on the touch screen, put the fruit (fruit handle upward) into the bowl of the four workplaces, and automatically position the multiple actions of automatic peeling, cutting ring, removing core and cutting disc etc.

It can be used for apples, pears, oranges, kiwifruit and so on. The peeling machine is necessary for processing canned fruit,dried fruit, fruit powder, jam, fruit cake and juice processing plants.  Compared with traditional artificial peeling, it has the advantages of high efficiency, uniform thickness, less fruit loss, stable quality and safety and hygiene.

Technical parameters

Suitable fruit diameter: 60mm to 100mm;

Peling capacity: 2400-3600 per hour (depending on fruit diameter and feeding speed);

Powerallocation: 1.67KW. Voltage 110V-430V, 50-60Hz;

Numbar of work places: four;

Cutting thickness: ≥5mm (according to user requirements);

Nucleus diameter: 19mm;

Number of vales: 0 vales, 2 valves, 3 valvas, 4 valves and 6 vales (acording to user's requrements)

Compressed ai is neded: consumption is 0.3m/min, presure is less than 0.7Mpa.

Shape size: 2840×1070×1900mm (final according to actual);

Main structure principle

It is mainly composed of rack, discharging mechanism, conveying mechanism, positioning mechanism, peeling mechanism,cutting ring mechanism, checking and cutting valve mechanism and control mechanism.

The peeling machine can be programmed and controlled by PLC of servo pulse speed adjusting positioning device, and completes multiple combined actions or single actions such as positioning, peeling, cutting ring ,removing core ,cutting disc and so on.

Manually put the fruit (fruit handle upward) into the bowl of the four workplaces,then the feed bowl is sent to the location of the positioning mechanism;The material is put into the chain plate conveyor needle by the positioning mechanism triangle needle, into the peeling mechanism structure; After the material skin is finished,the fruit is cut to about 16mm by the ring cutting mechanism;Finally enter the removing core and cutting disc mechanism, the fruit from the conveyor to the discharge port to the next process.

It can set peeling or not peeling program, cutting-ring or  no-cutting-ring program in touch screen according to user's request.

Main Features

1.Complete multiple joint actions or single actions such as positioning, peeling, cutting ring ,removing core and cutting disc;

2.The whole process only needs one person to operate and improve work efficiency.

3.The height and thickness of peeling can be adjusted;

4.You can choose to removing core or no, cut disc or not cut , and the number of cuts as required by the user,Just change the mold.

5.The equipment has the characteristics of simple operation, simple adjustment, good stability and high efficiency.

6.The whole process can be controlled by servo pulse speed control, PLC programming and touch screen setting.
