Orange Juice Industrial Machine

We're professional orange juice industrial machine manufacturers and suppliers in China, to buy or wholesale half Orange juicer from our factory. For quotation or if you have any questions, contact us now for customized industrial orange juicer and price.

Introduction & Application

The machine adopts roller extruding forcedly presses to extract juice.

This machine is suitable for kumquat, lemon, gruel, orange, pineapple, ginger, passion fruit, dragon fruit, mangosteen, citrus and so on for extracting the juice . The fruit does not need to be peeled and need no grading.

Equipment structure and working principle

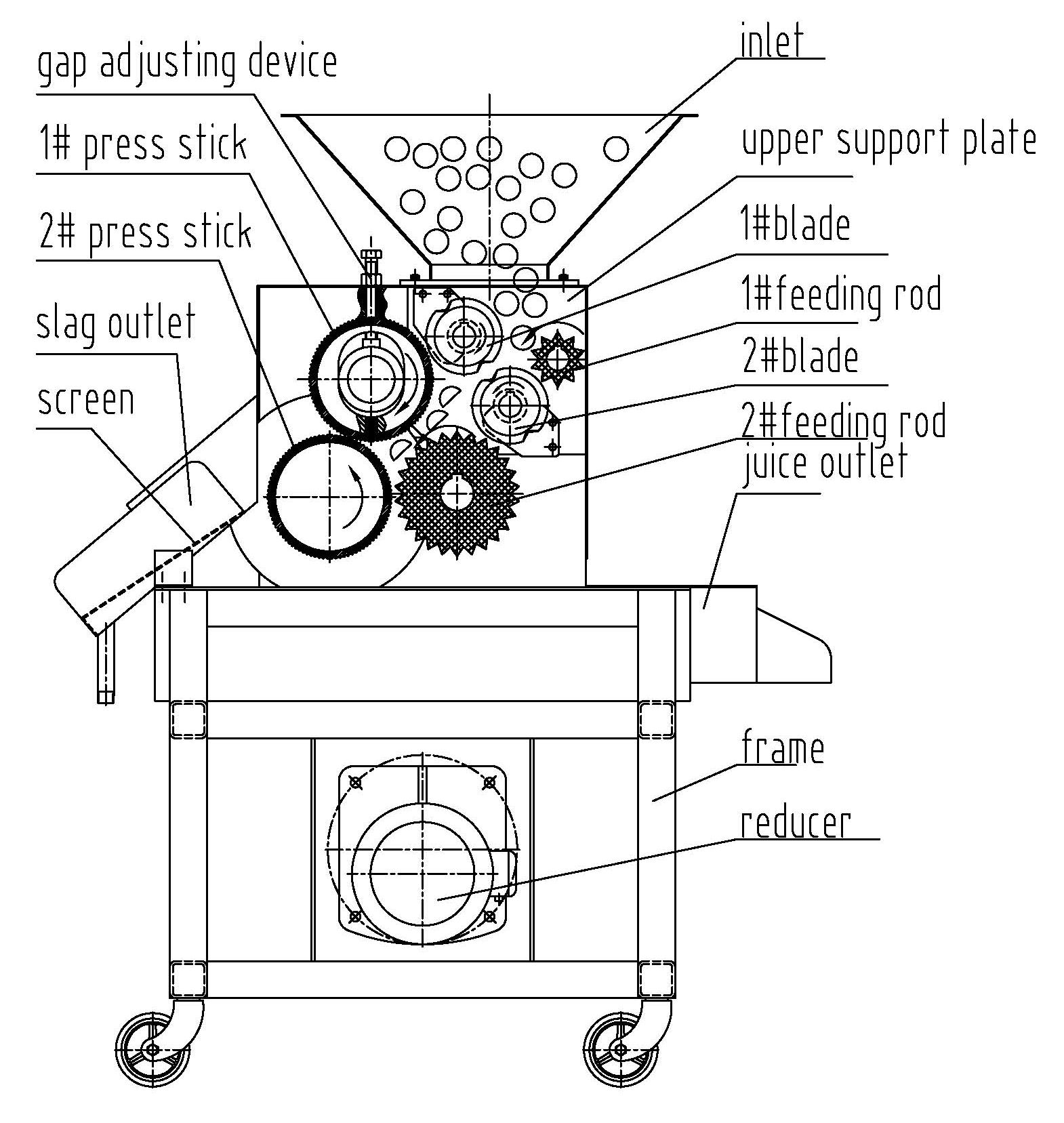

 This machine is made of frame、reducer、inlet、two sets of blades, two sets of feed roller, two groups of press roller , the juice outlet, slag outlet and other components. the main working principle: turn on the power, the material into the hopper, 1 # feed roller auxiliary feed, 1 # and 2 # two blade slices of fruit, and then 2 # feed roller put the fruit into1 # press roll and 2 # press roll to extract the juice.（1 # press roller can be adjusted up and down by the gap device to control the amount of fruit juice），Juice and part of the pulp from the juice outlet discharge, peel and slag from the hopper discharge, so as to achieve the purpose of juice. The equipment is made of all stainless steel except the transmission parts.

Main specification

Orange juice industrial machine Manufacturer

Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...

If you have any questions about orange juice industrial machine, half Orange juicer, industrial orange juicer,orange juice industrial machine,industrial orange juice maker, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
