We're professional stainless steel belt elevator manufacturers and suppliers in China, to buy or wholesale plate elevator conveyor from our factory. For quotation or if you have any questions, contact us now for customized chain plate elevator conveyor and price.

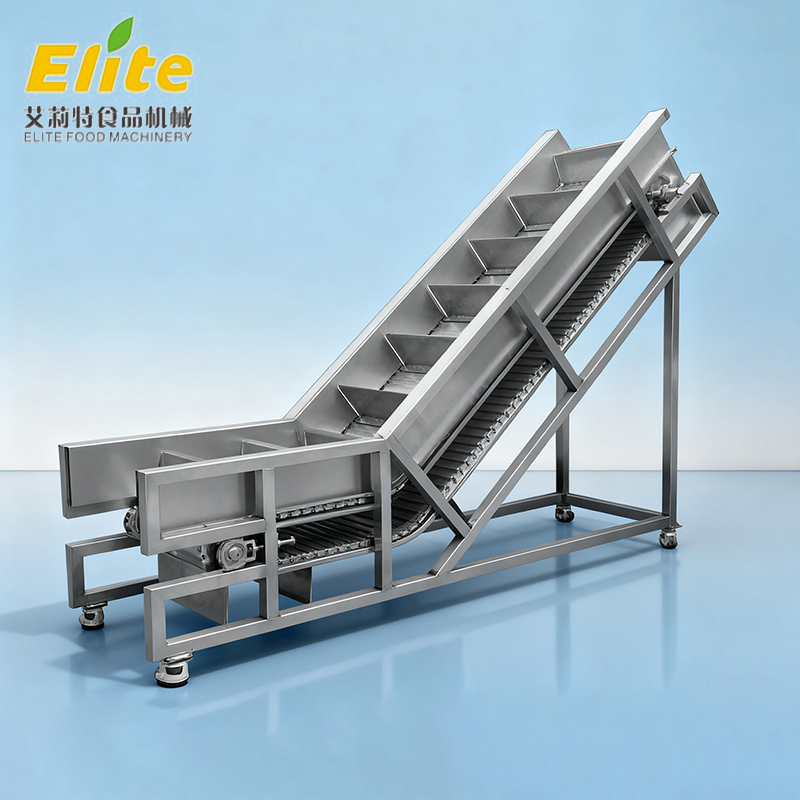

The equipment takes stainless steel chain plate as carrier, which can transport various light and heavy materials continuously or indirectly. It can transport all kinds of granular materials, blocks, load-bearing materials, etc. It has long service life, low noise, stable operation, etc. features, can be widely used in food, pharmaceutical, chemical, metallurgy, construction and other industries for conveying and lifting.

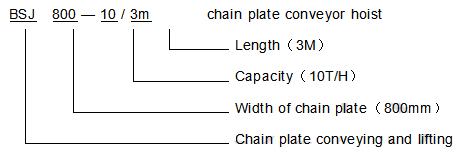

Model description

Main technical parameters
Structure type | Horizontal transport | Tilt lift | Vertical lift | Horizontal + tilt | L-type conveyor lift | Z-type conveyor lift |
Chain plate width | 400mm | 500mm | 600mm | 800mm | 1000mm | 1200mm |
Chain pitch | 25.4mm | 31.75mm、 | 38.1mm、 | 50.8mm | 63.5mm | 76.2mm |
Scraper height | 25mm | 50mm | 75mm | 100mm | 125mm | 150mm |
Description: ①design processing capacity 0.5T / h -50T / h; ② structure according to working conditions and material characteristics;③chain plate width can be determined according to material characteristics, capacity and working conditions; ④Chain pitch and scraper height, depending on material characteristics and load carrying capacity; ⑤ the power depends on the load, capacity and length of the equipment; ⑥the overall dimensions are subject to actual conditions;
Structure
The device is composed of a wall plate (rack), a main driven transmission device, a reducer, a conveyor belt, a tensioning device, an adjustment leg, a feeding hopper, a discharge hopper,etc.
Working principle
The material enters the stainless steel chain plate conveyor from the feeding hopper. Under the chain drive of the conveyor belt driven by the transmission reducer, the material is slowly transported forward by the chain conveyor belt (scraper), chains on both sides are large ball and double pitch design,and anti-skid devices are provided on both sides to effectively extend the service life of the chain, the driven wheel is equipped with a tensioning device, and the legs are provided with a 0-50mm fine adjustment structure. The device is made of SUS304 stainless steel except the transmission reducer.
Stainless steel belt elevator Manufacturer
Elite Food Machinery focuses on providing high-quality pharmaceutical processing equipment for fruits and vegetables, and excellent service with years’ expertise. Elite Food Machinery provides you with wholesale, customization, OEM & ODM service...
If you have any questions about stainless steel belt elevator, plate elevator conveyor,chain plate elevator conveyor,stainless steel plate elevator conveyor,stainless steel chain elevator conveyor,please don't hesitate to contact us at any time. We will provide detailed information and technical support about the features, specifications, solutions and customization options of pharmaceutical processing equipment for fruits and vegetables... Welcome you to visit our factory!
